Kenmore 86774671 oil furnace Parts
Here are the diagrams and repair parts for Kenmore 86774671 oil furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 86774671 Oil Furnace

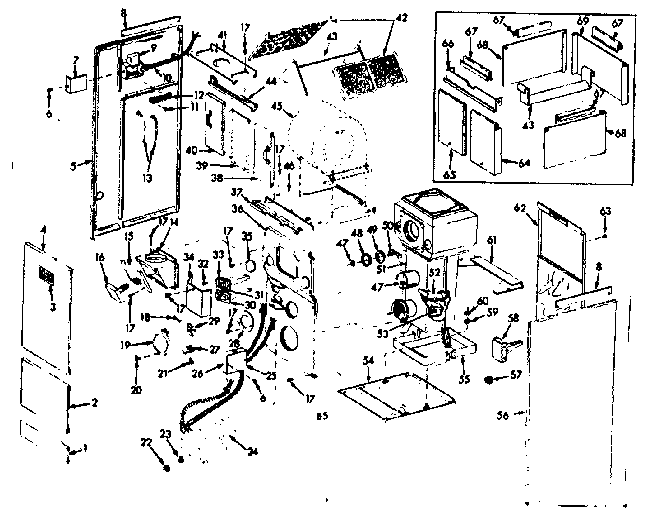

Furnace assemblies diagram
Limit Control
Part #82382
The manufacturer no longer makes this part, and there's no substitute part
Oil burner assembly diagram
Oil Pipe
Part #68072
The manufacturer no longer makes this part, and there's no substitute part
Furnace assemblies diagram
Air Filter
Part #65596
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #9233
The manufacturer no longer makes this part, and there's no substitute part
Furnace assemblies diagram
Door Hatch
Part #64467Replaced by #64467
Manufacturer substitutionThis part replaces 64467. Substitute parts can look different from the original.In Stock$268.21
Qty
H-q blower assembly diagram
Fan Wheel
Part #72978Replaced by #600587
Manufacturer substitutionThis part replaces 72978. Substitute parts can look different from the original.In Stock$171.637% OFF Phone Price : $183.63
QtyOil burner assembly diagram
Screw
Part #448445
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #9236
The manufacturer no longer makes this part, and there's no substitute part
H-q blower assembly diagram
Blower Motor
Part #74068Replaced by #45460
Manufacturer substitutionThis part replaces 74068. Substitute parts can look different from the original.In Stock$280.82QtyOil burner assembly diagram
Fuel Pump
Part #64554Replaced by #64554
Manufacturer substitutionThis part replaces 64554. Substitute parts can look different from the original.In Stock$66.51Qty
