Model # NOUF160B18B Official ICP furnace

Here are the diagrams and repair parts for Official ICP NOUF160B18B furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Exchanger B3078601
#1

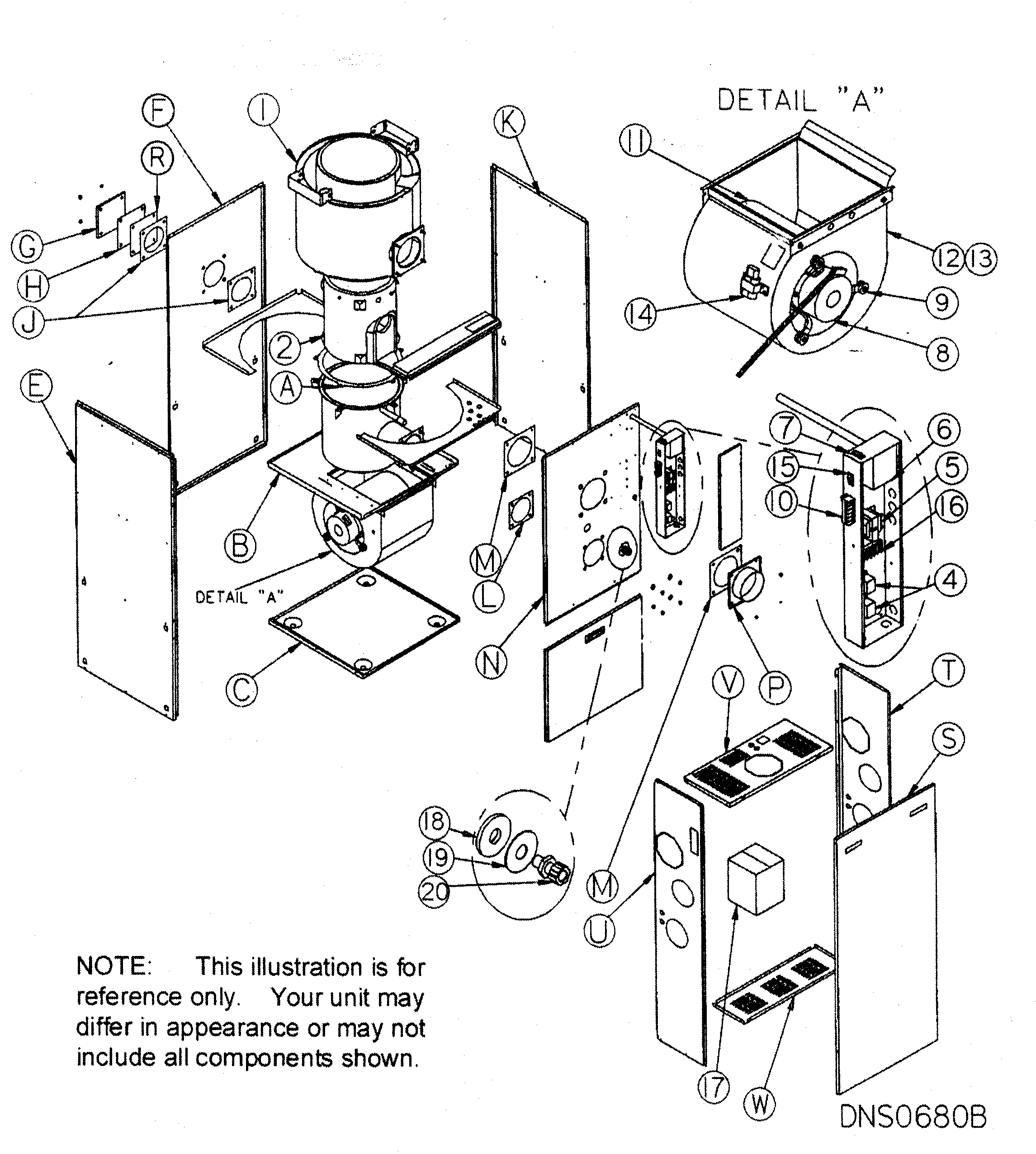

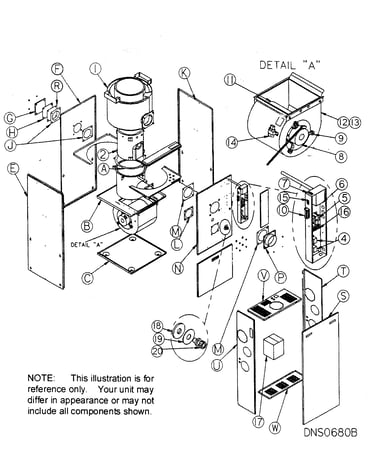

Cabinet parts diagram

Exchanger

Part #B3078601

$1833.54
In Stock
Mount B01889
#9

Cabinet parts diagram

Mount

Part #B01889

$137.16
In Stock
Transform K03040
#5

Cabinet parts diagram

Transform

Part #K03040

$182.35
In Stock
Gasket B3058901
#M

Cabinet parts diagram

Gasket

Part #B3058901

$28.22
In Stock
Relay L01H009
#4

Cabinet parts diagram

Relay

Part #L01H009

$55.78
In Stock
Furnace Blower Assembly B0216701
#13

Cabinet parts diagram

Furnace blower assembly

Part #B0216701

$810.49
In Stock
Gasket B30532
#A

Cabinet parts diagram

Gasket

Part #B30532

$92.33
In Stock
Capacitor L01I003
#14

Cabinet parts diagram

Capacitor

Part #L01I003

$28.69
In Stock
Reg. Draft Z06F001
#17

Cabinet parts diagram

Reg. draft

Part #Z06F001

$49.69
In Stock
Rocker Switch L07F003
#7

Cabinet parts diagram

Rocker switch

Part #L07F003

$12.66
In Stock
