Model # 18M33PBEH-P1215006R Official Amana 18000-btu room air conditioner

Here are the diagrams and repair parts for Official Amana 18M33PBEH-P1215006R 18000-btu room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

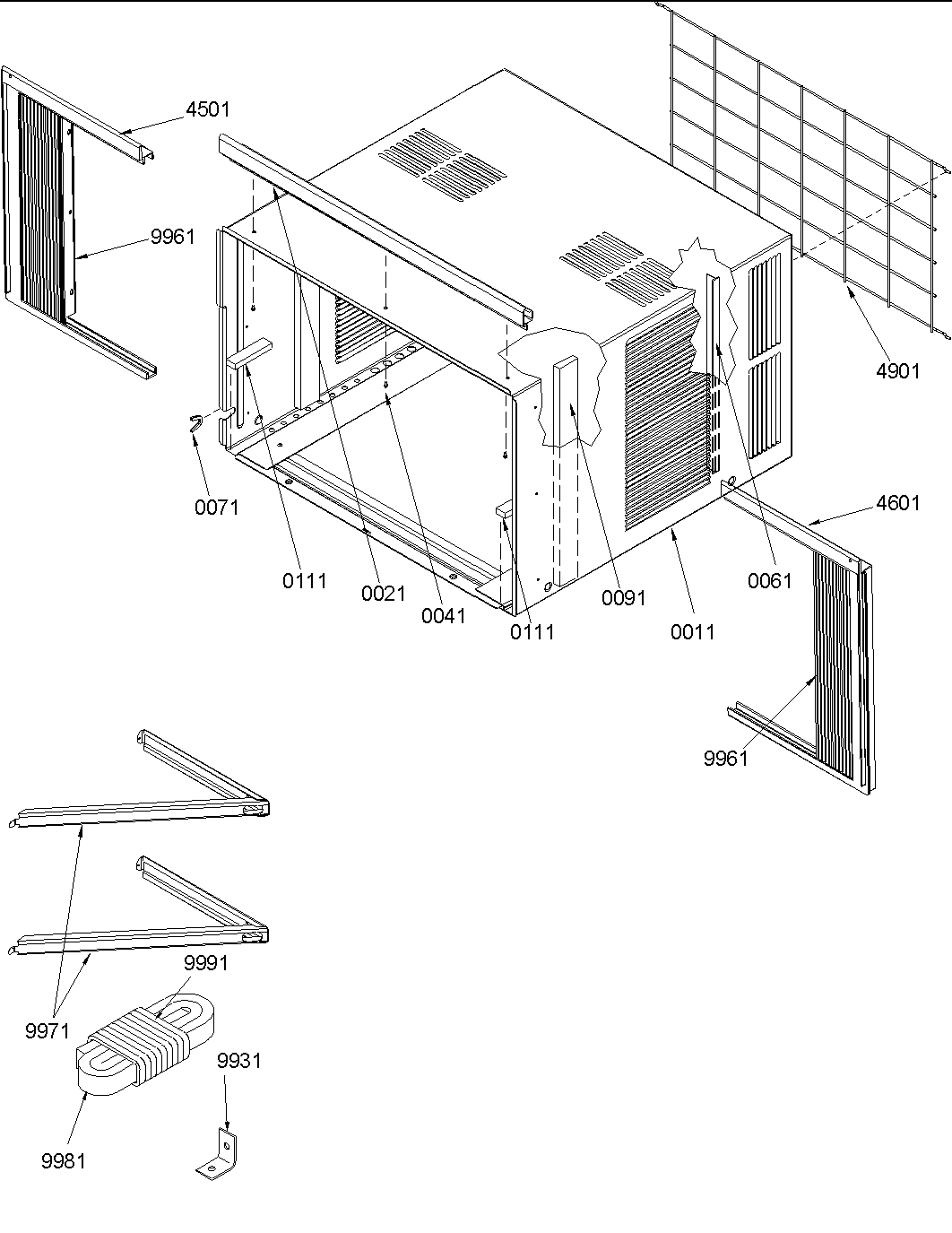

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Tie M0321202
#370

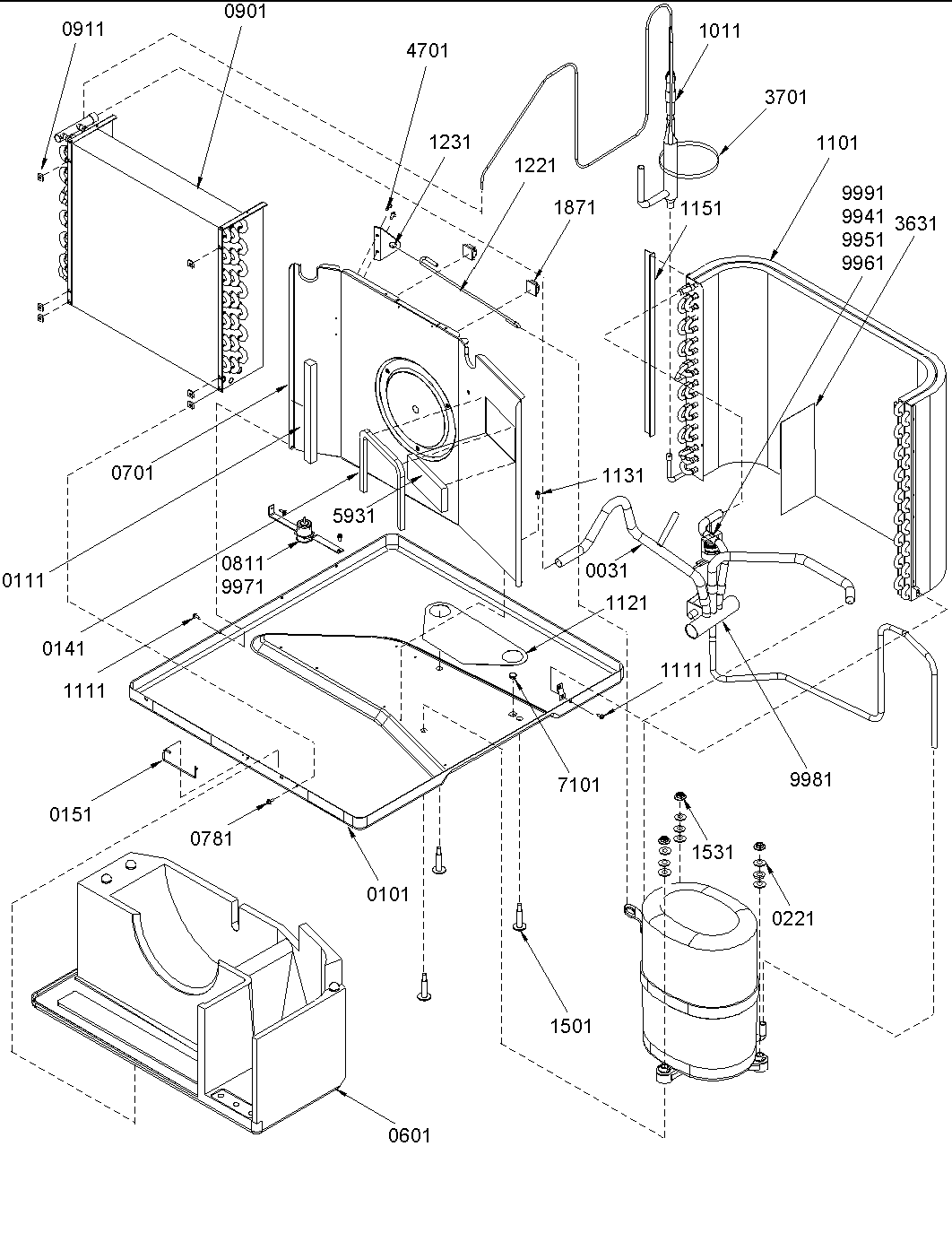

Chassis assembly 2 diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Strainer B1257808
#26

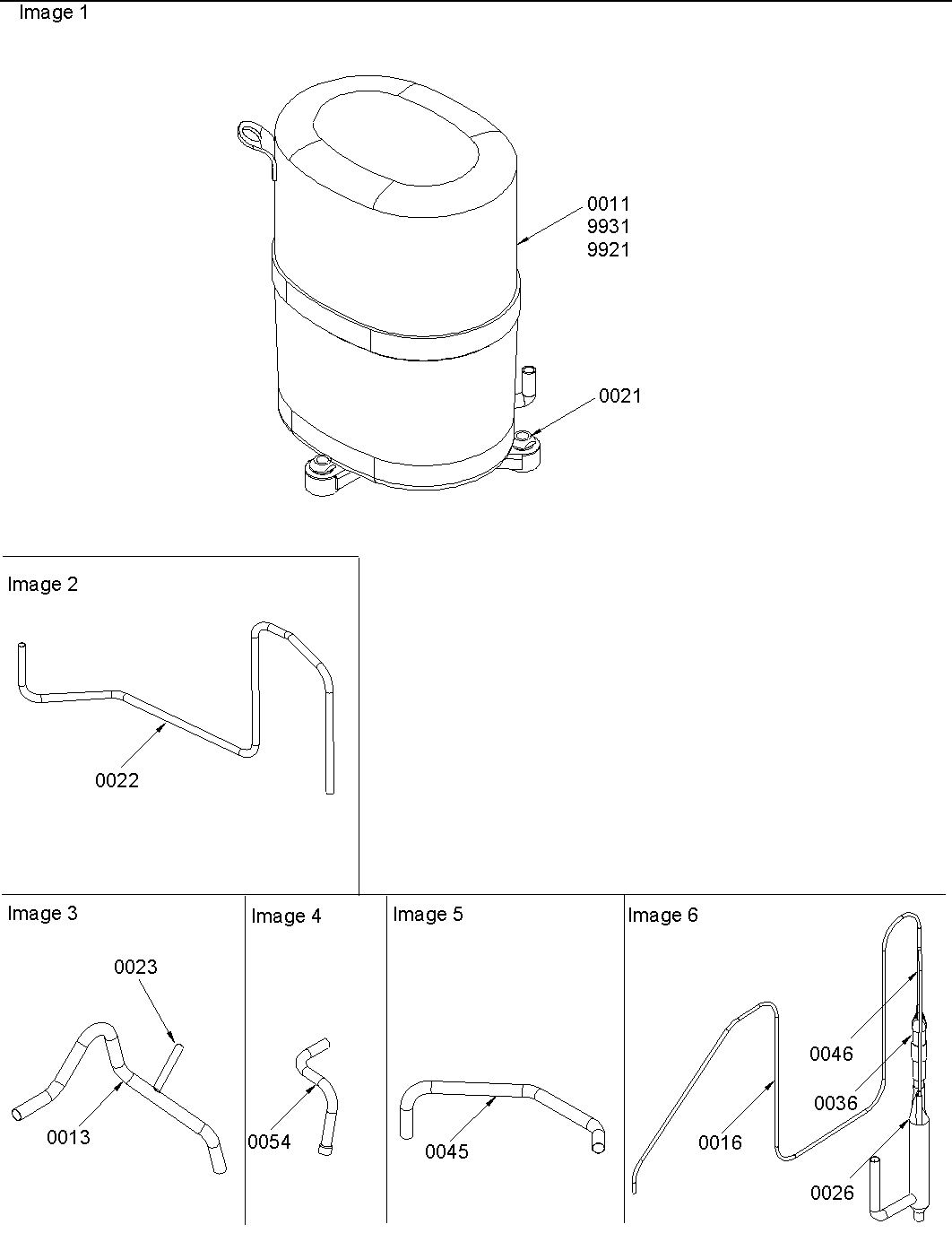

Compressor assembly diagram

Strainer

Part #B1257808

Replaced by #B1257808

?
Manufacturer substitution
This part replaces B1257808. Substitute parts can look different from the original.
$20.97
In Stock
Tap Screw M0224956
#238

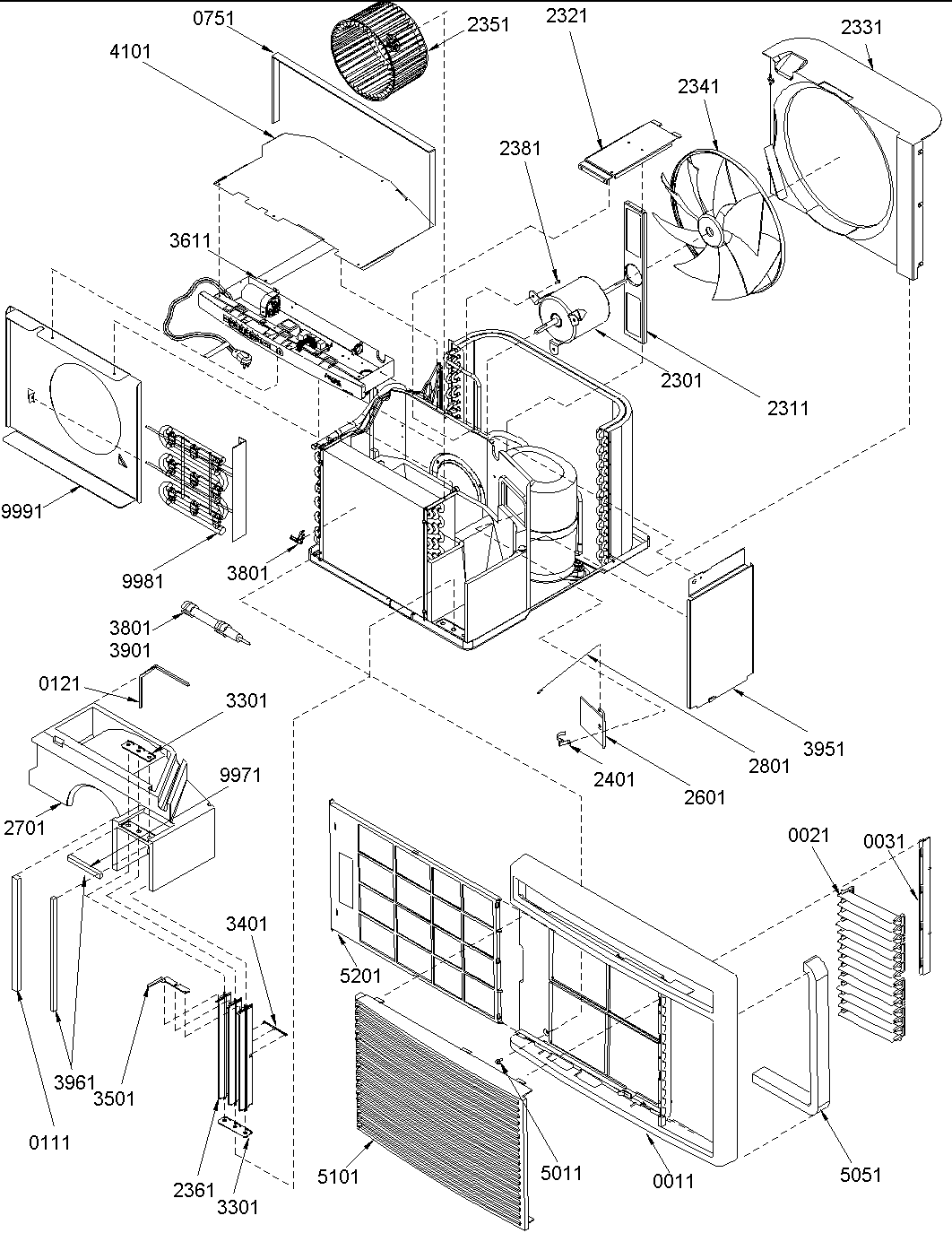

Chassis assembly 1 diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer M0274008
#221

Chassis assembly 2 diagram

Washer

Part #M0274008

The manufacturer no longer makes this part, and there's no substitute part

Grommet B1315401
#21

Compressor assembly diagram

Grommet

Part #B1315401

The manufacturer no longer makes this part, and there's no substitute part

Clip M0118702
#232

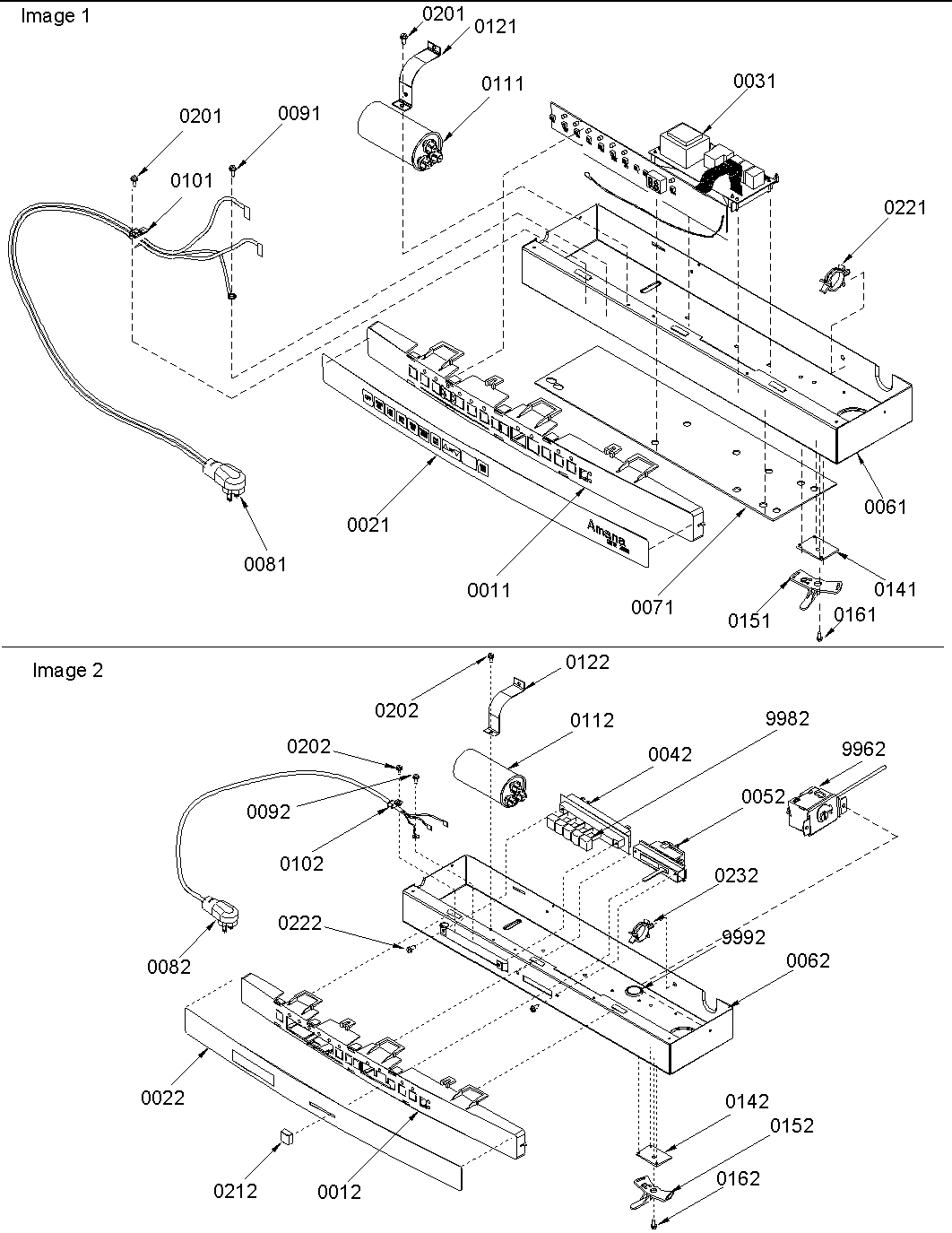

Control assembly diagram

Clip

Part #M0118702

The manufacturer no longer makes this part, and there's no substitute part

Strap C6300511
#122

Control assembly diagram

Strap

Part #C6300511

The manufacturer no longer makes this part, and there's no substitute part

Bar 20051404
#350

Chassis assembly 1 diagram

Bar

Part #20051404

The manufacturer no longer makes this part, and there's no substitute part

Insert 20052001
#510

Chassis assembly 1 diagram

Insert

Part #20052001

The manufacturer no longer makes this part, and there's no substitute part

Service Manual RS4100009
#2

Miscellaeous information diagram

Service manual

Part #RS4100009

The manufacturer no longer makes this part, and there's no substitute part
