Model # T8MPV125J20B1 Official ICP 90+ 2-stage & variable-speed blower gas furnace

Here are the diagrams and repair parts for Official ICP T8MPV125J20B1 90+ 2-stage & variable-speed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Blower Motor 1172829
#5

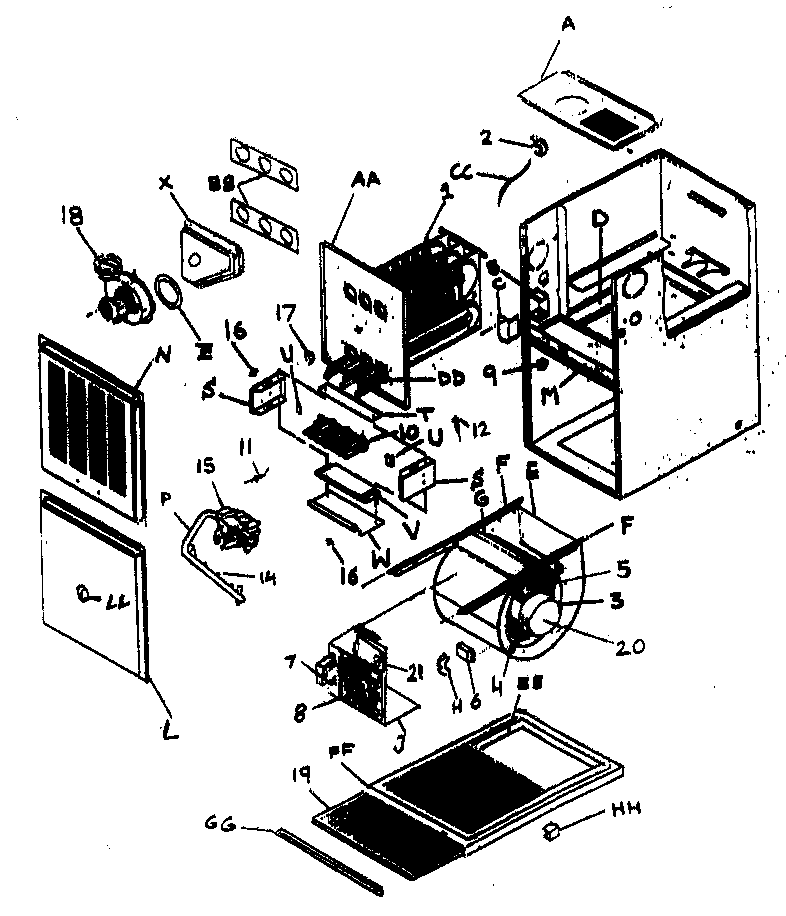

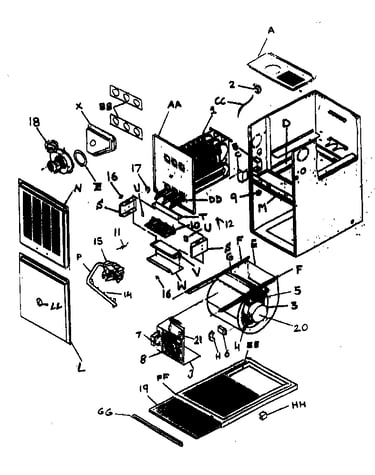

Furnace diagram

Blower motor

Part #1172829

Replaced by #1185887

?
Manufacturer substitution
This part replaces 1172829. Substitute parts can look different from the original.
$771.97 |
$10.00 OFF Phone Price : $781.97
In Stock
Bracket 1012532
#U

Furnace diagram

Bracket

Part #1012532

$296.29
In Stock
Furnace Blower Fan Motor Housing Assembly 1172969
#E

Furnace diagram

Furnace blower fan motor housing assembly

Part #1172969

$665.77
In Stock
Furnace Burner Igniter 1172533
#12

Furnace diagram

Furnace burner igniter

Part #1172533

$54.54 |
8% OFF Phone Price : $59.54
In Stock
Furnace Electronic Control Board (replaces 1172551) 1172809
#8

Furnace diagram

Furnace electronic control board (replaces 1172551)

Part #1172809

$339.63 |
$10.00 OFF Phone Price : $349.63
In Stock
Panel Cutoff 721020008
#G

Furnace diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Mount Blwr 1014822
#4

Furnace diagram

Mount blwr

Part #1014822

$49.51
In Stock
Furnace Door Switch 1171981
#9

Furnace diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Gasket 1013540
#Z

Furnace diagram

Gasket

Part #1013540

This item is not returnable
$3.23
In Stock
Furnace User Interface Control Board 1172839
#21

Furnace diagram

Furnace user interface control board

Part #1172839

$198.84 |
5% OFF Phone Price : $208.84
In Stock
