Model # NDOD112DF02 Official ICP oil-fired furnace

Here are the diagrams and repair parts for Official ICP NDOD112DF02 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Capacitor 77353
#6B

Blower assembly diagram

Capacitor

Part #77353

Replaced by #PAKTRCF5

?
Manufacturer substitution
This part replaces 77353. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44 |
23% OFF Phone Price : $4.44
In Stock
Motor 604007
#13B

Blower assembly diagram

Motor

Part #604007

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#3A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#2

Blower assembly diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Fan Relay 92840

#NI

All parts diagram

Fan relay

Part #92840

The manufacturer no longer makes this part, and there's no substitute part

F&l Control 614251
#7B

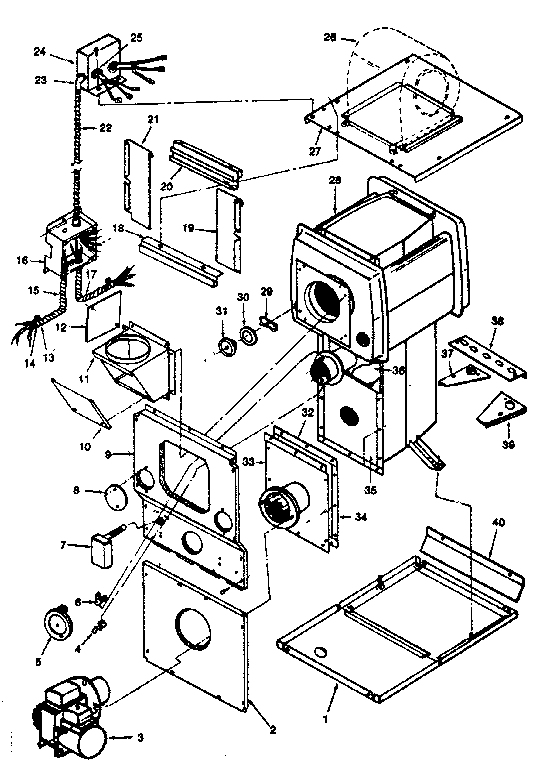

Functional replacement parts diagram

F&l control

Part #614251

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64605
#6

Motor and pump assembly diagram

Nozzle

Part #64605

The manufacturer no longer makes this part, and there's no substitute part

Control 91800
#7A

Functional replacement parts diagram

Control

Part #91800

The manufacturer no longer makes this part, and there's no substitute part

Control 604067
#5

Blower assembly diagram

Control

Part #604067

$44.56
In Stock
Furnace Blower Fan Wheel 601210
#3B

Blower assembly diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
