Model # 989.001 Official Amana range

Here are the diagrams and repair parts for Official Amana 989001 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 297 parts  |
Glass Retainer Clip M1D512
#6

Oven door section (989.001) (989.002) diagram

Glass retainer clip

Part #M1D512

The manufacturer no longer makes this part, and there's no substitute part

Door Latch Spring M2D288
#11

Oven door section (989.001) (989.002) diagram

Door latch spring

Part #M2D288

The manufacturer no longer makes this part, and there's no substitute part

Magnetron Thermal Protector M4D49
#41A

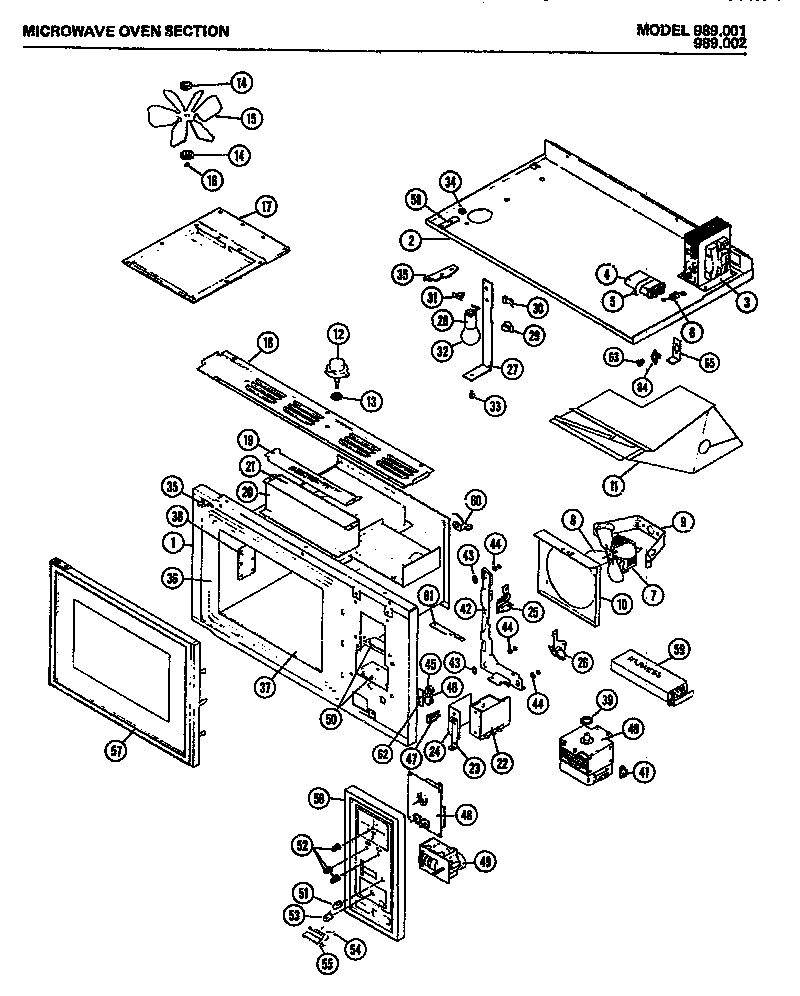

(989.001) (989.002) diagram

Magnetron thermal protector

Part #M4D49

The manufacturer no longer makes this part, and there's no substitute part

Brace Oven Support M20D70
#46A

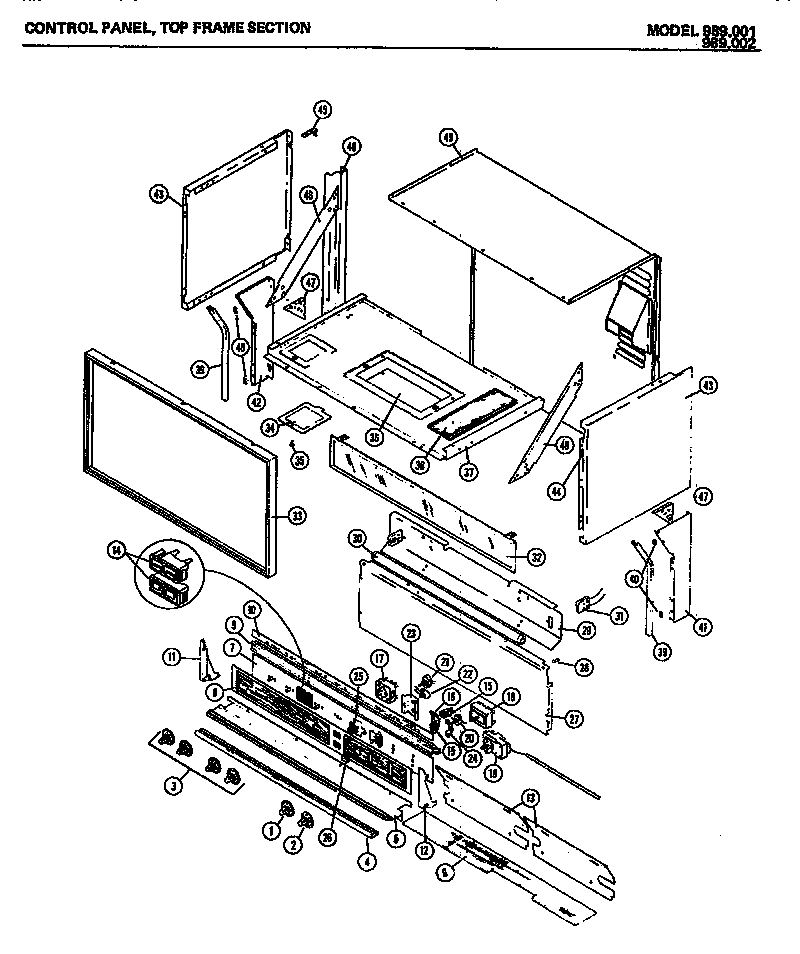

Control panel (989.001) (989.002) diagram

Brace oven support

Part #M20D70

The manufacturer no longer makes this part, and there's no substitute part

Access Cover M20D73
#20C

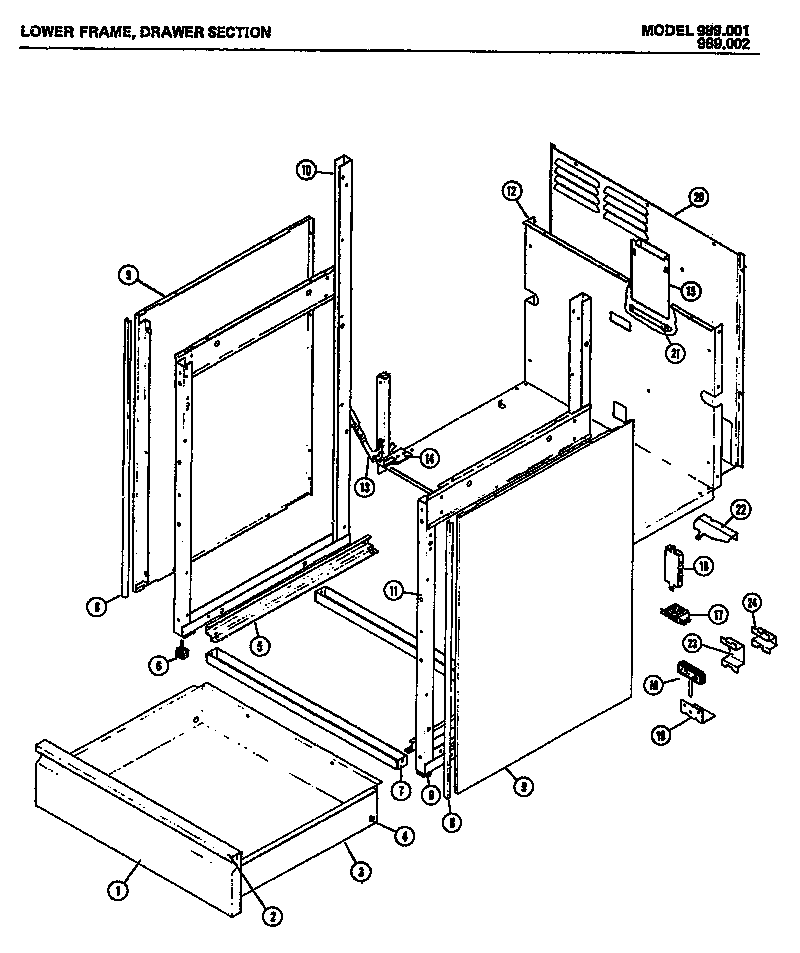

Lower frame (989.001) (989.002) diagram

Access cover

Part #M20D73

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Receptacle Mtg 969.002 M8D120
#65A

(989.001) (989.002) diagram

Bracket, receptacle mtg 969.002

Part #M8D120

The manufacturer no longer makes this part, and there's no substitute part

Panel, Middle Left (copper) M53D9
#42D

Control panel (989.001) (989.002) diagram

Panel, middle left (copper)

Part #M53D9

The manufacturer no longer makes this part, and there's no substitute part

Shim Hinge Mtg. (.020") M2D169
#35B

(989.001) (989.002) diagram

Shim hinge mtg. (.020")

Part #M2D169

The manufacturer no longer makes this part, and there's no substitute part

Insulator M2D290
#18

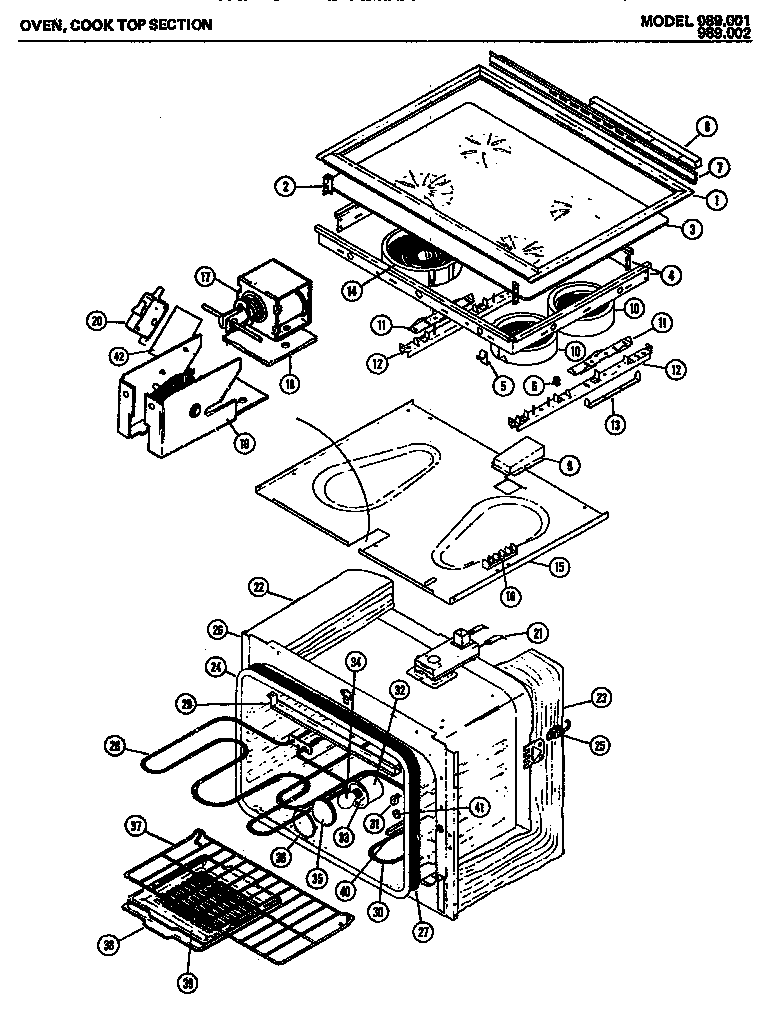

Oven (989.001) (989.002) diagram

Insulator

Part #M2D290

The manufacturer no longer makes this part, and there's no substitute part

Bushing, Switch M2D362
#9

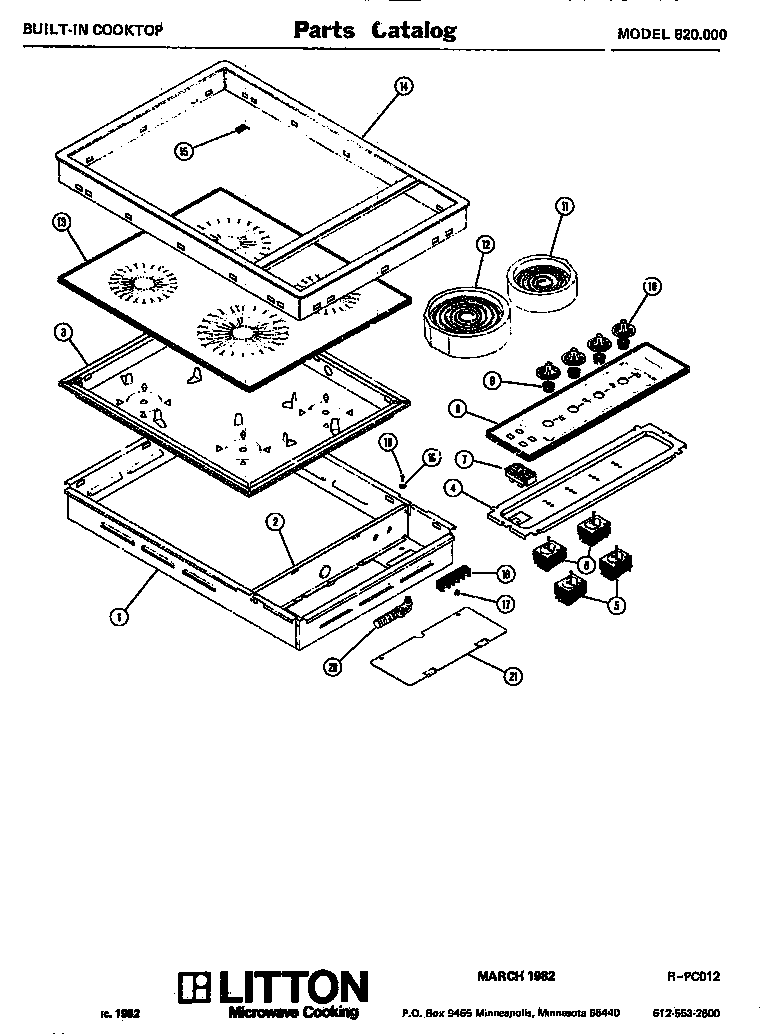

(820.000) diagram

Bushing, switch

Part #M2D362

The manufacturer no longer makes this part, and there's no substitute part
