Panasonic PT-47X54J television

Panasonic PT-47X54J television Parts

Here are the diagrams and repair parts for Panasonic PT-47X54J television, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PT-47X54J Television

  • Lb-pcb,blu for Panasonic PT-47X54J - Part TNP2AA161S

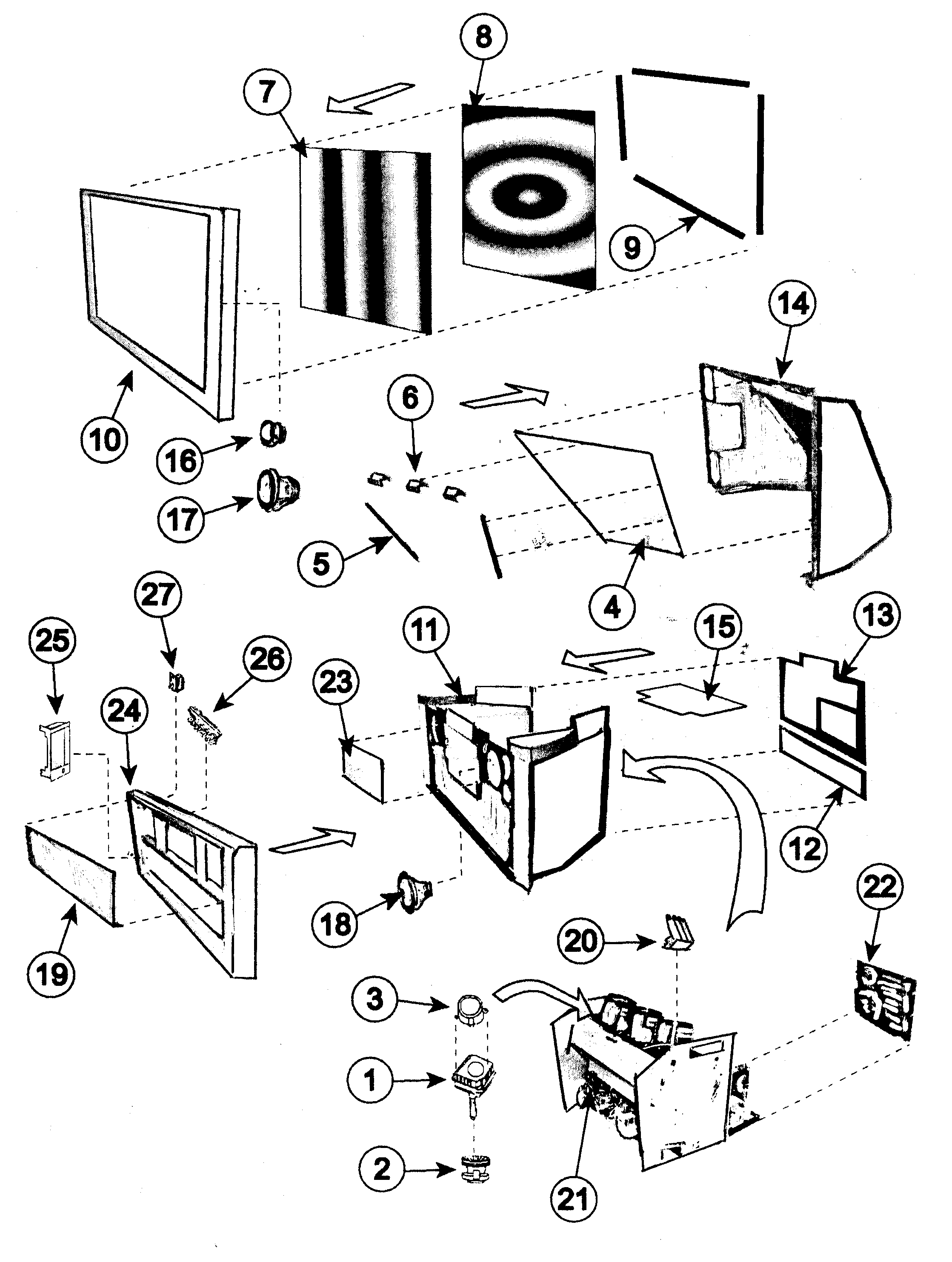

    Cabinet parts diagram

    Lb-pcb,blu

    Part #TNP2AA161S

    The manufacturer no longer makes this part, and there's no substitute part

  • Owner's Manual for Panasonic PT-47X54J - Part TQB2AA0506

    Cabinet parts diagram

    Owner's Manual

    Part #TQB2AA0506

    The manufacturer no longer makes this part, and there's no substitute part

  • R522,res 7.15k 1/4w for Panasonic PT-47X54J - Part EROS2THF7151

    Cabinet parts diagram

    R522,res 7.15k 1/4w

    Part #EROS2THF7151

    The manufacturer no longer makes this part, and there's no substitute part

  • Television Speaker Grille for Panasonic PT-47X54J - Part TKP2AA1162S

    Cabinet parts diagram

    Television Speaker Grille

    Part #TKP2AA1162S

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Panasonic PT-47X54J - Part D3SB80-4101

    Cabinet parts diagram

    Diode

    Part #D3SB80-4101

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Panasonic PT-47X54J - Part EETED2D102C

    Cabinet parts diagram

    Capacitor

    Part #EETED2D102C

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Assembly for Panasonic PT-47X54J - Part TNPA0615ABS

    Cabinet parts diagram

    Pcb Assembly

    Part #TNPA0615ABS

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for Panasonic PT-47X54J - Part PNA4701M05TV

    Cabinet parts diagram

    Integrated Circuit

    Part #PNA4701M05TV

    The manufacturer no longer makes this part, and there's no substitute part

  • Cd-pcb,aut for Panasonic PT-47X54J - Part TNP2AA166S

    Cabinet parts diagram

    Cd-pcb,aut

    Part #TNP2AA166S

    The manufacturer no longer makes this part, and there's no substitute part

  • A/b Lens for Panasonic PT-47X54J - Part TKG2AF020-1

    Cabinet parts diagram

    A/b Lens

    Part #TKG2AF020-1

    The manufacturer no longer makes this part, and there's no substitute part
