Whirlpool MW8600XL0 microwave Parts

Here are the diagrams and repair parts for Whirlpool MW8600XL0 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MW8600XL0 microwave
By Schematic
By Part

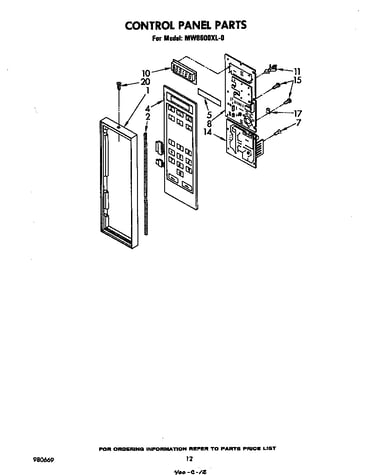

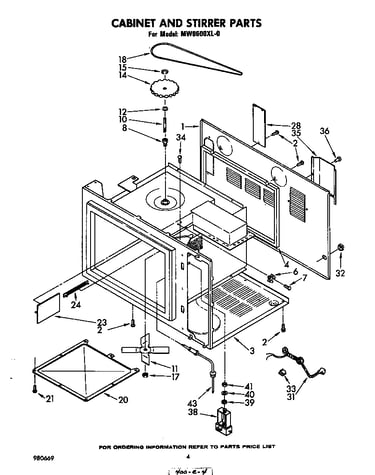

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MW8600XL0 Microwaves

  • Monitor Switch for Whirlpool MW8600XL0 - Part 311356

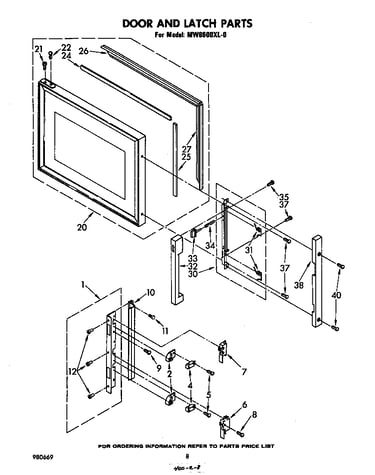

    Door and latch diagram

    Monitor Switch

    Part #311356

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Bracket for Whirlpool MW8600XL0 - Part 311916

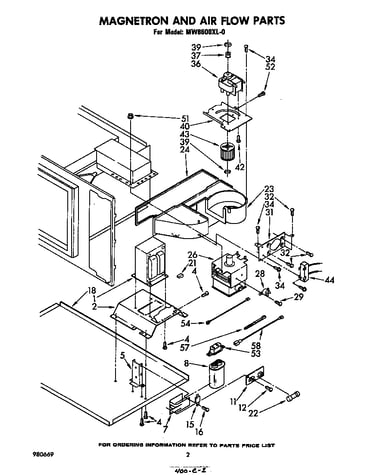

    Magnetron and air flow diagram

    Blower Bracket

    Part #311916

    The manufacturer no longer makes this part, and there's no substitute part

  • Foam Seal for Whirlpool MW8600XL0 - Part 308295

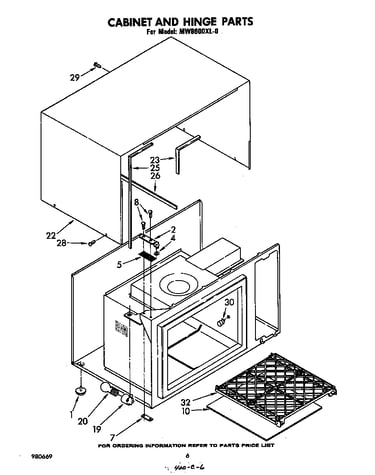

    Cabinet and hinge diagram

    Foam Seal

    Part #308295

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor Bracket for Whirlpool MW8600XL0 - Part 311917

    Magnetron and air flow diagram

    Capacitor Bracket

    Part #311917

    The manufacturer no longer makes this part, and there's no substitute part

  • Appliance Splicing Wire, 25-ft, 14-gauge (yellow) for Whirlpool MW8600XL0 - Part 242827

    #NI

    All parts diagram

    Appliance Splicing Wire, 25-ft, 14-gauge (yellow)

    Part #242827

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Harness for Whirlpool MW8600XL0 - Part 312144

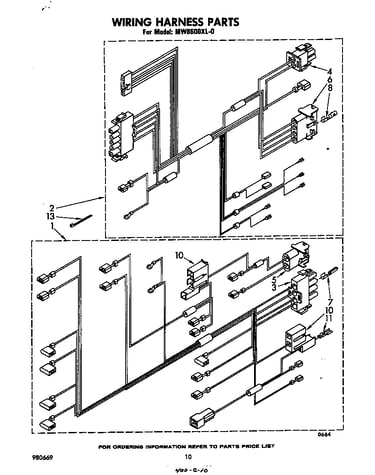

    Wiring harness diagram

    Wire Harness

    Part #312144

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut for Whirlpool MW8600XL0 - Part 310300

    Magnetron and air flow diagram

    Nut

    Part #310300

    The manufacturer no longer makes this part, and there's no substitute part

  • Fastener for Whirlpool MW8600XL0 - Part 310423

    Fastener

    Part #310423

    The manufacturer no longer makes this part, and there's no substitute part

  • Base for Whirlpool MW8600XL0 - Part 309145

    Cabinet and hinge diagram

    Base

    Part #309145

    The manufacturer no longer makes this part, and there's no substitute part

  • Wrapper Cabinet for Whirlpool MW8600XL0 - Part 328644

    Cabinet and hinge diagram

    Wrapper Cabinet

    Part #328644

    The manufacturer no longer makes this part, and there's no substitute part
