Model # TC-P50ST60 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TC-P50ST60 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Television Remote Control N2QAYB000837
#43

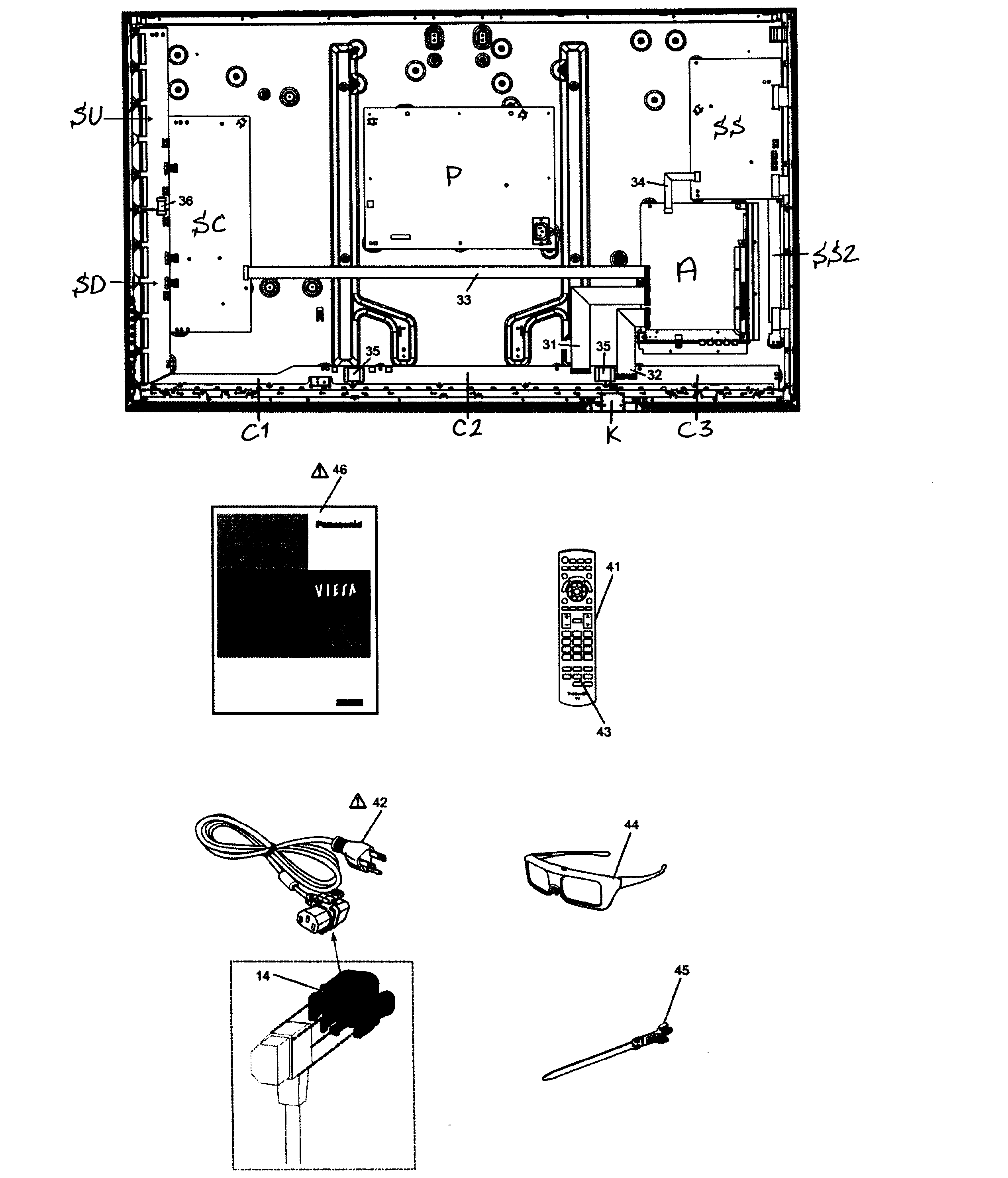

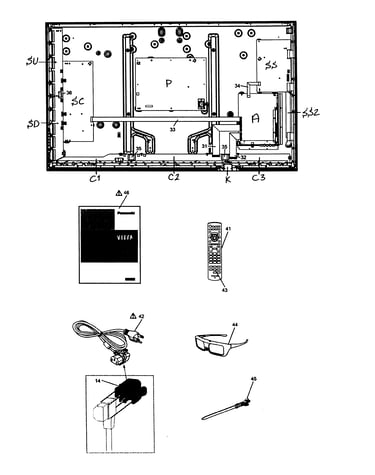

Plasma panel diagram

Television remote control

Part #N2QAYB000837

The manufacturer no longer makes this part, and there's no substitute part

Cable TSCKZ0040028
#33

Plasma panel diagram

Cable

Part #TSCKZ0040028

The manufacturer no longer makes this part, and there's no substitute part

Pcb Ss2 TZRNP05UJUU
#SS2

Plasma panel diagram

Pcb ss2

Part #TZRNP05UJUU

The manufacturer no longer makes this part, and there's no substitute part

Remote Sensor B3RBB0000018
#NI

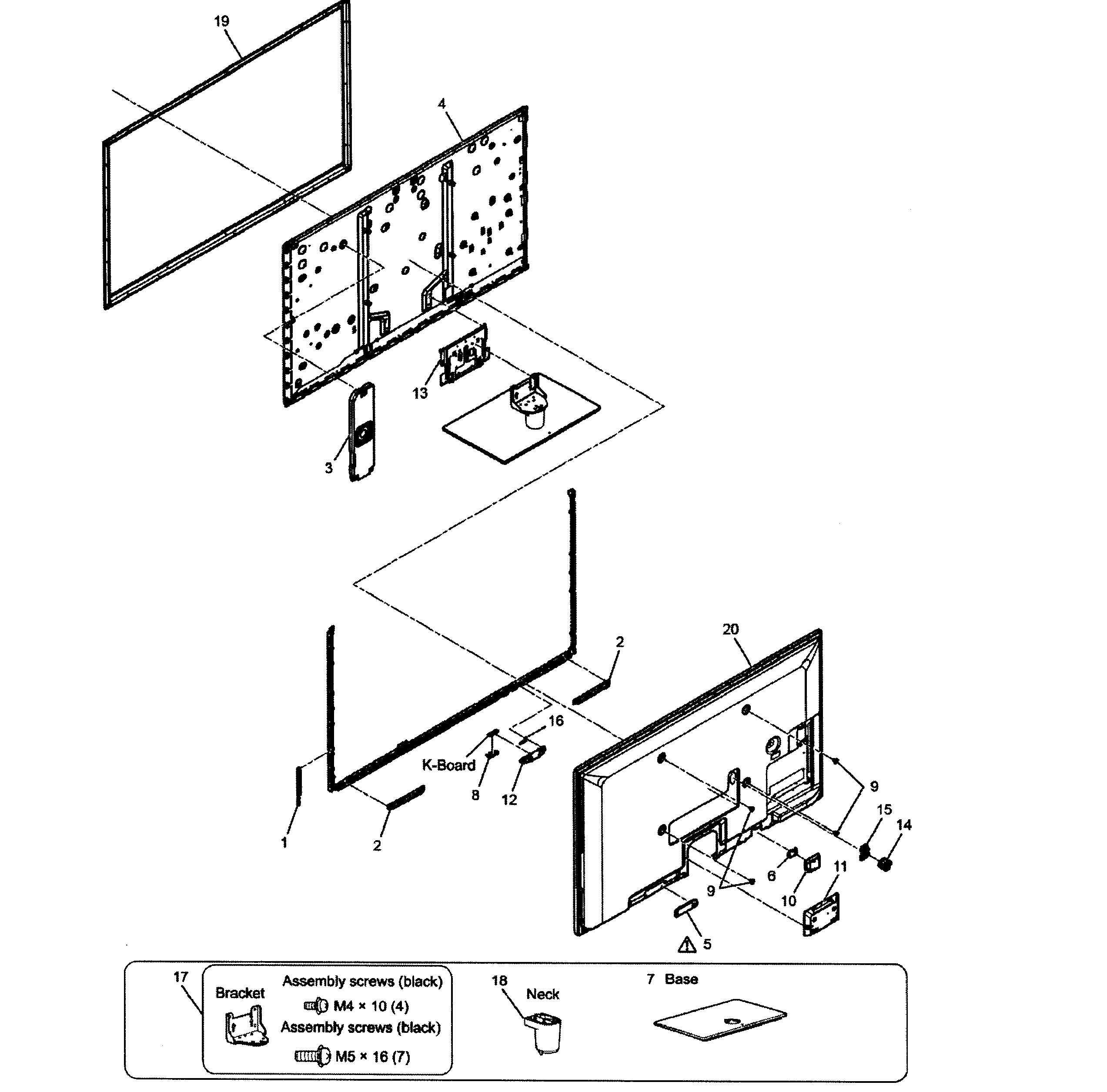

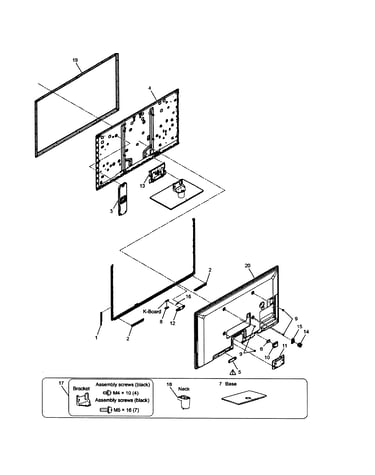

Cabinet parts diagram

Remote sensor

Part #B3RBB0000018

The manufacturer no longer makes this part, and there's no substitute part

Board Bracket TKZ5ZX50401
#13

Cabinet parts diagram

Board bracket

Part #TKZ5ZX50401

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBAYY01299
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBAYY01299

The manufacturer no longer makes this part, and there's no substitute part

Television Printed Circuit Board N5HBZ0000101
#5

Cabinet parts diagram

Television printed circuit board

Part #N5HBZ0000101

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Rr TXFKU1313SER
#20

Cabinet parts diagram

Cabinet rr

Part #TXFKU1313SER

The manufacturer no longer makes this part, and there's no substitute part

Dongle Blu N5HZZ0000130
#6

Cabinet parts diagram

Dongle blu

Part #N5HZZ0000130

The manufacturer no longer makes this part, and there's no substitute part

Spakr Lead TXJA12UJUU
#NI

Cabinet parts diagram

Spakr lead

Part #TXJA12UJUU

The manufacturer no longer makes this part, and there's no substitute part
