GE
Room Air Conditioner

Model # APCD08AXWWW1 Official GE room a/c

Here are the diagrams and repair parts for Official GE APCD08AXWWW1 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

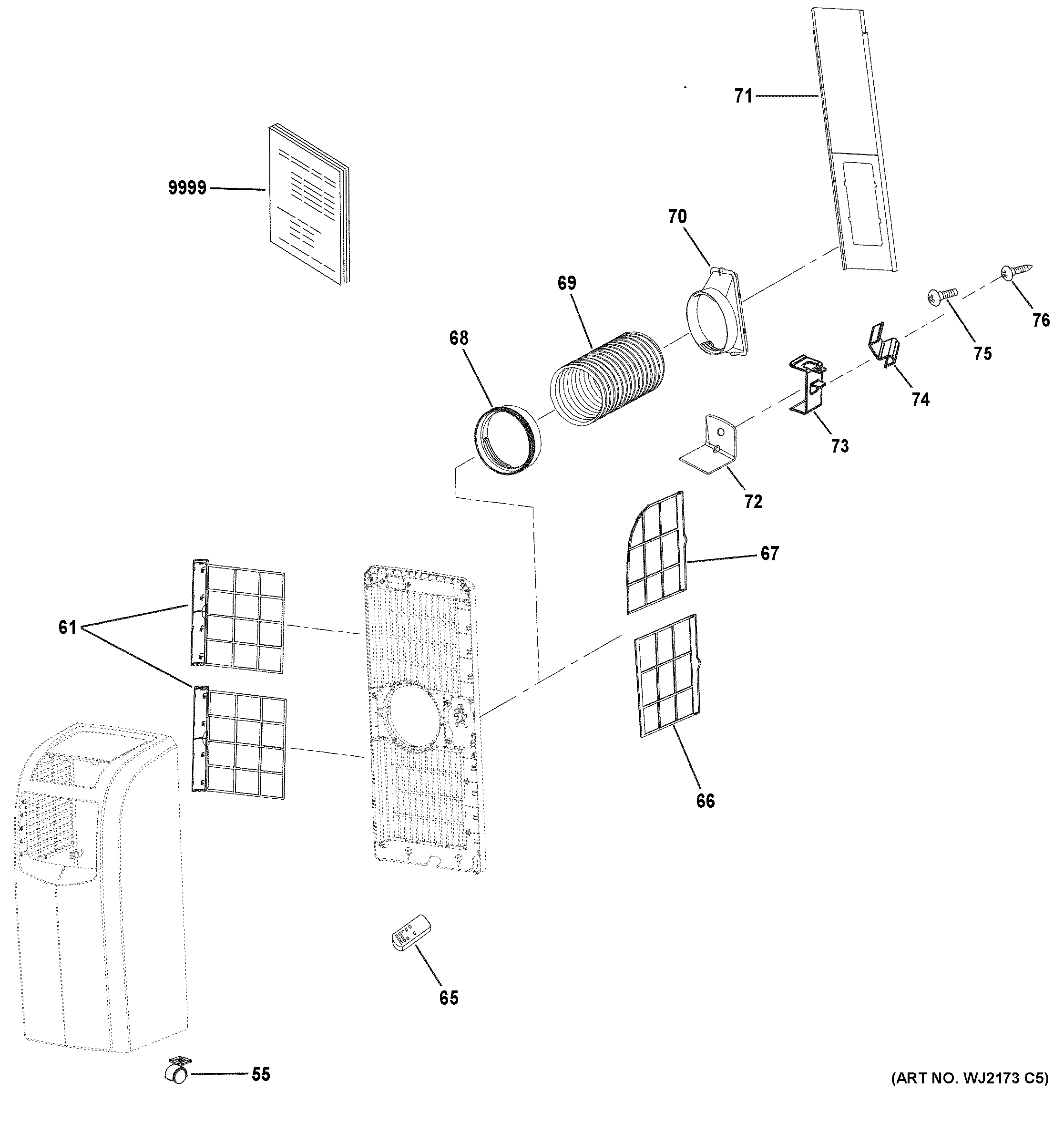

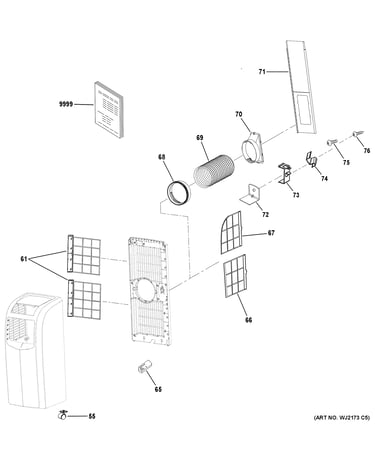

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Room Air Conditioner Exhaust Hose Connector WJ65X22918
#68

Room air conditioner diagram

Room air conditioner exhaust hose connector

Part #WJ65X22918

$16.39 |
11% OFF Phone Price : $18.39
In Stock
Room Air Conditioner Window Exhaust Panel WJ43X22919
#71

Room air conditioner diagram

Room air conditioner window exhaust panel

Part #WJ43X22919

$52.57 |
9% OFF Phone Price : $57.57
In Stock
Bottom Window WJ01X24474
#74

Room air conditioner diagram

Bottom window

Part #WJ01X24474

$8.11
In Stock
Upper Filter WJ85X24793
#67

Room air conditioner diagram

Upper filter

Part #WJ85X24793

$11.16 |
15% OFF Phone Price : $13.16
In Stock
Top Bracket WJ65X24122
#72

Room air conditioner diagram

Top bracket

Part #WJ65X24122

$35.71
In Stock
Pointed Screw WJ01X24472
#76

Room air conditioner diagram

Pointed screw

Part #WJ01X24472

$8.11
In Stock
Top Window Bracket WJ01X24475
#73

Room air conditioner diagram

Top window bracket

Part #WJ01X24475

$8.11
In Stock
Flat Screw WJ01X24473
#75

Room air conditioner diagram

Flat screw

Part #WJ01X24473

$8.11
In Stock
Room Air Conditioner Exhaust Hose WJ65X22920
#69

Room air conditioner diagram

Room air conditioner exhaust hose

Part #WJ65X22920

$45.81 |
10% OFF Phone Price : $50.81
In Stock
Filter Handle WJ85X24836
#61

Room air conditioner diagram

Filter handle

Part #WJ85X24836

$21.10 |
19% OFF Phone Price : $26.10
In Stock
