Amana EA48X/P52801-5C horizontal vertical blower coil assembly Parts
Here are the diagrams and repair parts for Amana EA48X/P52801-5C horizontal vertical blower coil assembly, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for EA48X/P52801-5C Horizontal Vertical Blower Coil Assembly

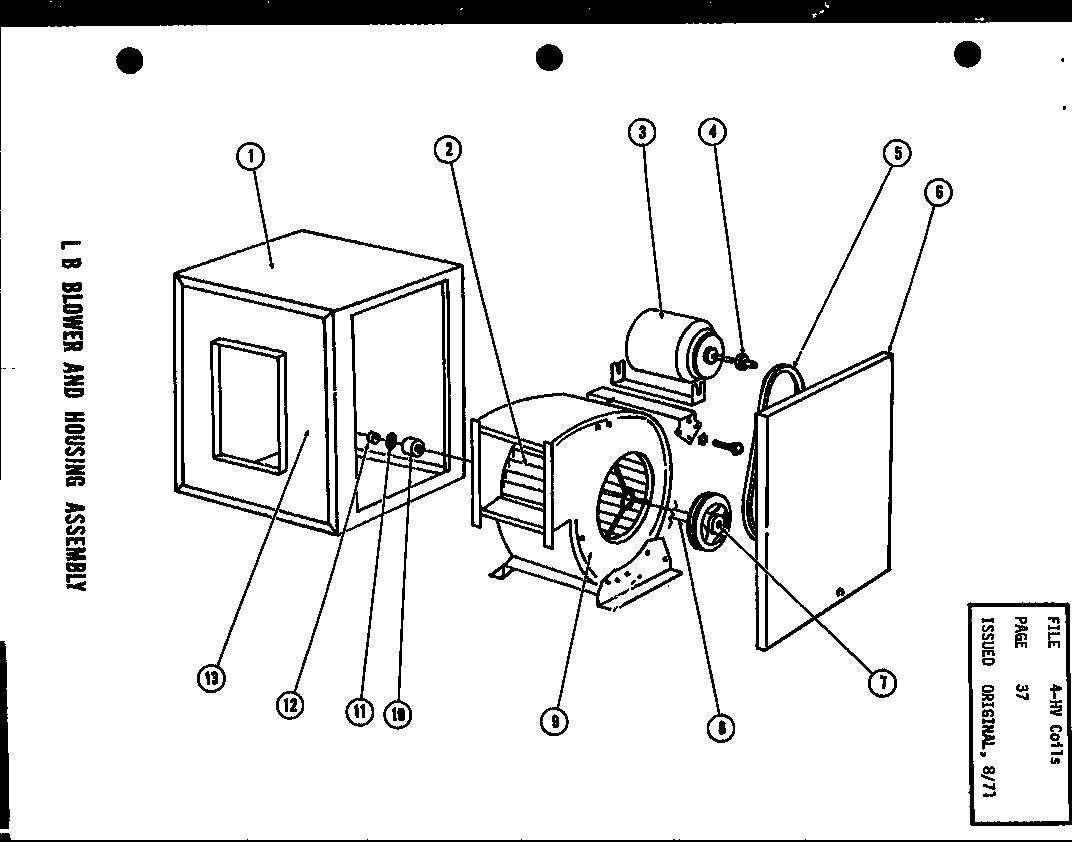

Lb blower and housing assembly (lb2,3a/p53798-3c) (lb4,5a/p53798-4c) (lb4,5h/p53798-5c) diagram
Access Door
Part #C5248202
The manufacturer no longer makes this part, and there's no substitute part

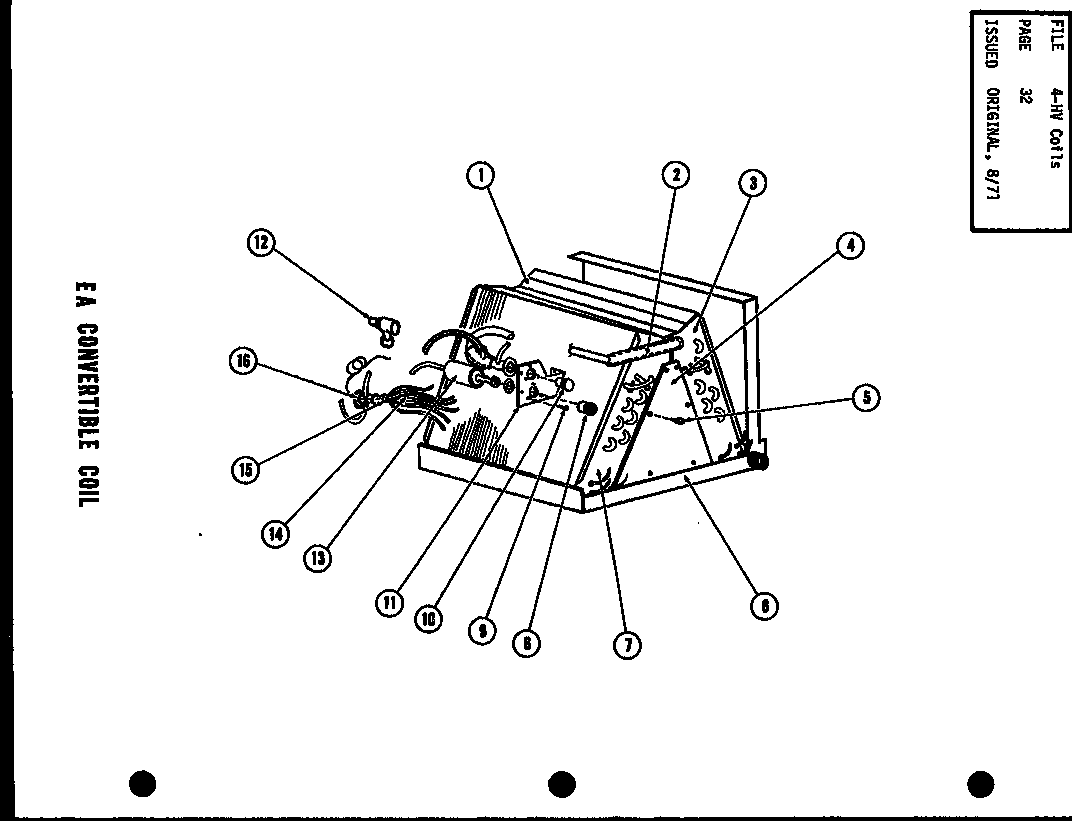

Ea convertible coil (ea48x/p52801-5c) (ea58x/p52801-6c) diagram
Tube, Distributor, Right 3/16" O.d. X 28 13/16"
Part #C5827101
The manufacturer no longer makes this part, and there's no substitute part
Lb blower and housing assembly (lb2,3a/p53798-3c) (lb4,5a/p53798-4c) (lb4,5h/p53798-5c) diagram
Front, Blower Cover
Part #D5370801
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Grommet
Part #A0364601
The manufacturer no longer makes this part, and there's no substitute part

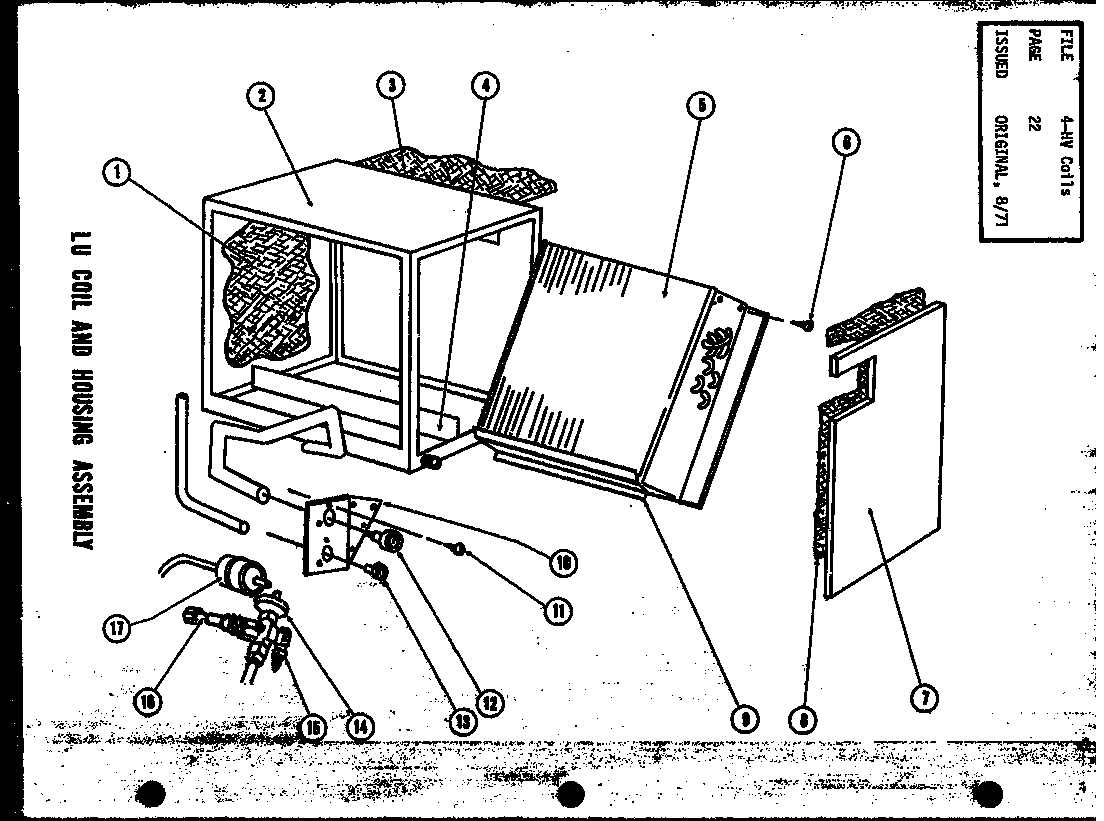

Lu coil and housing assembly (luh3/p53794-2c) (luh4/p53794-3c) (luh5/p53794-4c) diagram
Baffle, Evaporator, Lower
Part #C5253001
The manufacturer no longer makes this part, and there's no substitute part

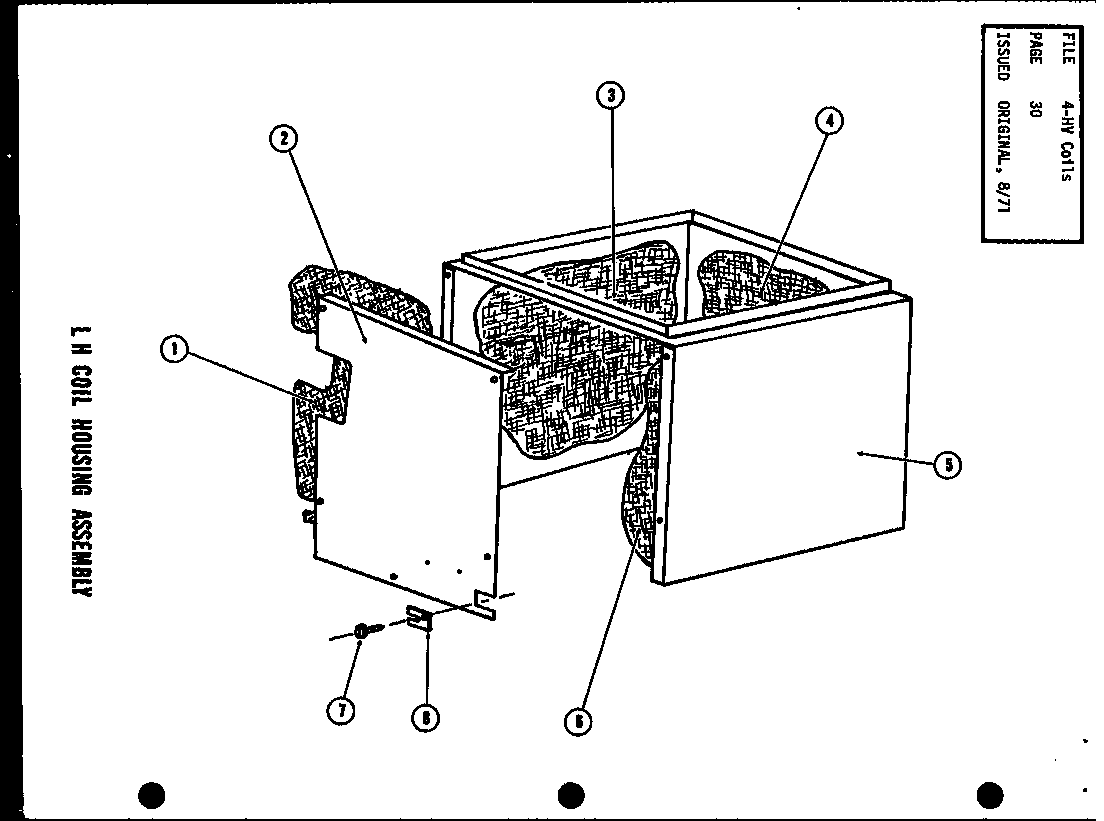

Lh coil housing assembly (lh4,5b/p52798-3c) (lh4a/p52798-4c) diagram
Plate, Front Corner
Part #A4589102
The manufacturer no longer makes this part, and there's no substitute part
Lb blower and housing assembly (lb2,3a/p53798-3c) (lb4,5a/p53798-4c) (lb4,5h/p53798-5c) diagram
Wheel, Blower, 10 X 9 3010120
Part #D5373346
The manufacturer no longer makes this part, and there's no substitute part

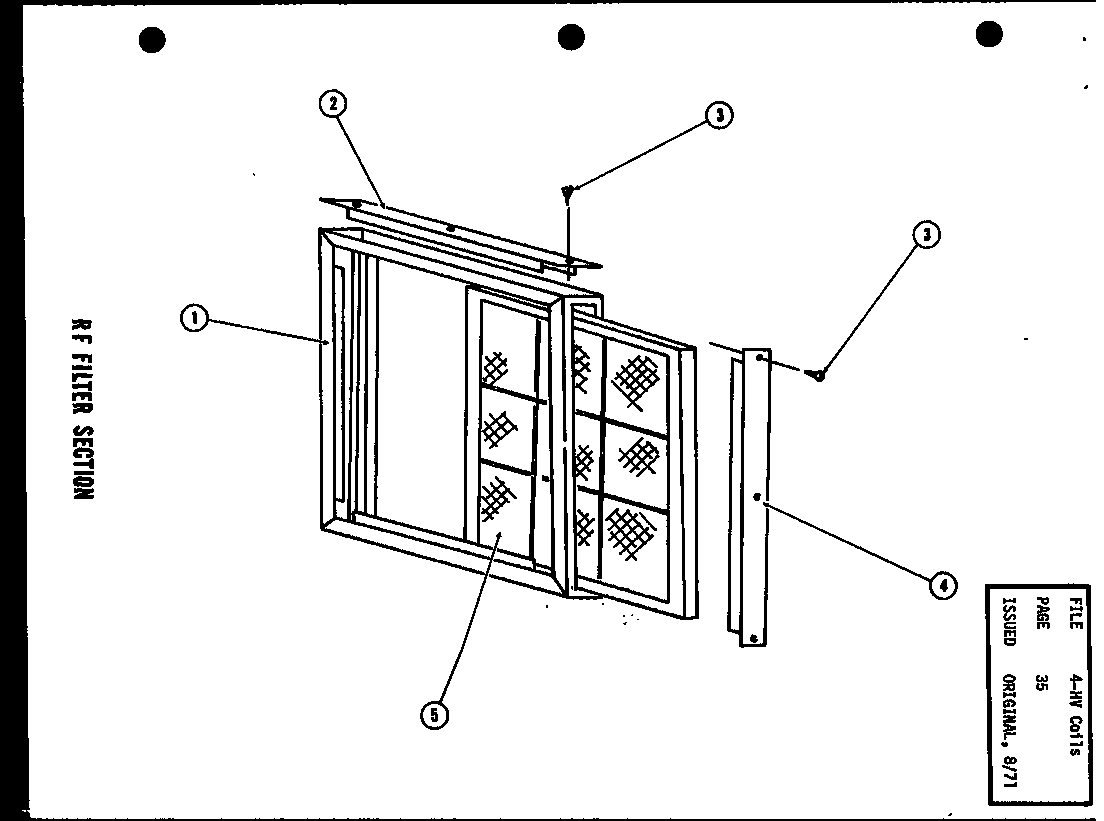

Rf filter section (rf2,3/p53802-1c) (rf4,5/p53802-2c) (rf4,5h/p53802-5c) diagram
Cover Access, Front
Part #C5254101
The manufacturer no longer makes this part, and there's no substitute part
Ea convertible coil (ea48x/p52801-5c) (ea58x/p52801-6c) diagram
Evaporator Assembly, Left Hand
Part #D5459101
The manufacturer no longer makes this part, and there's no substitute part

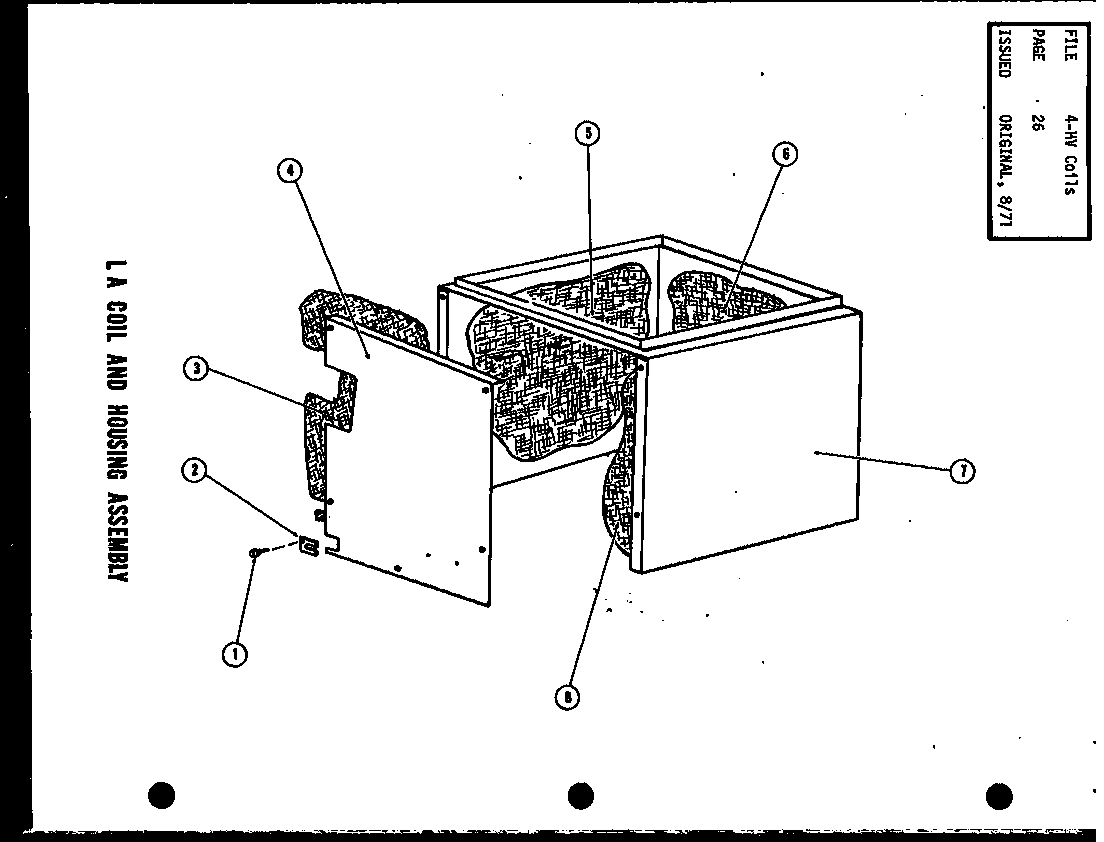

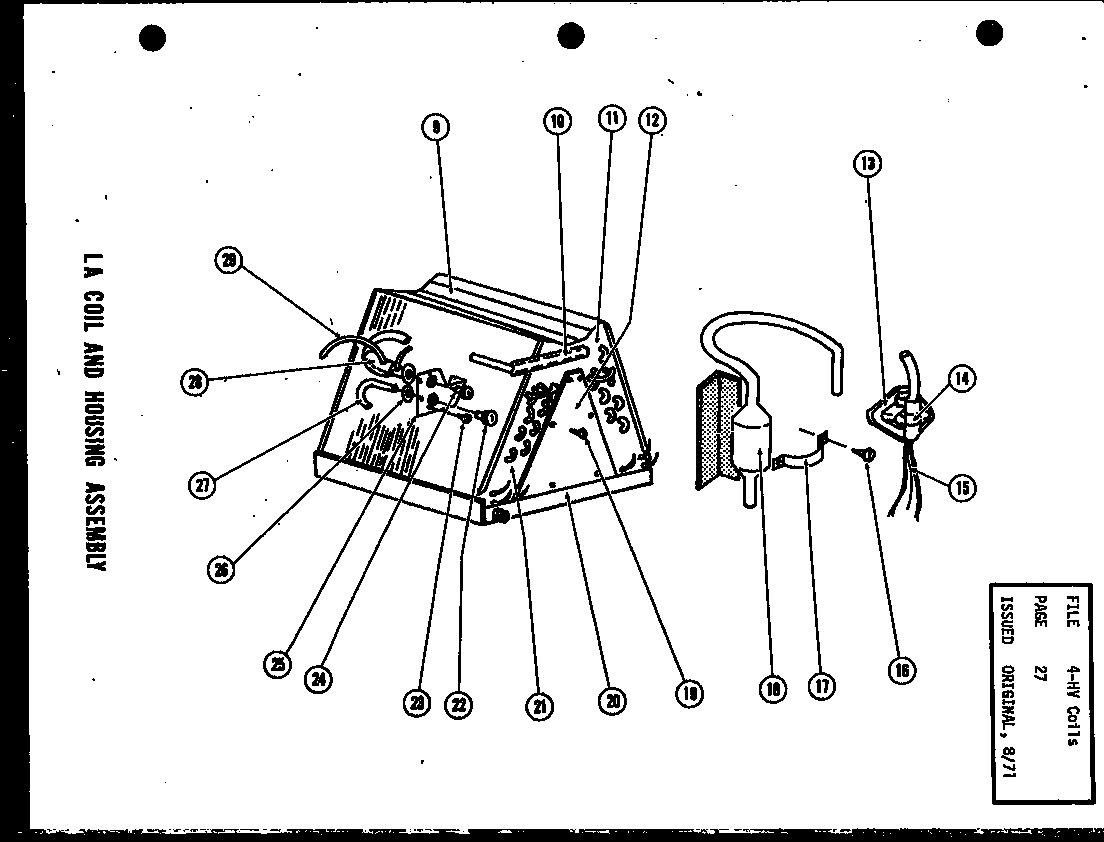

La coil and housingassembly (lah3a/p52799-2c) diagram
Evaporator Assembly, Right Hand
Part #D5449901
The manufacturer no longer makes this part, and there's no substitute part
