Model # 631.004 Official Amana electric range/microwave combo

Here are the diagrams and repair parts for Official Amana 631004 electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Bracket, Transformer Mtg M8D110
#37A

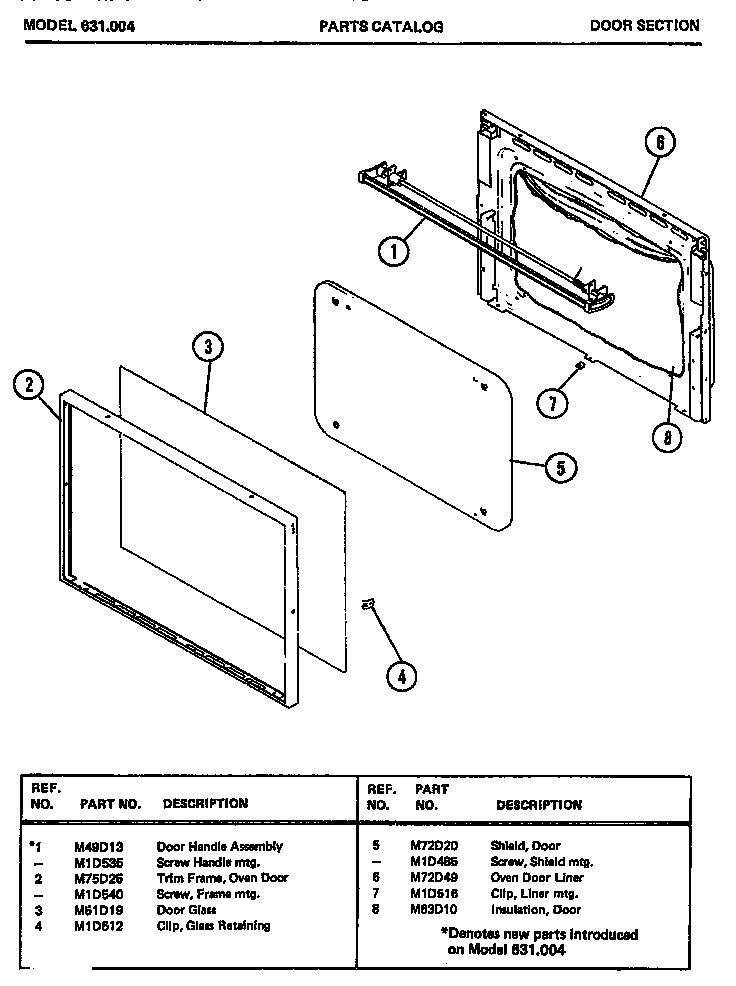

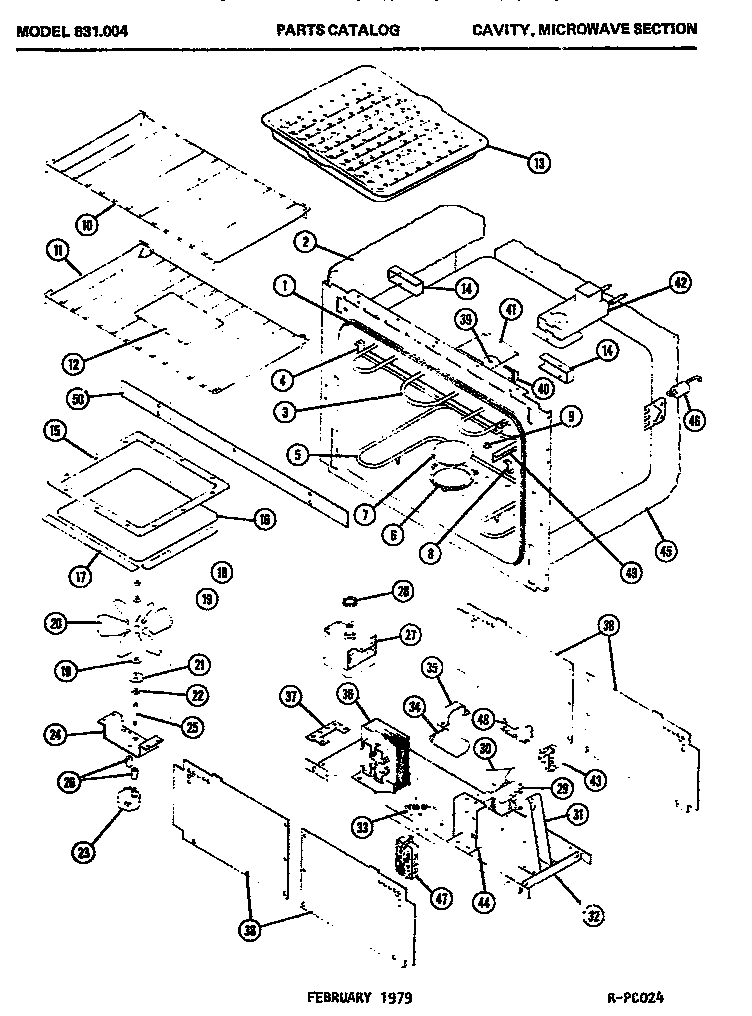

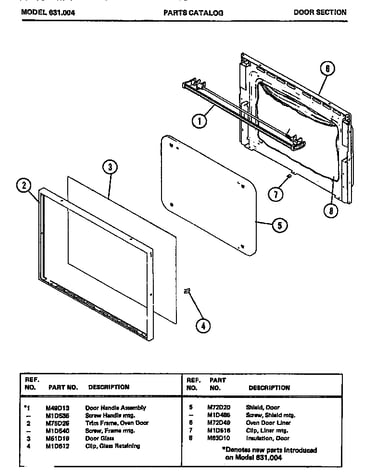

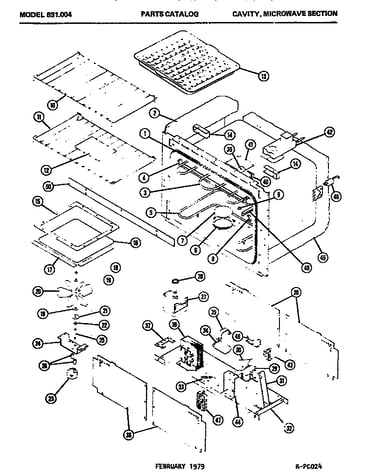

(631.004) diagram

Bracket, transformer mtg

Part #M8D110

The manufacturer no longer makes this part, and there's no substitute part

Insulation (back & Bottom) M63D12
#45

(631.004) diagram

Insulation (back & bottom)

Part #M63D12

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Broil Element Support M52D72
#4A

(631.004) diagram

Bracket, broil element support

Part #M52D72

The manufacturer no longer makes this part, and there's no substitute part

Backsplasher (copper) M82D108
#11D

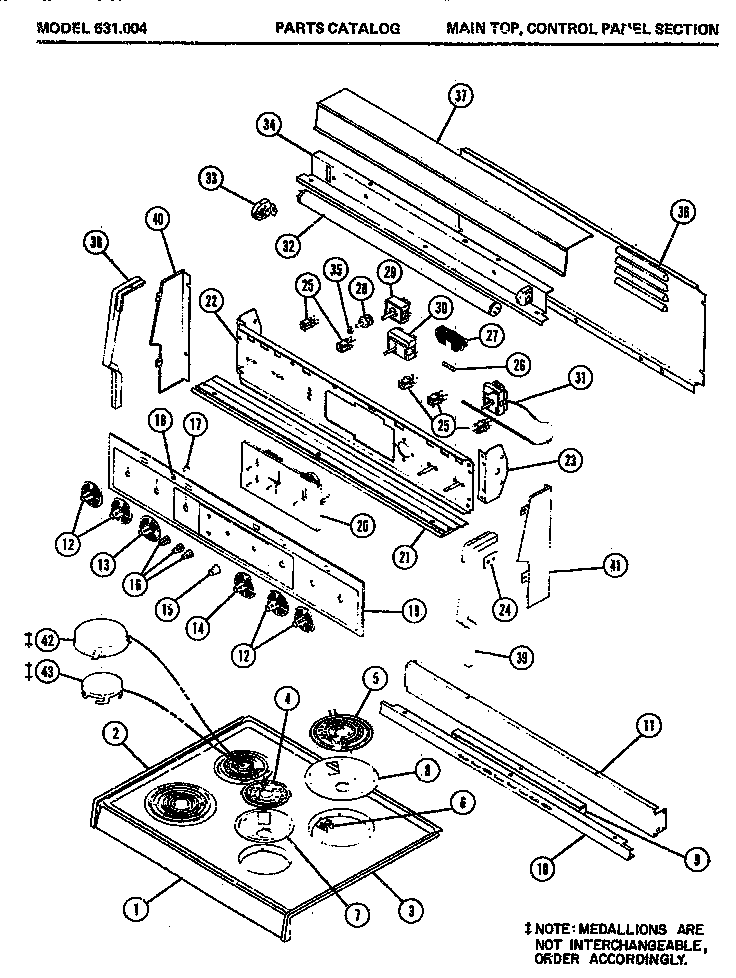

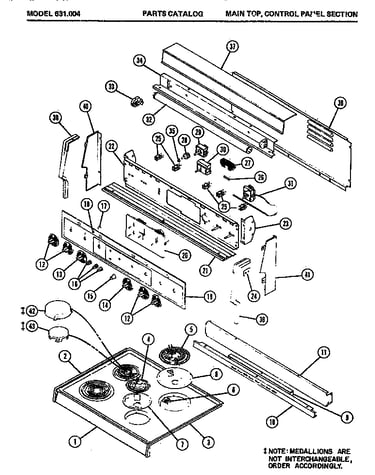

Main top (631.004) diagram

Backsplasher (copper)

Part #M82D108

The manufacturer no longer makes this part, and there's no substitute part

Backsplasher (h. Gold) M82D106
#11B

Main top (631.004) diagram

Backsplasher (h. gold)

Part #M82D106

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Hinge Mtg M8D78
#15A

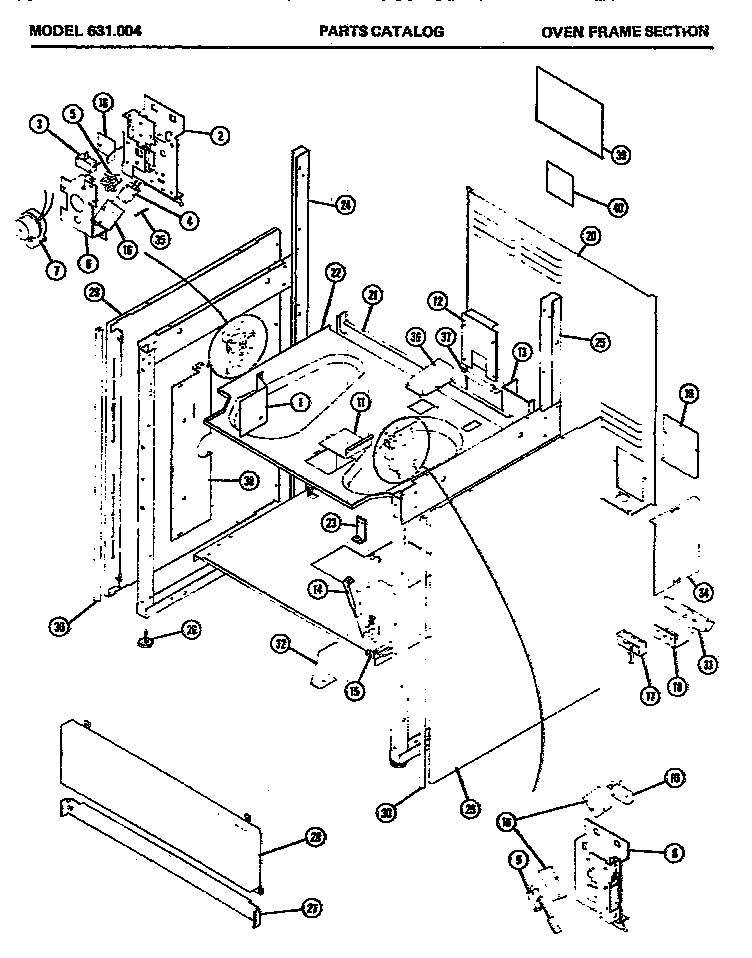

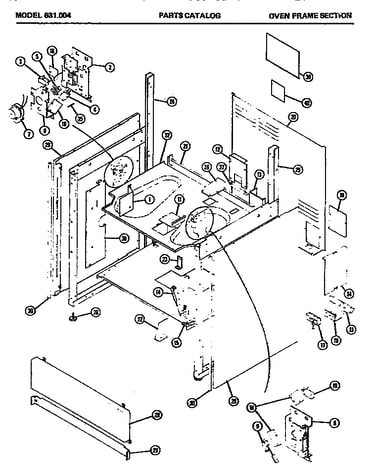

Oven frame section (631.004) diagram

Bracket, hinge mtg

Part #M8D78

The manufacturer no longer makes this part, and there's no substitute part

Disc, R.f. Stirrer M2D264
#21

(631.004) diagram

Disc, r.f. stirrer

Part #M2D264

The manufacturer no longer makes this part, and there's no substitute part

Diverted Bracket M8D125
#33

Oven frame section (631.004) diagram

Diverted bracket

Part #M8D125

The manufacturer no longer makes this part, and there's no substitute part

Side Cover, Right (white) M53D14
#41A

Main top (631.004) diagram

Side cover, right (white)

Part #M53D14

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor M12D33
#29A

(631.004) diagram

Blower motor

Part #M12D33

The manufacturer no longer makes this part, and there's no substitute part
