Model # 155848800 Official Kenmore prefabricated built-in fireplace with outside combustion air

Here are the diagrams and repair parts for Official Kenmore 155848800 prefabricated built-in fireplace with outside combustion air, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Amp Lok Plut K16205
#110

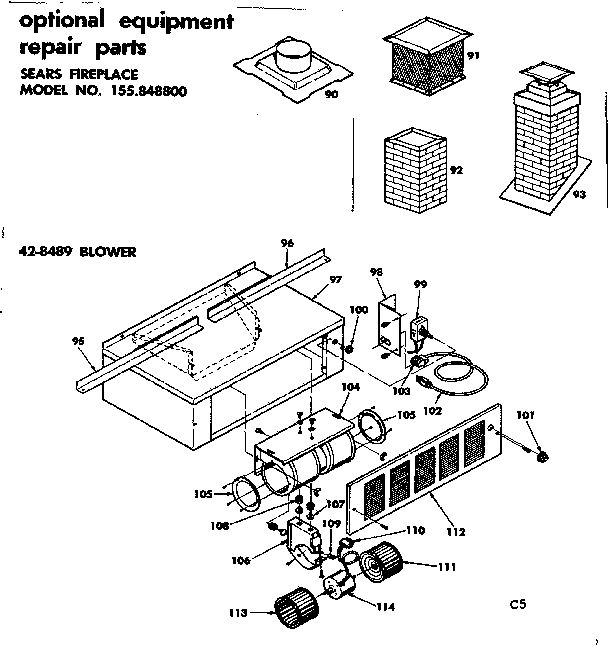

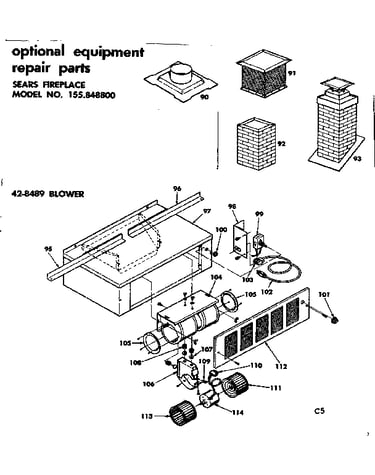

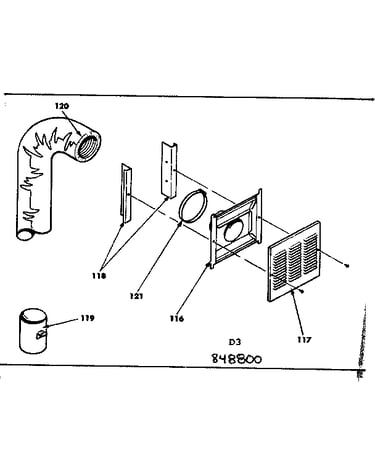

Optional equipment diagram

Amp lok plut

Part #K16205

The manufacturer no longer makes this part, and there's no substitute part

Nut K14554
#100

Optional equipment diagram

Nut

Part #K14554

The manufacturer no longer makes this part, and there's no substitute part

U Speednut K1850
#109

Optional equipment diagram

U speednut

Part #K1850

The manufacturer no longer makes this part, and there's no substitute part

Grate Basket 3001
#87

Optional equipment diagram

Grate basket

Part #3001

The manufacturer no longer makes this part, and there's no substitute part

Insert T19544
#48

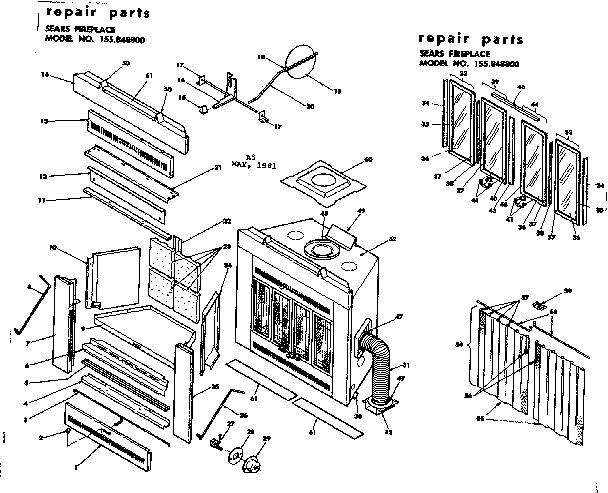

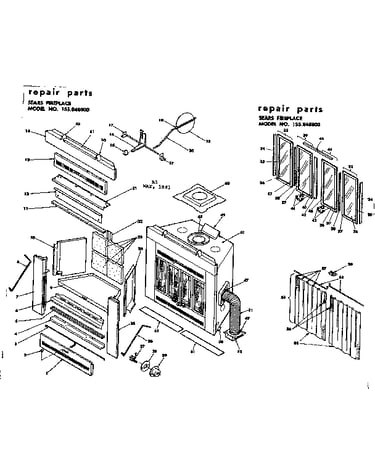

Fireplace diagram

Insert

Part #T19544

The manufacturer no longer makes this part, and there's no substitute part

Blowr Housng Y14527
#76

Optional equipment diagram

Blowr housng

Part #Y14527

The manufacturer no longer makes this part, and there's no substitute part

Damper Rod K17129
#26

Fireplace diagram

Damper rod

Part #K17129

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 6 K17140
#121

Optional equipment diagram

Hose clamp 6

Part #K17140

The manufacturer no longer makes this part, and there's no substitute part

Receptacle K17033
#27

Fireplace diagram

Receptacle

Part #K17033

The manufacturer no longer makes this part, and there's no substitute part

Spacer Z3393
#18

Fireplace diagram

Spacer

Part #Z3393

The manufacturer no longer makes this part, and there's no substitute part
