Model # P3URC20N09501B Official York upflow natural gas furnace

Here are the diagrams and repair parts for Official York P3URC20N09501B upflow natural gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Furnace Temperature Limit Switch 025-29041-002

#5

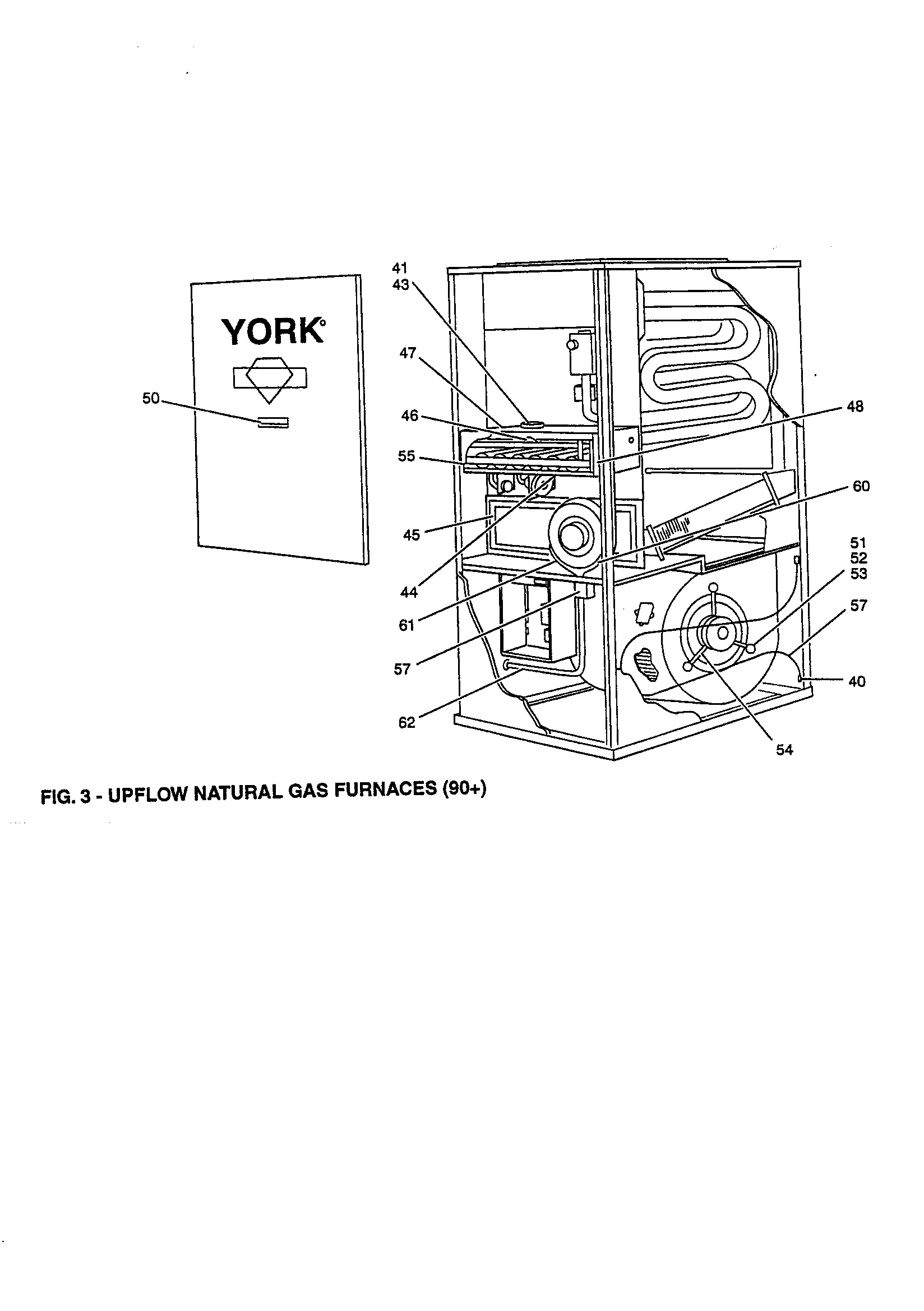

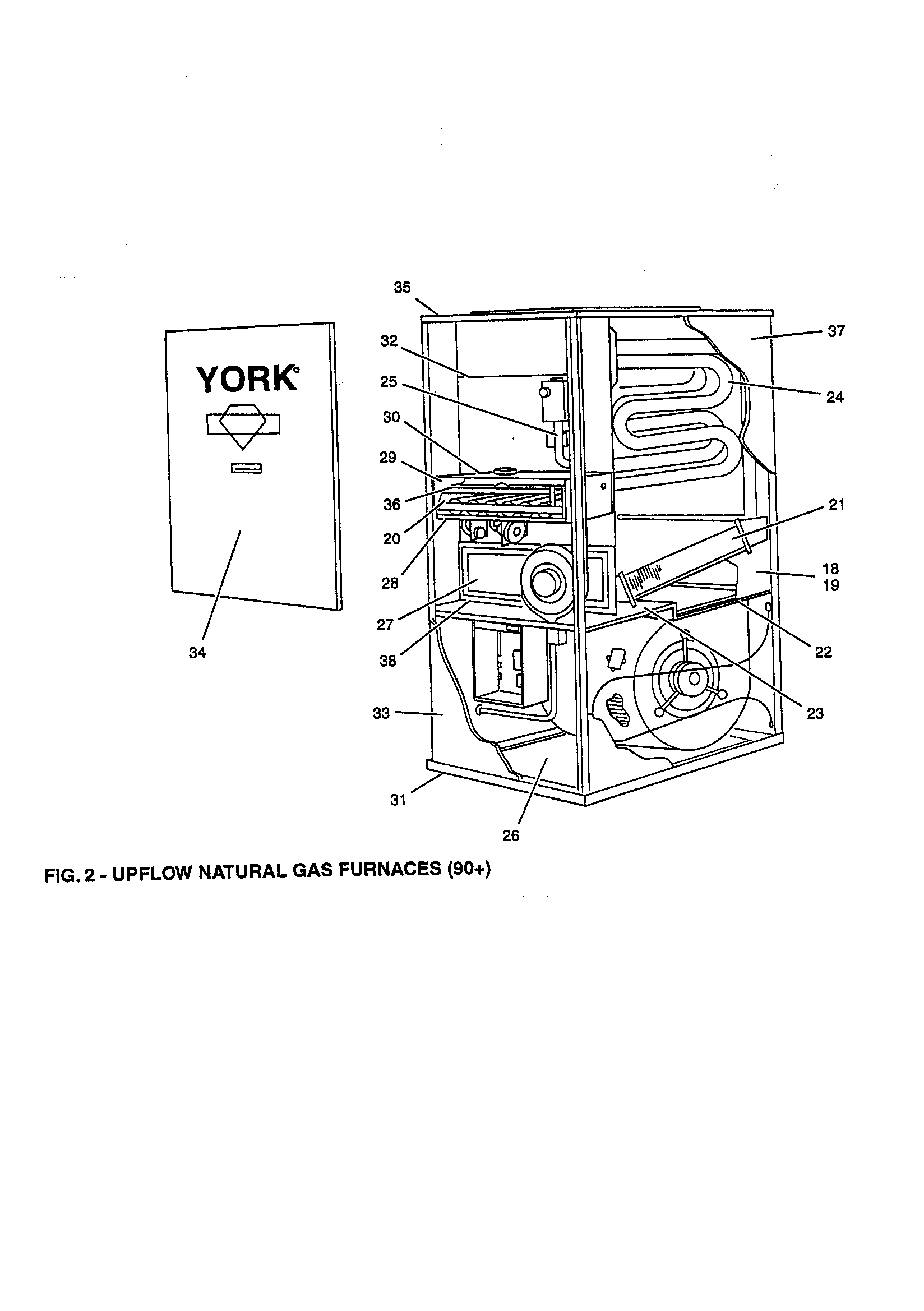

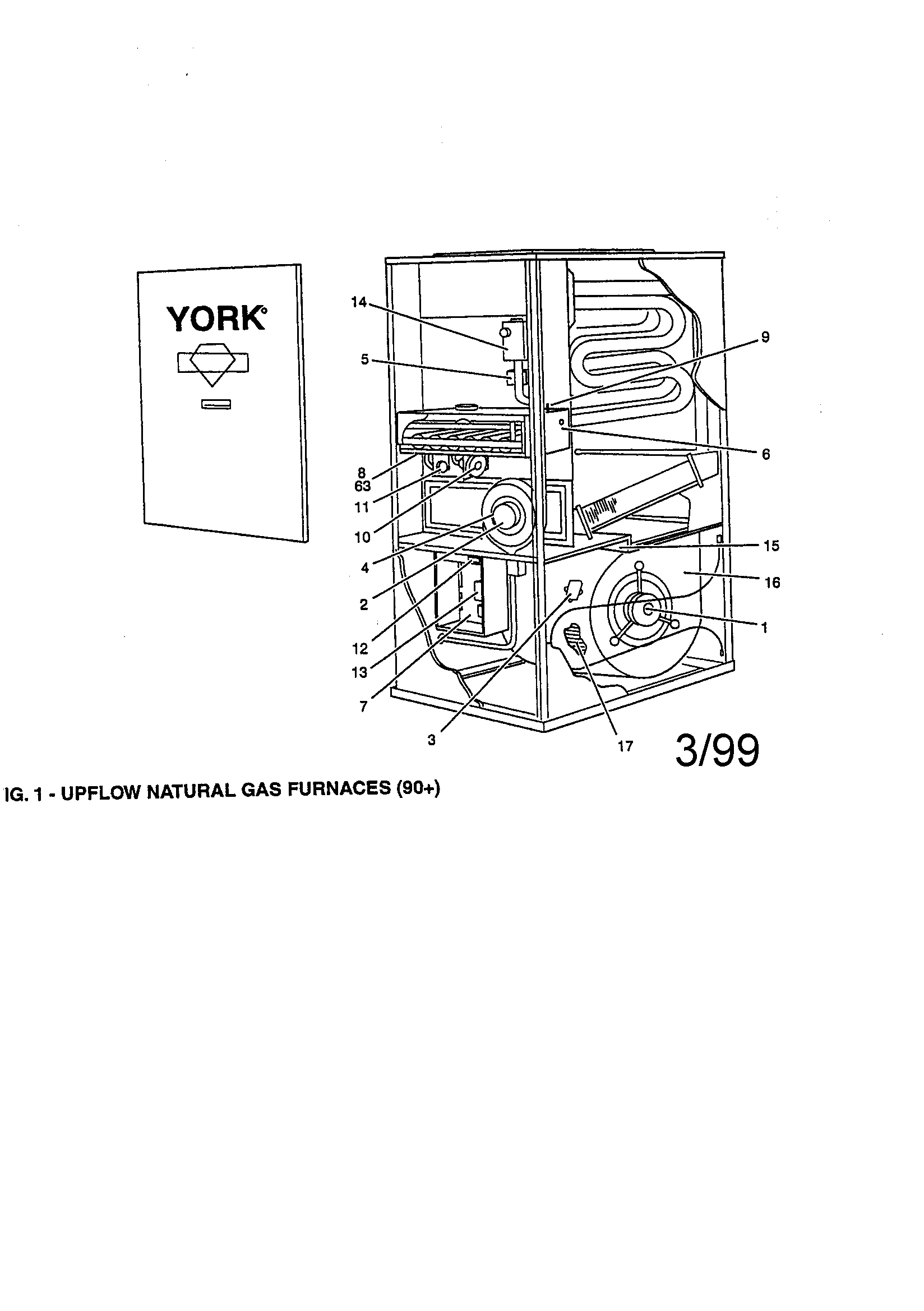

All parts diagram

Furnace temperature limit switch

Part #025-29041-002

The manufacturer no longer makes this part, and there's no substitute part

Furnace Burner 029-20482-000

#20

All parts diagram

Furnace burner

Part #029-20482-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Burner Flame Sensor 025-30788-700

#9

All parts diagram

Furnace burner flame sensor

Part #025-30788-700

The manufacturer no longer makes this part, and there's no substitute part

Control 031-01266-000

#7

All parts diagram

Control

Part #031-01266-000

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 073-17504-003

#26

All parts diagram

Pan base

Part #073-17504-003

The manufacturer no longer makes this part, and there's no substitute part

Panel, Fornt (blower) (p3urc16n07501c) 073-17522-003

#33A

All parts diagram

Panel, fornt (blower) (p3urc16n07501c)

Part #073-17522-003

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Handler Blower Wheel 026-19654-014

#17

All parts diagram

Central air conditioner air handler blower wheel

Part #026-19654-014

The manufacturer no longer makes this part, and there's no substitute part

Channel, Toe Plate 073-12062-703

#31

All parts diagram

Channel, toe plate

Part #073-12062-703

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchanger Assembly 373-17467-004

#24

All parts diagram

Heat exchanger assembly

Part #373-17467-004

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 029-22113-000

#50

All parts diagram

Door handle

Part #029-22113-000

The manufacturer no longer makes this part, and there's no substitute part
