Model # XBR-65HX950 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony XBR-65HX950 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

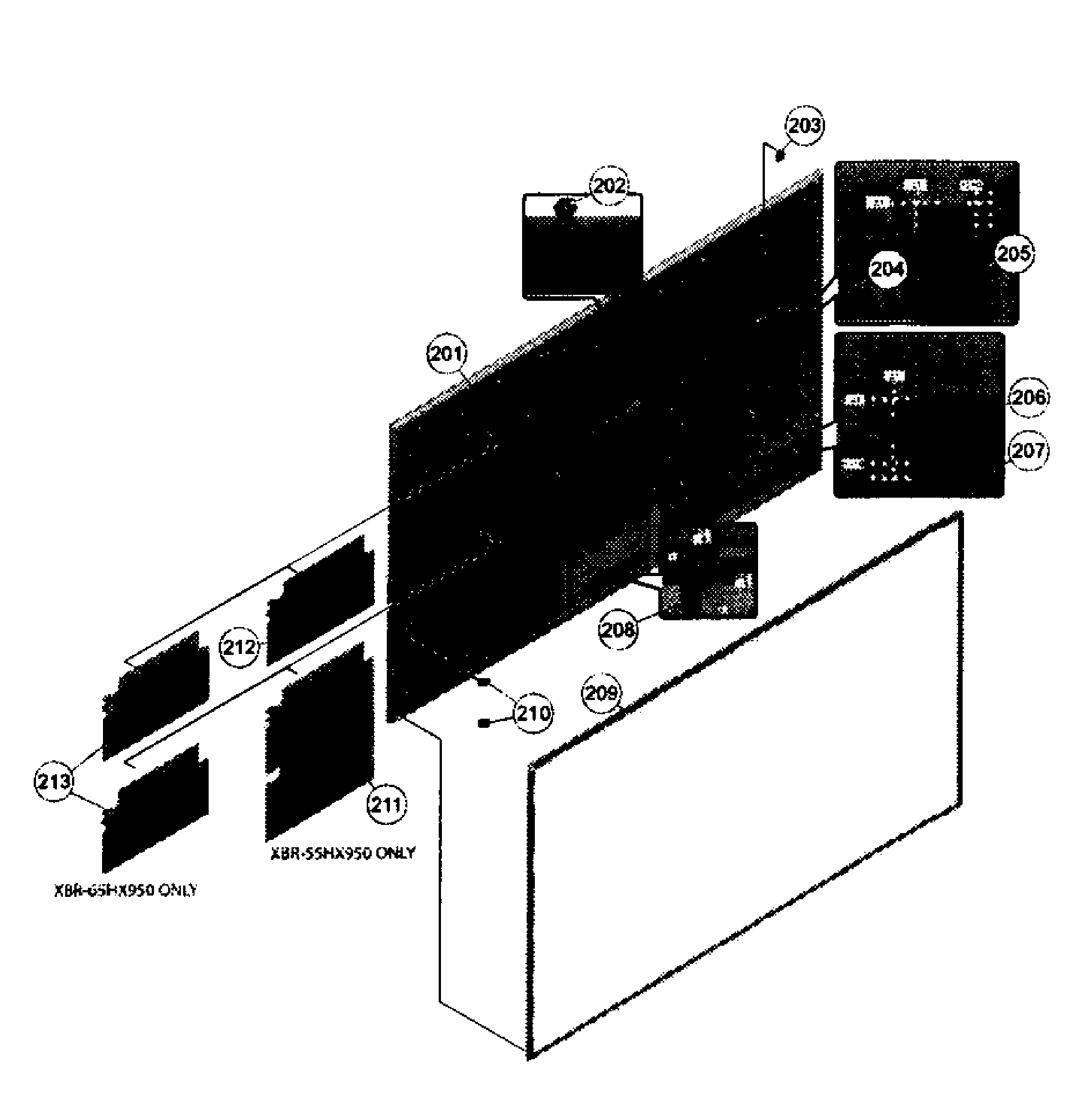

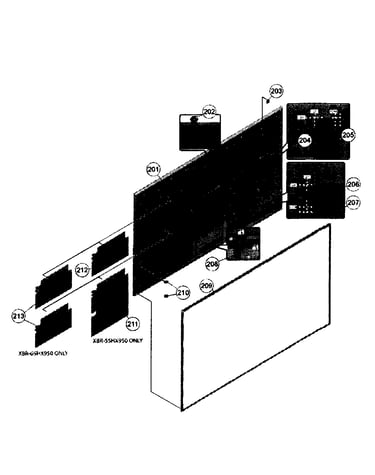

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Holder,sp 442326601
#159

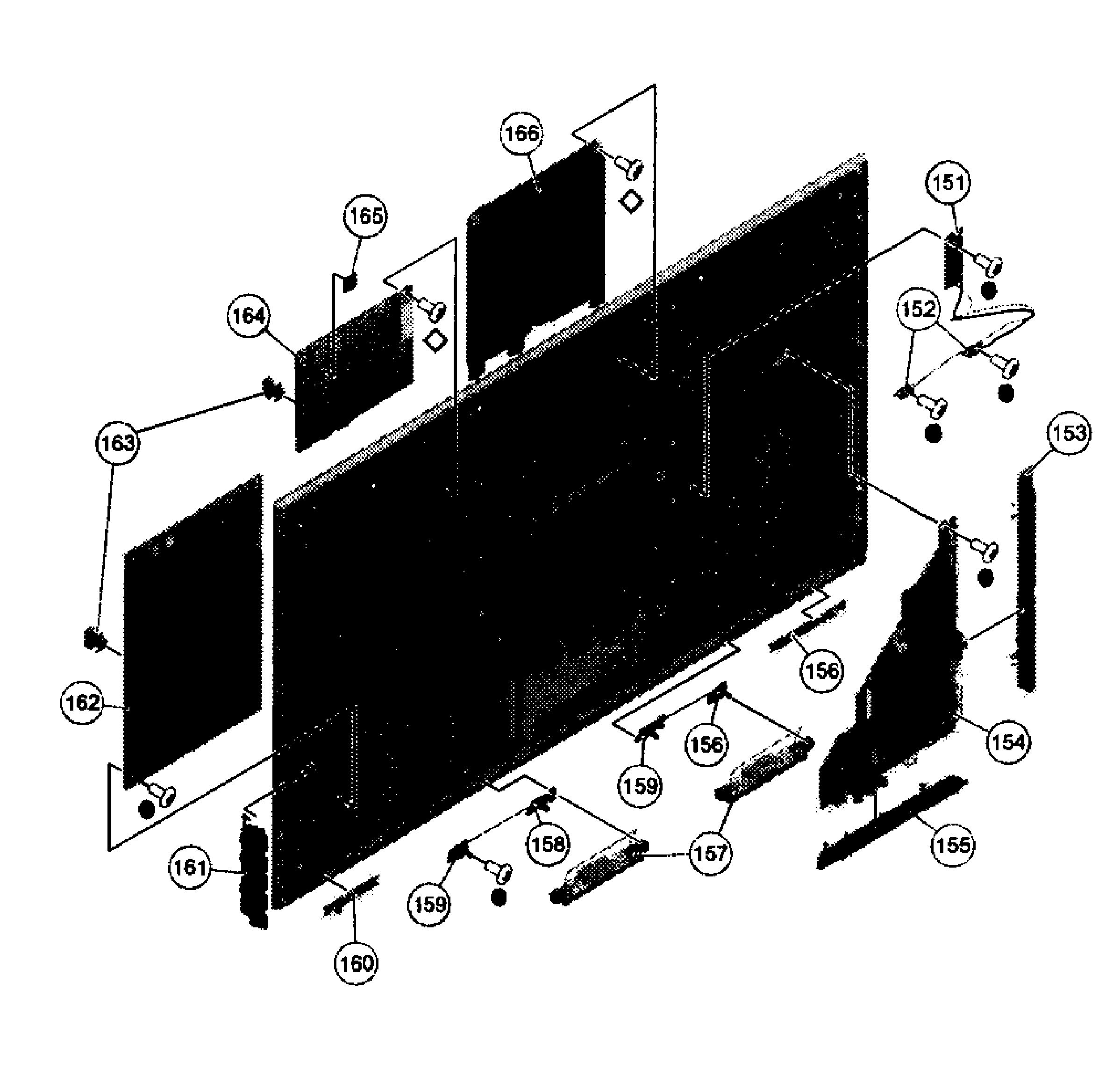

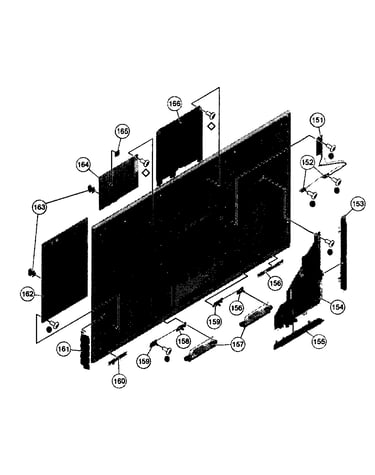

Pcb's layout diagram

Holder,sp

Part #442326601

The manufacturer no longer makes this part, and there's no substitute part

Stand Cover 442351201
#51

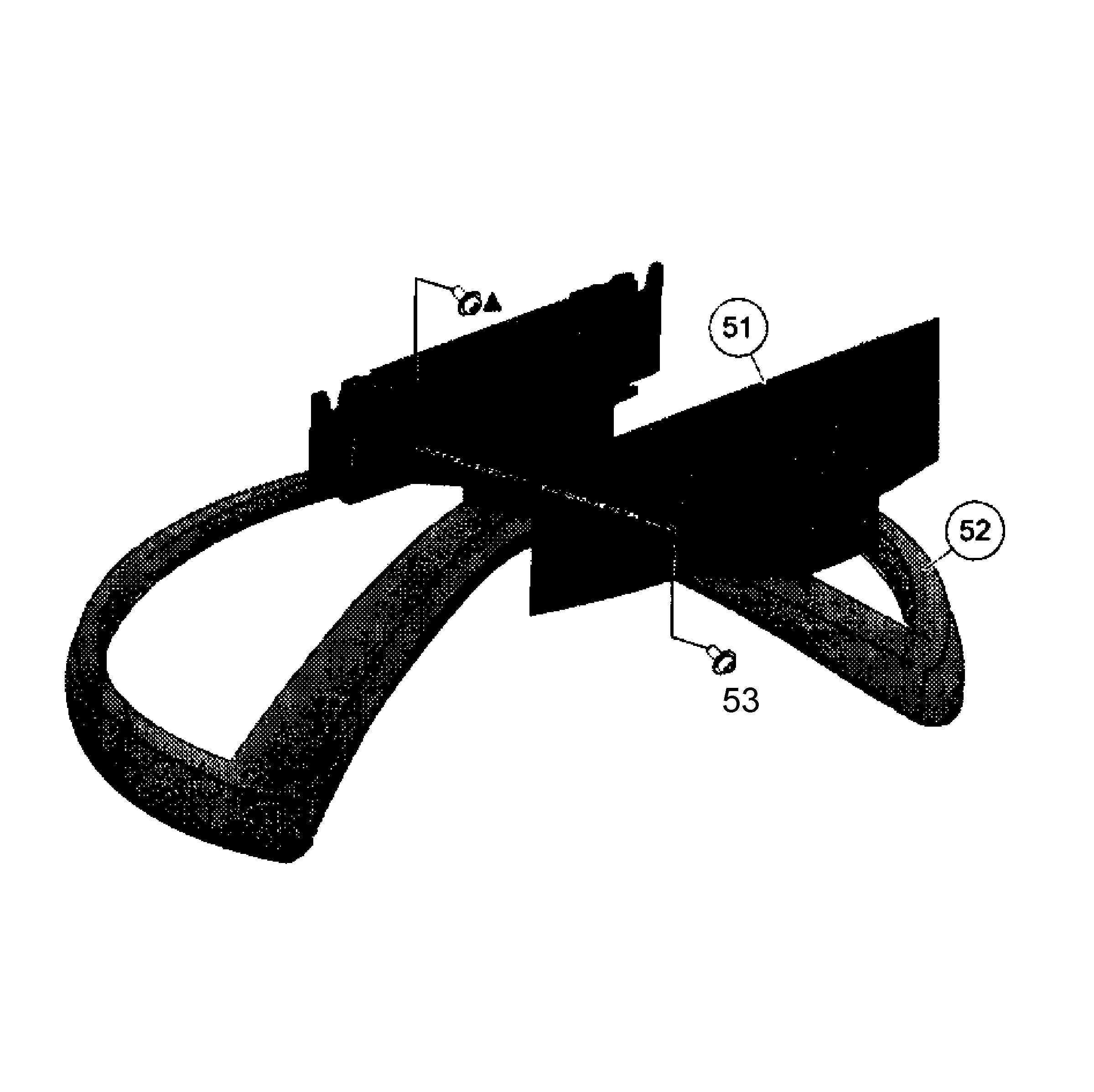

Stand diagram

Stand cover

Part #442351201

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 185878411
#157

Pcb's layout diagram

Television speaker

Part #185878411

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183967912
#107

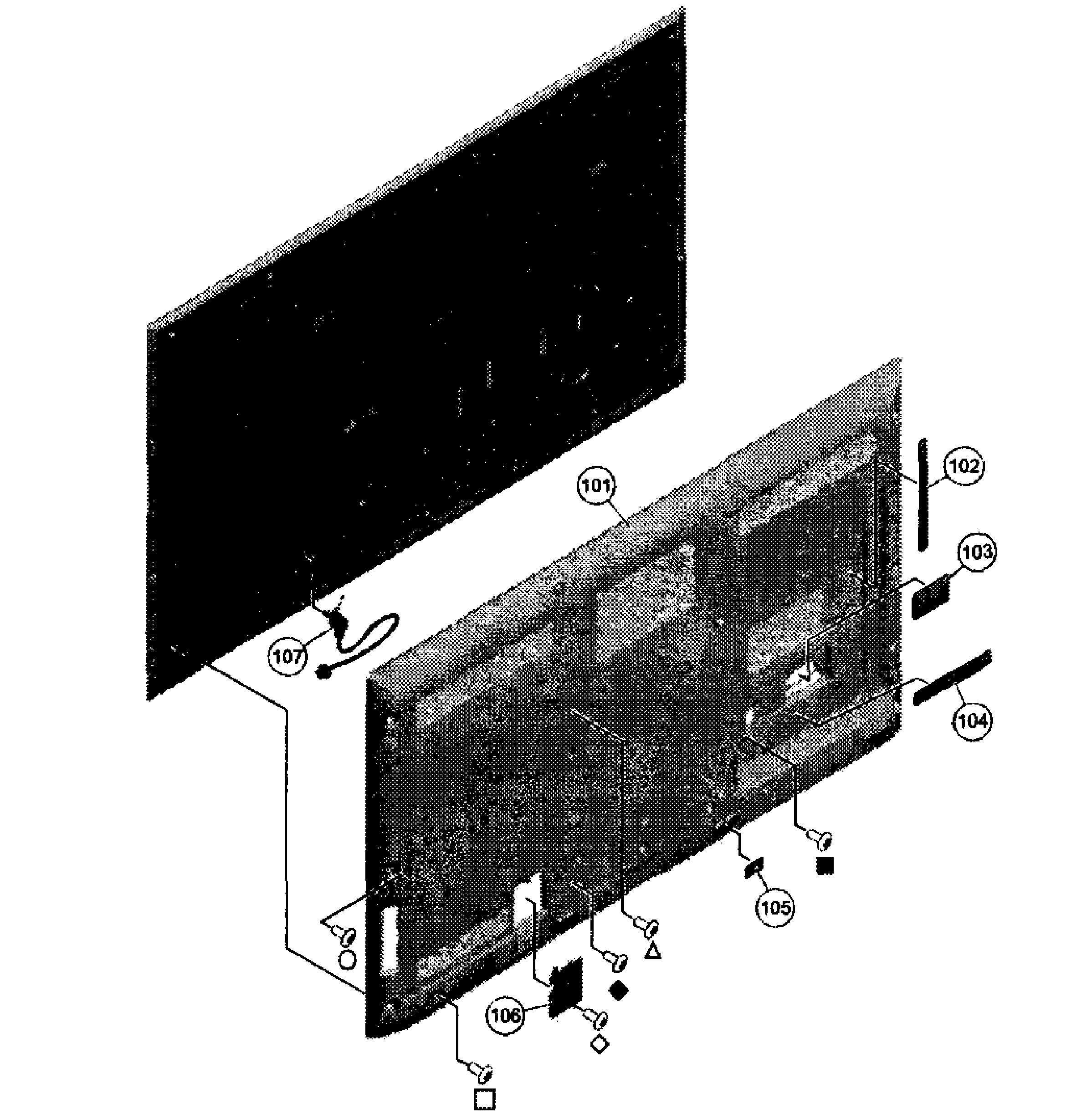

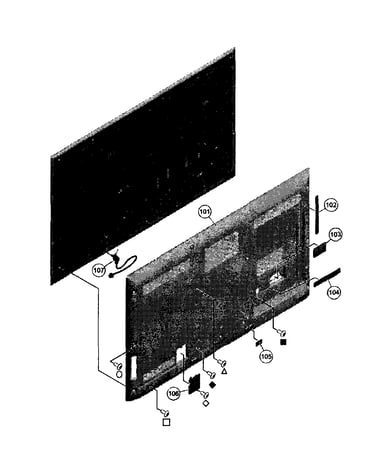

Rear assy diagram

Power cord

Part #183967912

The manufacturer no longer makes this part, and there's no substitute part

Connector 183892021
#306

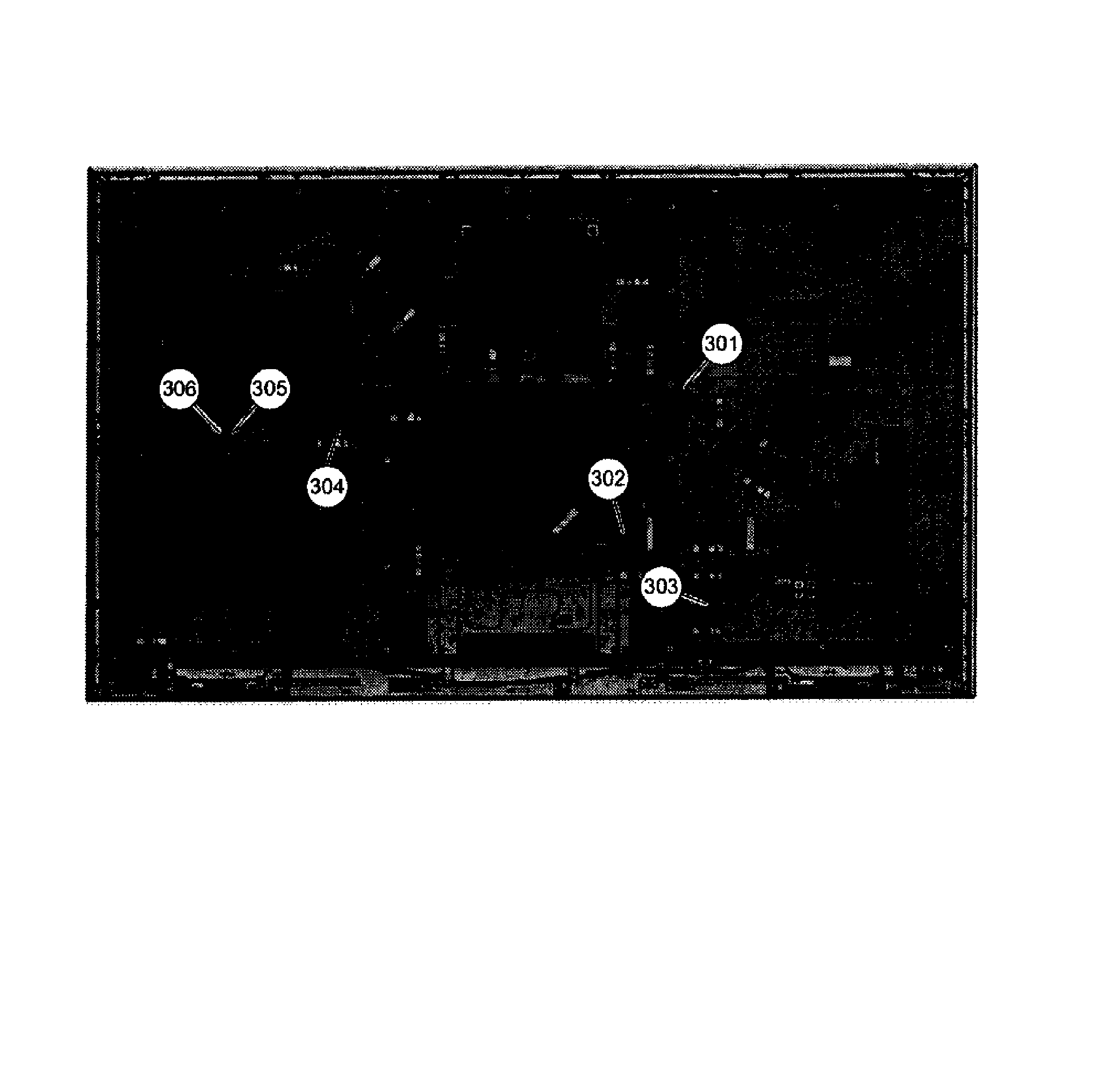

Cables diagram

Connector

Part #183892021

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 148999811
#NI

Stand diagram

Remote control

Part #148999811

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 258060801
#53

Stand diagram

Television screw

Part #258060801

The manufacturer no longer makes this part, and there's no substitute part

Brckt,undr 429950801
#155

Pcb's layout diagram

Brckt,undr

Part #429950801

The manufacturer no longer makes this part, and there's no substitute part

Label,unde 440043301
#104

Rear assy diagram

Label,unde

Part #440043301

The manufacturer no longer makes this part, and there's no substitute part

Kit Belt 442354101
#NI

Stand diagram

Kit belt

Part #442354101

The manufacturer no longer makes this part, and there's no substitute part
