Model # 21758991 Official Craftsman 5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21758991 5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

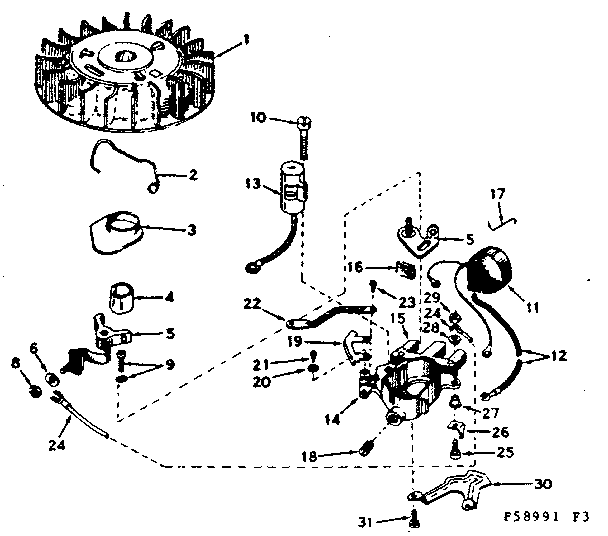

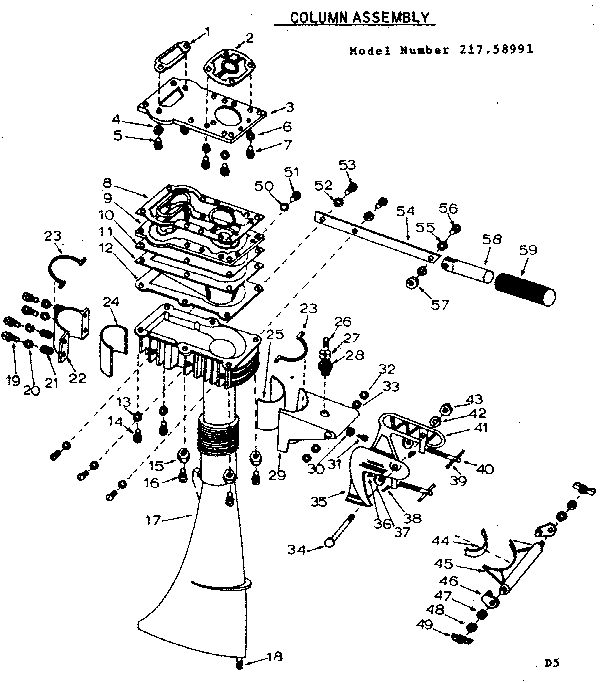

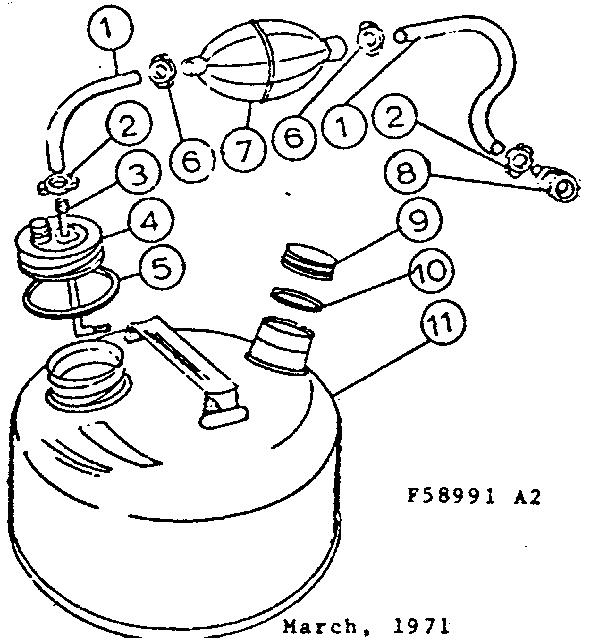

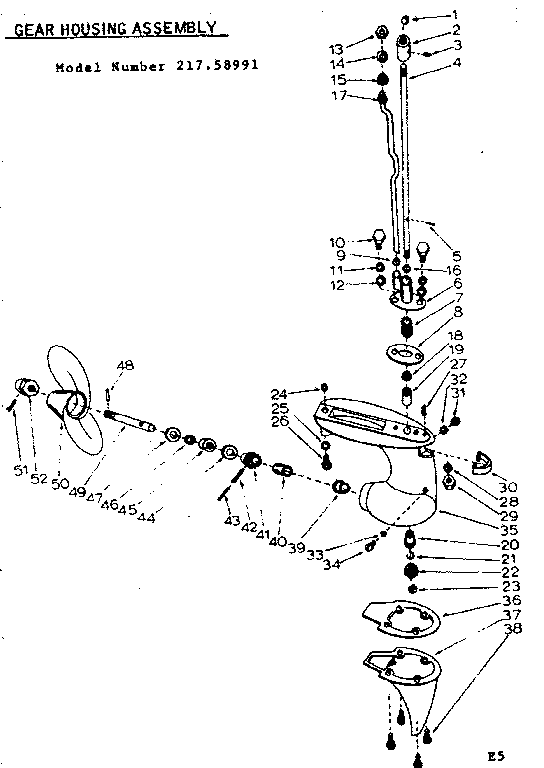

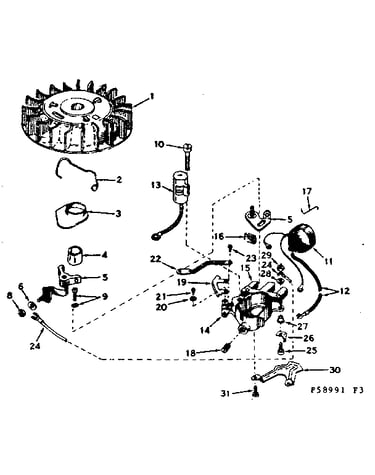

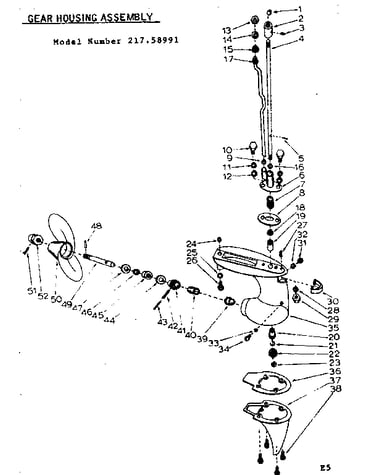

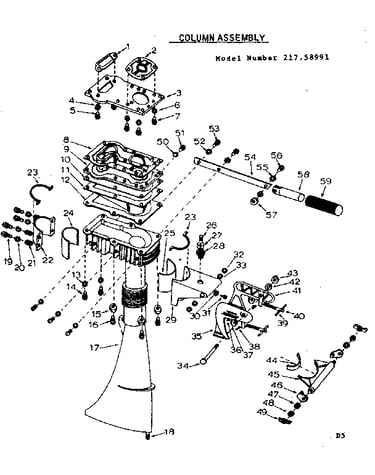

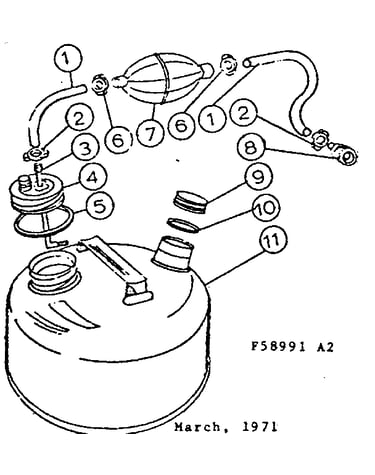

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 254 parts |

#14

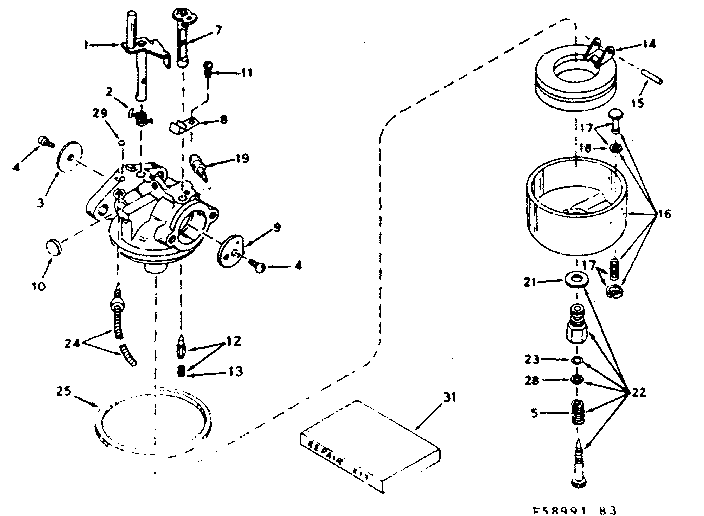

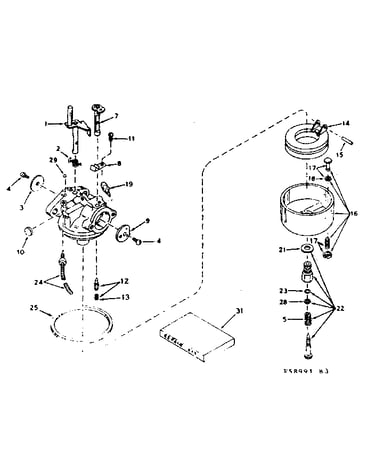

Carburetor diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

#43

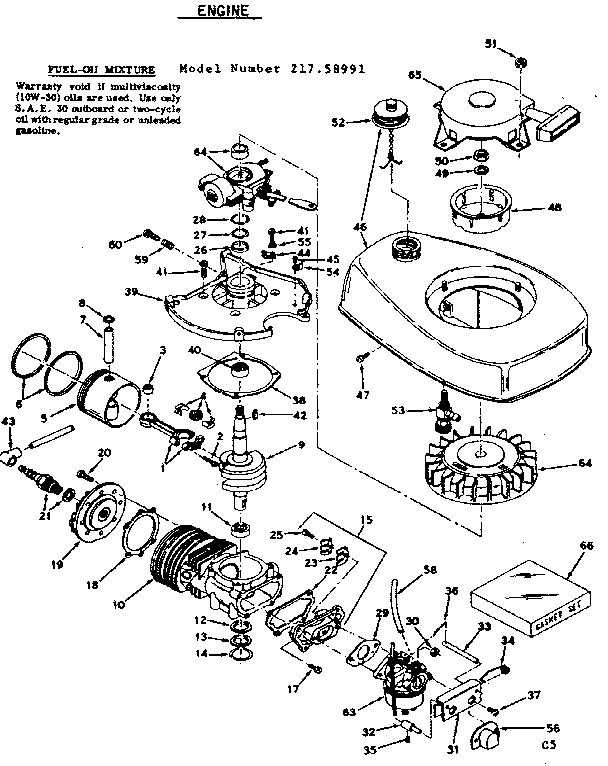

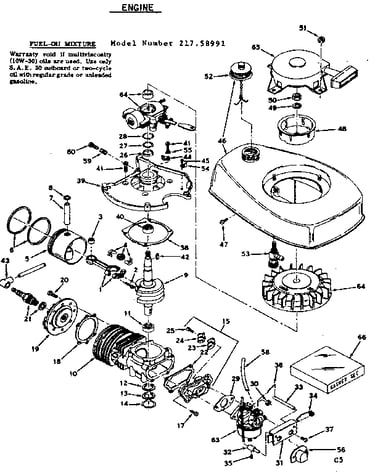

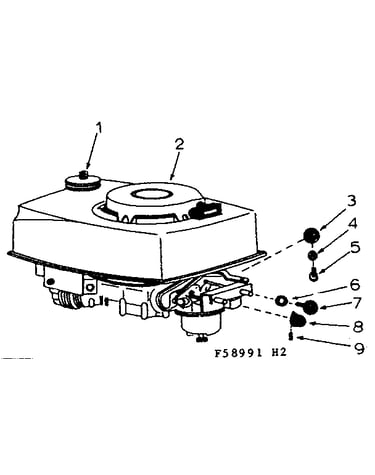

Engine diagram

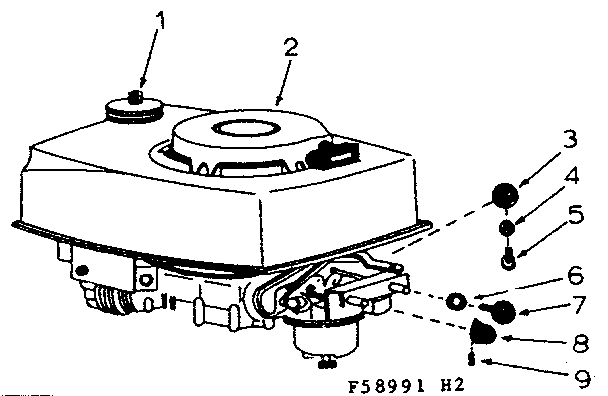

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

#29

Engine diagram

Gasket

Part #510217

The manufacturer no longer makes this part, and there's no substitute part

#53

Engine diagram

Fuel fitting

Part #29683

The manufacturer no longer makes this part, and there's no substitute part

Engine diagram

Ring set

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

#59

Engine diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

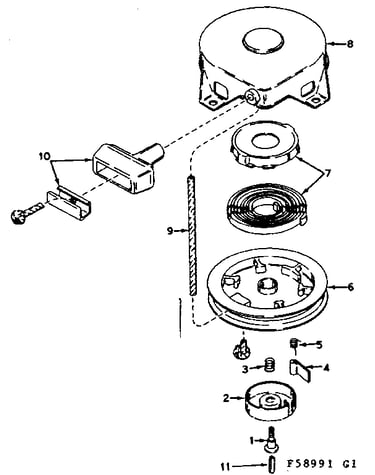

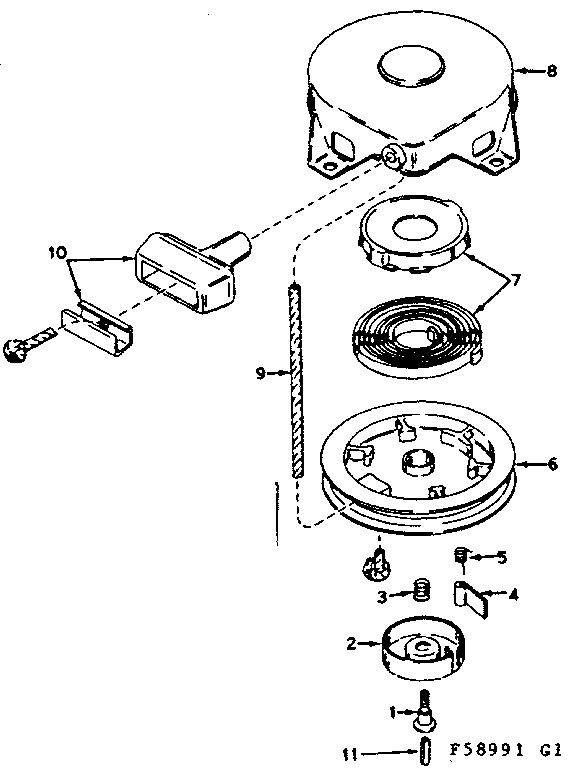

Starter

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Engine diagram

Piston

Part #310230

The manufacturer no longer makes this part, and there's no substitute part

#21

Carburetor diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

#18

Engine diagram

Gasket

Part #510274

The manufacturer no longer makes this part, and there's no substitute part
