Model # AL05A6EVA Official Gibson room air conditioner - lg34088080

Here are the diagrams and repair parts for Official Gibson AL05A6EVA room air conditioner - lg34088080, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

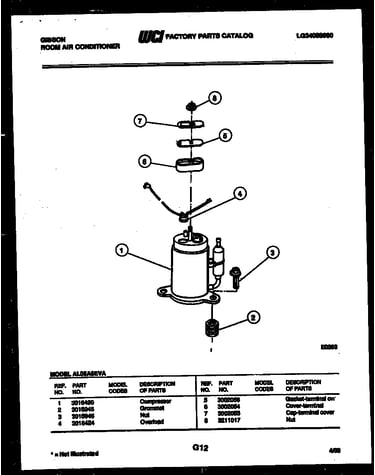

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Strainer 3002485
#4

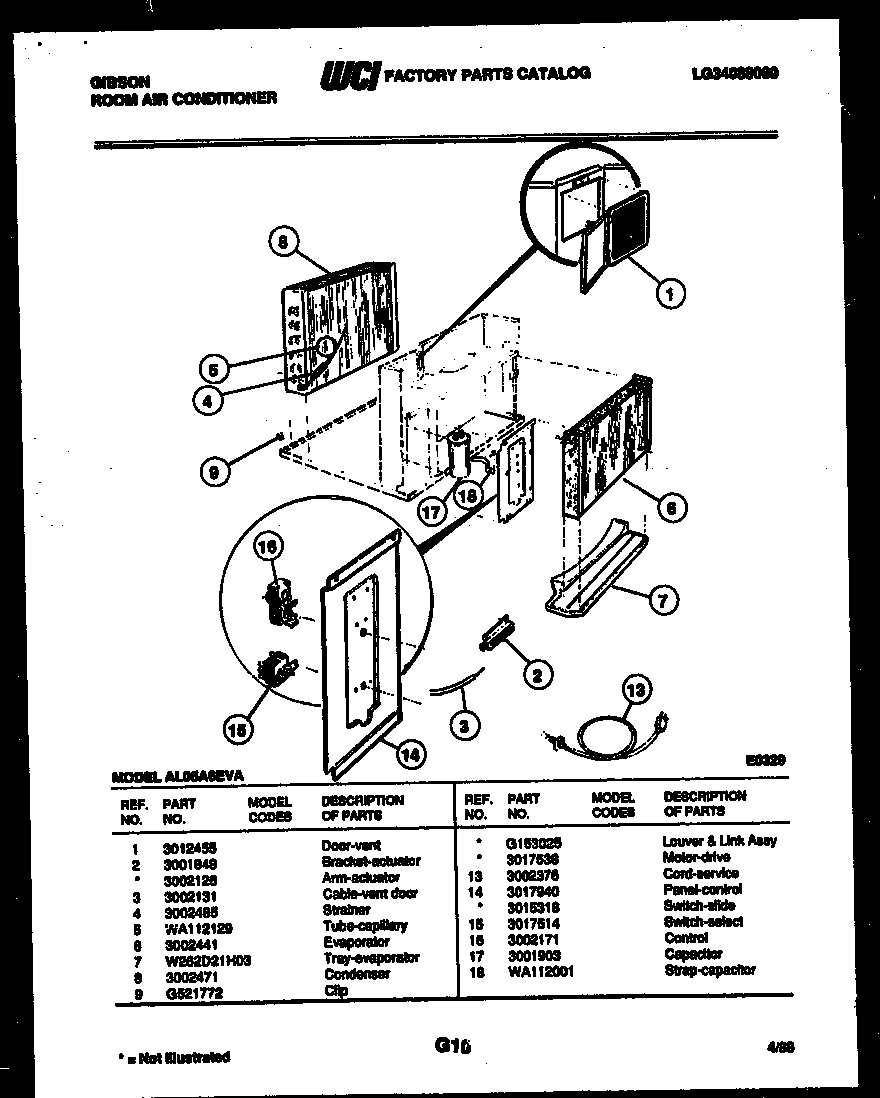

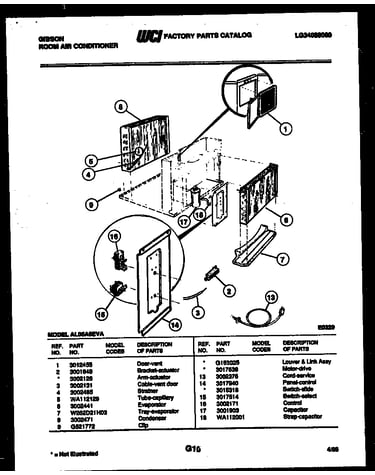

Electrical parts diagram

Strainer

Part #3002485

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3002485. Substitute parts can look different from the original.
$110.08
In Stock
Washer 3007766
#15

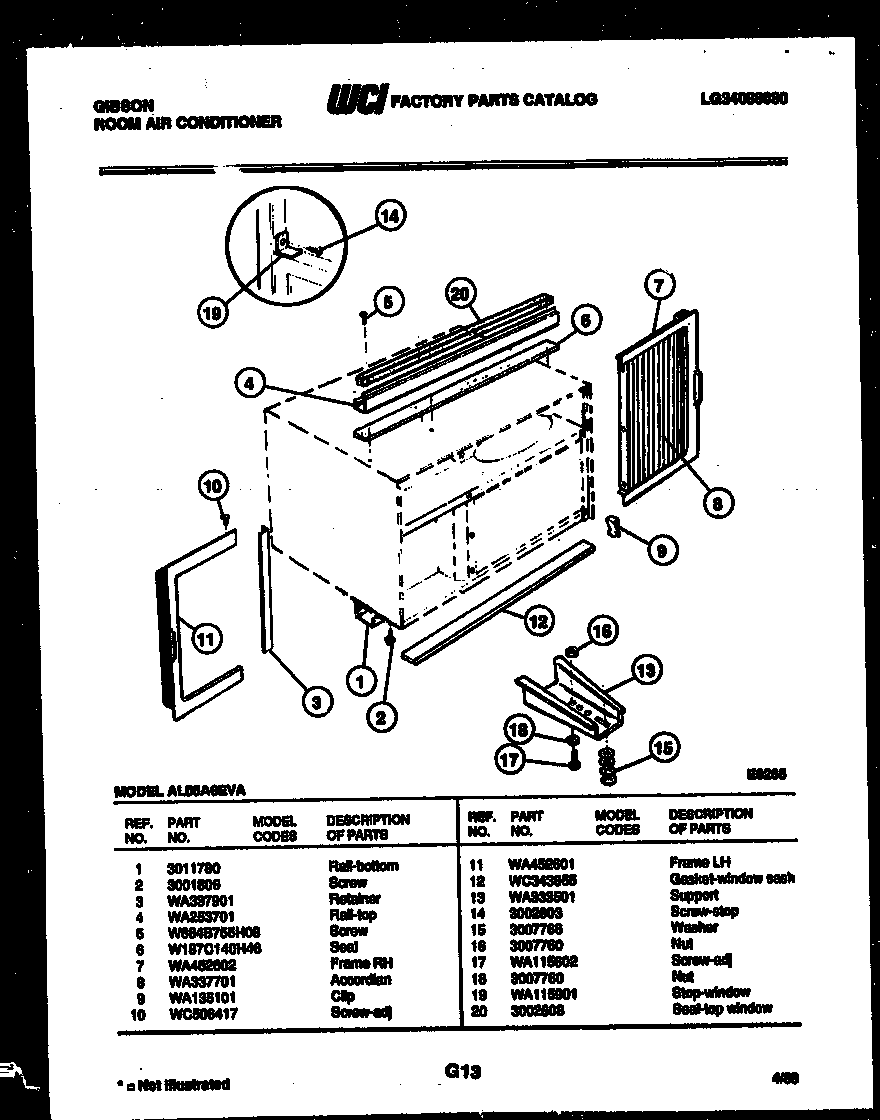

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Window Seal WC343655
#12

Cabinet and installation parts diagram

Window seal

Part #WC343655

Replaced by #5304407729

?
Manufacturer substitution
This part replaces WC343655. Substitute parts can look different from the original.
$25.17
In Stock
Support WA253701
#4

Cabinet and installation parts diagram

Support

Part #WA253701

Replaced by #08007493

?
Manufacturer substitution
This part replaces WA253701. Substitute parts can look different from the original.
$12.99
In Stock
Door 3012455
#1

Electrical parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Escutcheon 3017515
#2

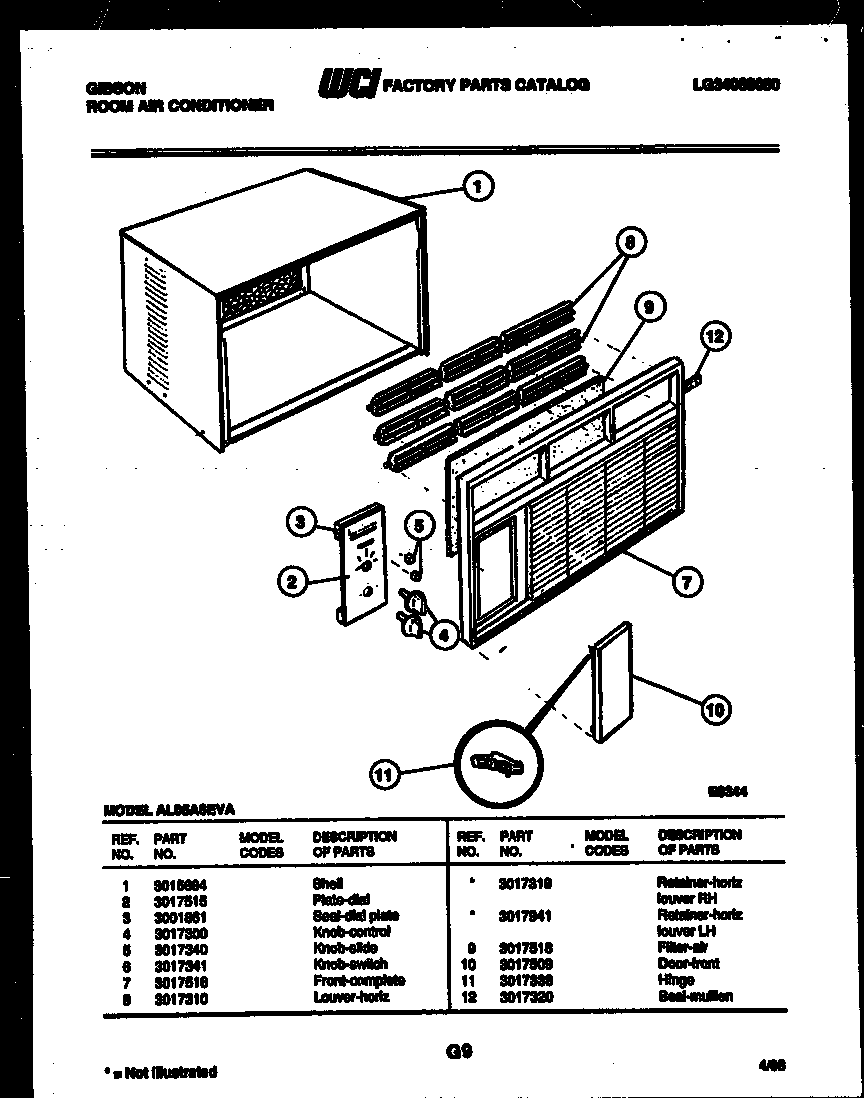

Cabinet parts diagram

Escutcheon

Part #3017515

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WA112129
#5

Electrical parts diagram

Capillary tube

Part #WA112129

The manufacturer no longer makes this part, and there's no substitute part

Shroud W2625D25H05
#4

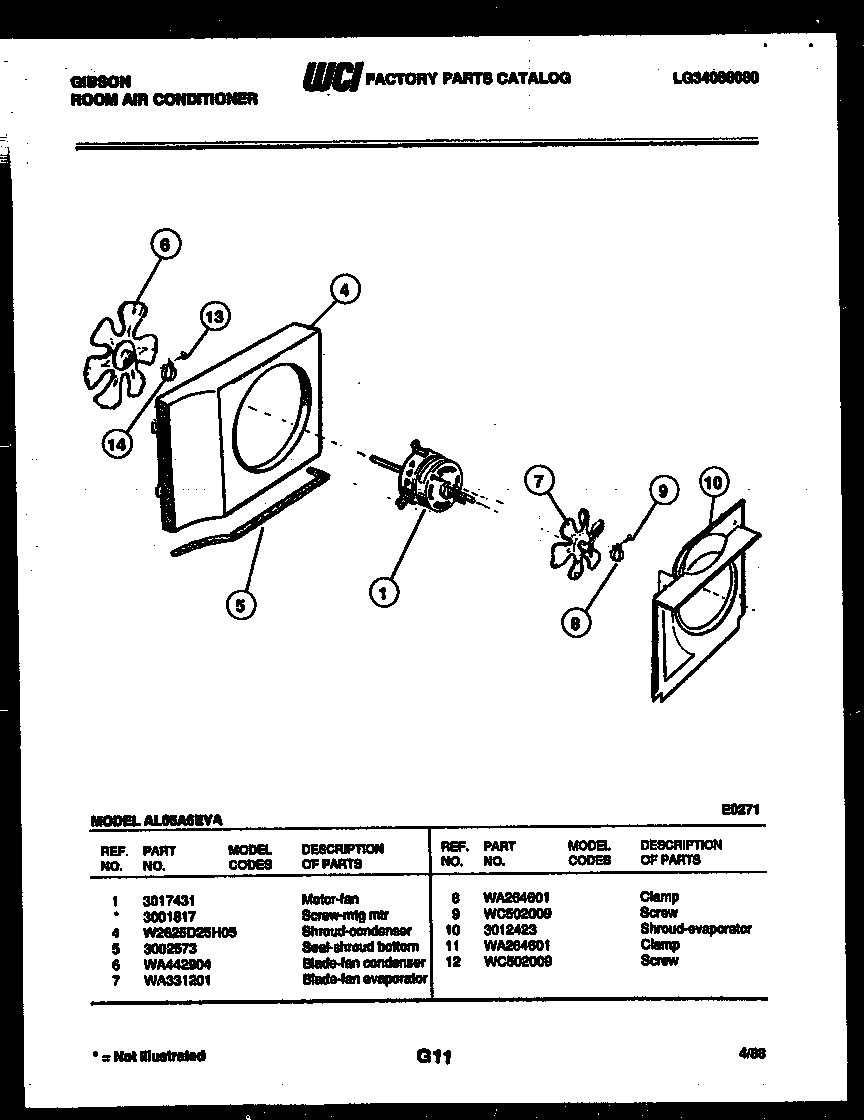

Air handling parts diagram

Shroud

Part #W2625D25H05

The manufacturer no longer makes this part, and there's no substitute part

Window Seal 3002608
#20

Cabinet and installation parts diagram

Window seal

Part #3002608

The manufacturer no longer makes this part, and there's no substitute part

Switch 3017514
#15

Electrical parts diagram

Switch

Part #3017514

The manufacturer no longer makes this part, and there's no substitute part
