Model # 328915301 Official Craftsman 17" power reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 328915301 17" power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Cotter Pin 1011S
#5

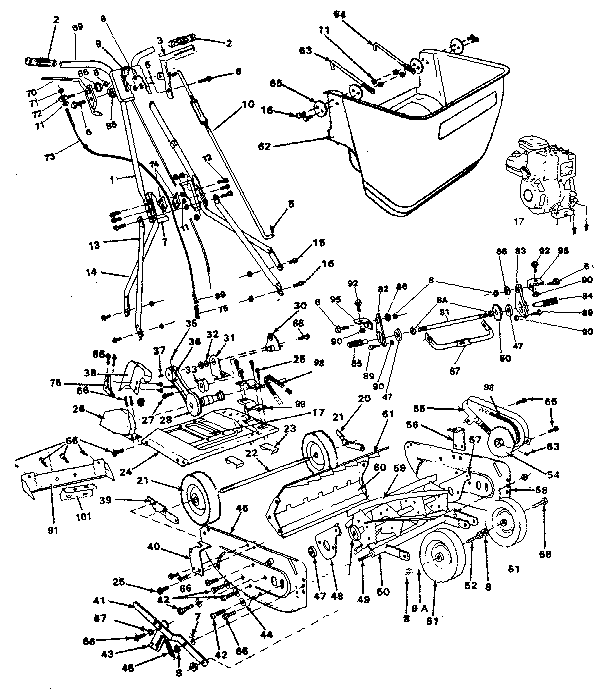

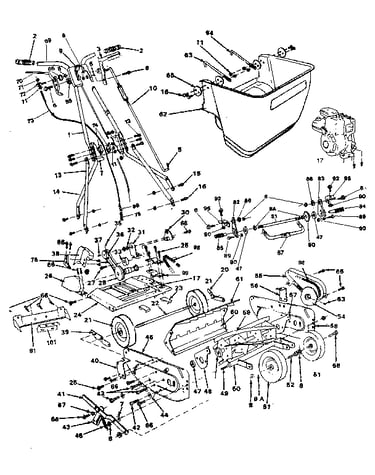

Replacement parts diagram

Cotter pin

Part #1011S

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1044S
#18

Replacement parts diagram

Bolt

Part #1044S

The manufacturer no longer makes this part, and there's no substitute part

Drive Shaft 3077S
#81

Replacement parts diagram

Drive shaft

Part #3077S

The manufacturer no longer makes this part, and there's no substitute part

Bracket 3075S
#78

Replacement parts diagram

Bracket

Part #3075S

The manufacturer no longer makes this part, and there's no substitute part

Height Adjustment Bracket 1097S
#43

Replacement parts diagram

Height adjustment bracket

Part #1097S

The manufacturer no longer makes this part, and there's no substitute part

Handle 3001S
#24

Replacement parts diagram

Handle

Part #3001S

The manufacturer no longer makes this part, and there's no substitute part

Bed Knife 3060S
#60

Replacement parts diagram

Bed knife

Part #3060S

The manufacturer no longer makes this part, and there's no substitute part

Clamp 3071S
#74

Replacement parts diagram

Clamp

Part #3071S

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1105S
#42

Replacement parts diagram

Bolt

Part #1105S

The manufacturer no longer makes this part, and there's no substitute part

Hex Adjustment 1132S
#104

Replacement parts diagram

Hex adjustment

Part #1132S

The manufacturer no longer makes this part, and there's no substitute part
