Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 698787, 790032, BS-699521, BS-796184) 796184


Part #796184

Online Price
$63.17 |
8% OFF
MSRP: $69.00
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

Helpful DIY instructions: Installation guide with video.

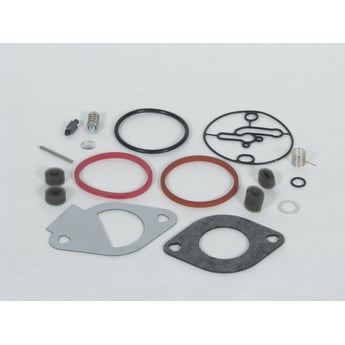

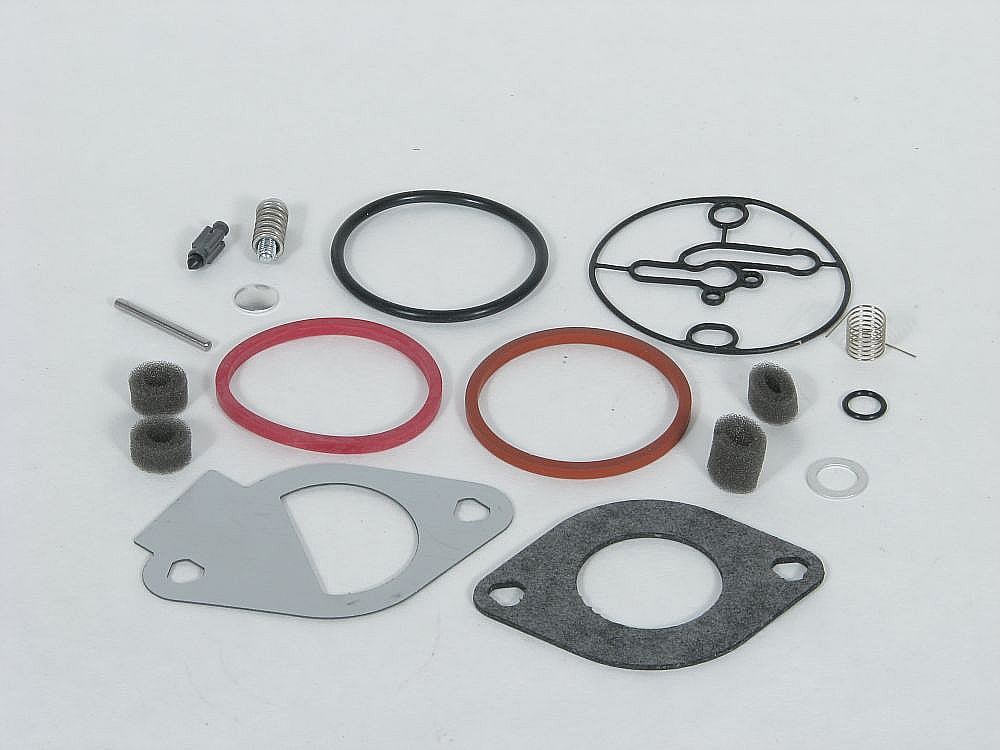

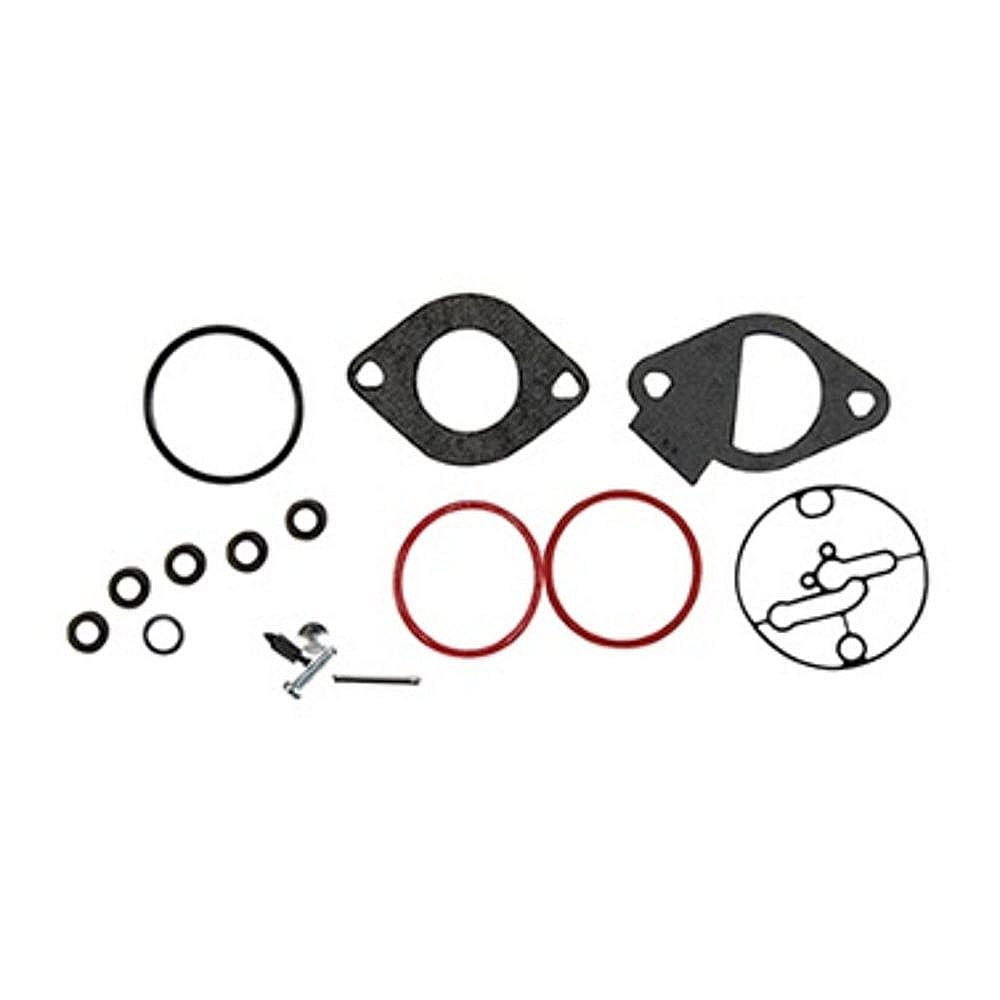

This carburetor rebuild kit (part number 796184) is for lawn and garden equipment engines.

Carburetor rebuild kit 796184 includes gaskets and parts for rebuilding the carburetor.

Work in a well-ventilated area and drain the fuel from the tank and fuel lines before rebuilding the carburetor. Wear work gloves to protect your hands during this repair.


Santa Fe NMReviews 1Votes 0
• 4 years ago
Judbe• 4 years ago
Right kit, right fit.

It was the right kit for the carburetor in need. It was relatively easy to install but I do have previous experience with small engine repair. I did appreciate and use the enclosed suggestion/link to an online small engine repair site and found good supplemental information and tips for avoiding future problems.

Bill 2018
Maynard, MAReviews 1Votes 0
• 5 years ago
Bill 2018• 5 years ago
Carberator rebuild kit for lawn tractor

Kit purchased as backup after striping down the carb after gas leak problem but having to reuse original parts. Original parts still in good shape after cleaning.

Walter S H
Howell NJReviews 1Votes 0
• 5 years ago
Walter S H• 5 years ago
Lawn Tractor NightMare

The repair was somewhat easy youndo not use all the parts

Longmont, COReviews 1Votes 0
• 5 years ago
DeterminedDoug• 5 years ago
All the Parts You Need But Inadequate Instructions

The somewhat generic written instructions on the Craftsman parts website were helpful, but incomplete. Help in the form of 3rd party YouTube videos and general rebuilding Q&A websites were essential in my successful completion of this project. I have previously rebuilt car carburetors and am a pretty good amateur mechanic. This rebuild took me about two hours. I was not 100% confident the carb would work after the rebuild, but my tractor fired right up and worked perfectly!

Ma.Reviews 2Votes 0
• 2 years ago
John• 2 years ago
Carb rebuild kit

The parts all fit exactly. They came in a sealed package that kept them in good condition.

Not a small motor guy
Reviews 1Votes 0
• 4 years ago
Not a small motor guy• 4 years ago
Fixed the problem

Had what I think was a float valve issue. The rebuild kit took care of the problem. Took a lot of pictures before disassembly and also notes as I was going along otherwise reassembly could be a nightmare. First carb fix- happy! :)

Palmdale CaliforniaReviews 2Votes 1
• 4 years ago
Carrollboats• 4 years ago
Poor packaging

Chat with Keith got a YouTube video on how to use this kit otherwise there was no instructions and nothing to identify the parts

Brunswick, GaReviews 1Votes 0
• 5 years ago
JimKim• 5 years ago
Directions with it would have helped.

Instructions on rebuilding would have been nice and too many parts in kit. Some parts were not anywhere on my carb so where they went I have no idea. This is where instructions would have helped, did I miss something? I hate paying for a universal kit with parts I don't need.
