How to rebuild a riding lawn mower carburetor

By Lyle Weischwill
How to rebuild a riding lawn mower carburetor

This DIY riding mower repair guide gives step-by-step instructions for rebuilding the carburetor on a riding lawn mower. The carburetor blends air and fuel to produce a combustible mixture for the engine cylinder. If the carburetor runs rough because it's clogged or dirty, you can clean and rebuild it, using a manufacturer-approved replacement kit. The kit includes gaskets, seals, a hinge pin and other components that you might need to replace. You probably won't use every part in the carburetor kit. In this repair, you use the fuel bowl gasket, mounting gasket and hinge pin.

Use these steps to rebuild the carburetor on common Briggs & Stratton engines that power Craftsman, Troybilt, Husqvarna, MTD, Poulan, Toro, Murray, Snapper, Yard-Man and John Deere riding mowers and lawn tractors.

If the riding mower carburetor is too corroded, dirty or damaged to rebuild, you can replace it with a new one. See How to Replace a Carburetor in a Riding Lawn Mower.

Quick links
Tools required
Wrench set
Nut driver set
Punch set
Hammer
Pliers
Hose pinch-off pliers
Carburetor cleaner
Compressed air
Thin wire or paper clip
Shop rags
Fuel-safe container
Petroleum jelly
safety goggles
Work gloves
Repair difficulty
Time required
60 minutes or less
Repair difficulty
Time required
60 minutes or less
Rebuilding a riding lawn mower carburetor

This video explains how to rebuild the carburetor in a riding lawn mower.

Instructions

  1. 01.

    Disconnect the battery

    Park the tractor on a level surface in a well-ventilated area and set the parking brake.

    Turn the ignition switch off and remove the key.

    Let the engine cool.

    Wear work gloves to protect your hands and safety goggles to protect your eyes.

    Lift the seat.

    Remove the bolt connecting the negative cable to the battery and tuck the cable away from the battery so it doesn't touch the battery post.

    Disconnect the negative battery cable.

    Disconnect the negative battery cable.

  2. 02.

    Remove the engine blower housing

    Lift the tractor hood.

    Remove the air duct mounting screws and pull off the air duct.

    Turn each air filter cover retaining knob counterclockwise and pull off the air filter cover.

    Remove the air filter.

    Remove the air filter housing screw.

    Remove the front and rear blower housing mounting bolts and lift off the blower housing.

    Tip: Remove the hood to gain more room to work.
    Lift off the blower housing.

    Lift off the blower housing.

  3. 03.

    Disconnect the fuel line

    Clamp off the fuel line with hose pinch-off pliers.

    Place a shop rag under the carburetor end of the fuel line to catch drips.

    Release the clamp that attaches the fuel line to the carburetor and pull the fuel line off the carburetor.

    Wipe up any spilled fuel.

    Clamp off the fuel line with hose pinch-off pliers.

    Clamp off the fuel line with hose pinch-off pliers.

  4. 04.

    Remove the carburetor

    Remove the air intake mounting nuts.

    Detach the breather tube and remove the air intake.

    Disconnect the wire from the fuel solenoid.

    Take a digital photograph of the carburetor linkage connections to document their location for reassembly.

    Remove the carburetor mounting studs.

    Disconnect the throttle rod and the throttle spring.

    Disconnect the choke rod.

    Pull off the carburetor and place it on a clean work surface in a well-ventilated area.

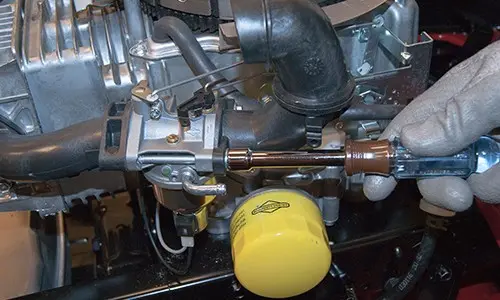

    Remove the carburetor.

    Remove the carburetor.

  5. 05.

    Remove components

    Unthread the solenoid valve and remove it.

    Remove the float bowl, draining fuel from the float bowl into the fuel-safe container.

    Punch out the float hinge pin.

    Remove the float and needle valve.

    Remove the float bowl gasket, engine intake gasket and air intake O-ring.

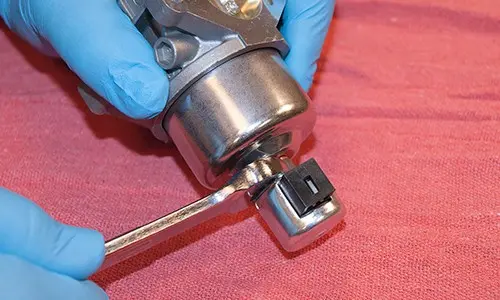

    Remove the fuel solenoid valve.

    Remove the fuel solenoid valve.

  6. 06.

    Clean the carburetor

    Clean the float bowl and gasket seating surfaces using carburetor cleaner and a shop rag.

    Use a paper clip to remove any float bowl gasket and air intake O-ring residue.

    Use carburetor cleaner and a paper clip to clean all the holes in the carburetor, paying close attention to the main and idle jets.

    Let the carburetor dry completely before reassembling it (at least 10 minutes).

    Clean the carburetor.

    Clean the carburetor.

  7. 07.

    Reassemble the carburetor

    Lubricate the new float bowl gasket with a small amount of petroleum jelly.

    Install the new float bowl gasket.

    Install the new needle valve.

    Reattach the float with the new hinge pin.

    Attach the float bowl with the solenoid valve.

    Install the new air intake O-ring.

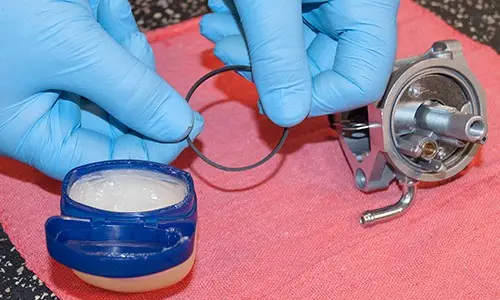

    Lubricate the bowl gasket.

    Lubricate the bowl gasket.

  8. 08.

    Install the rebuilt carburetor

    Position the rebuilt carburetor near the engine and reconnect the choke rod.

    Connect the throttle rod and spring.

    Install the new intake gasket on the engine.

    Attach the carburetor on the engine with the mounting studs. Tighten the studs firmly.

    Connect the fuel solenoid wire.

    Attach the breather tube to the air intake and connect the air intake to the carburetor.

    Install the air intake mounting nuts.

    Reattach the fuel line to the carburetor with the hose clamp.

    Release and remove the hose clamp pliers from the fuel line.

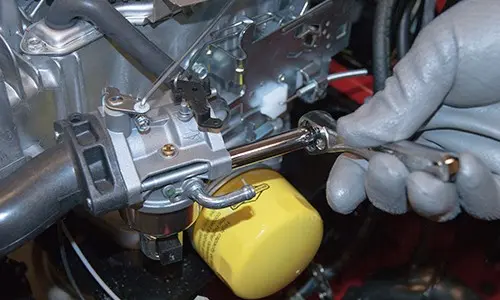

    Install the rebuilt carburetor.

    Install the rebuilt carburetor.

  9. 09.

    Connect the fuel line

    Attach the fuel line to the carburetor.

    Remove the hose pinch-off pliers from the fuel line.

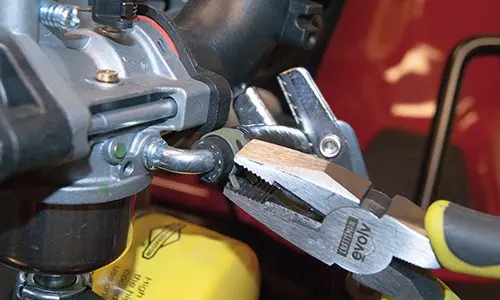

    Connect the fuel line.

    Connect the fuel line.

  10. 10.

    Reinstall the engine blower housing

    Position the blower housing on the engine and align the air diverter in the housing.

    Install the blower housing mounting bolts.

    Install the air filter housing screw.

    Install the air filter and air filter cover.

    Install the air duct and attach it with the mounting screws.

    Lower the tractor hood.

    Reinstall the blower housing.

    Reinstall the blower housing.

  11. 11.

    Connect the battery

    Reconnect the negative cable to the negative battery terminal.

    Lower the seat.
