CONFIRM THE PART FITS
Part Information

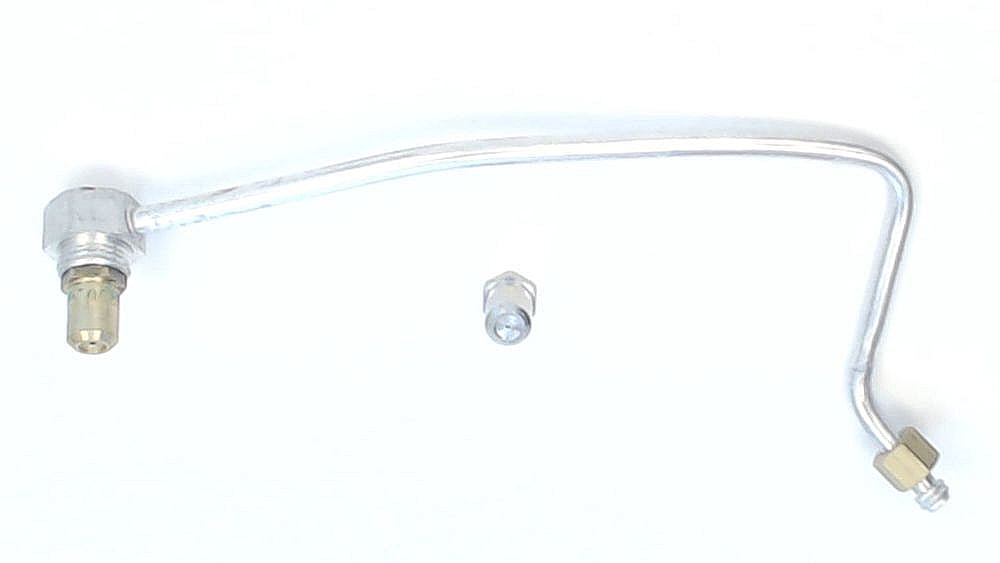

This burner tube with orifice (part number 12200047) is for cooktops.
Burner tube with orifice 12200047 supplies gas to the surface burner and includes the orifice that regulates burner gas flow.
Unplug the cooktop and shut off the gas supply before installing this part. Wear work gloves to protect your hands.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #CVG316B Jenn-Air gas cooktop | CVG316B | Body |
Model #CVG316W Jenn-Air gas cooktop | CVG316W | Body |
Model #CVG4100B Jenn-Air gas cooktop | CVG4100B | Body |
Model #CVG4280B Jenn-Air gas cooktop | CVG4280B | Body |
Model #CVG4280S Jenn-Air gas cooktop | CVG4280S | Body |
Model #CVG4380W Jenn-Air gas cooktop | CVG4380W | Body (cvg4380b) (cvg4380w) |
Model #CVG4380 Jenn-Air gas cooktop | CVG4380 | Body (cvg4380b) (cvg4380w) |
Model #CVG4380B Jenn-Air gas cooktop | CVG4380B | Body (cvg4380b) (cvg4380w) |
Model #CVG4280W Jenn-Air gas cooktop | CVG4280W | Body |
