Lawn Mower Lower Handle 169708X479
Part #169708X479
Part Information

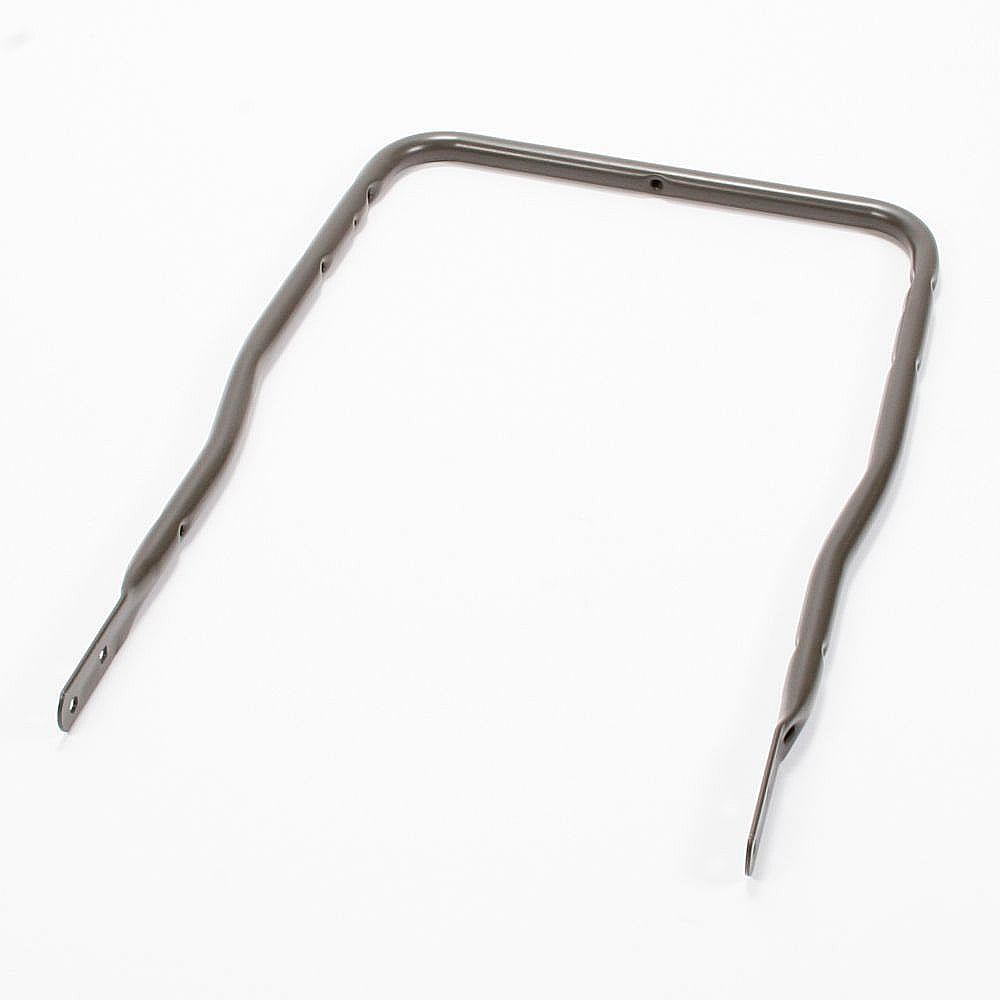

This lower handle (part number 169708X479) is for lawn mowers.
Lower handle 169708X479 attaches to the handle brackets on the mower deck and the upper handle for pushing the lawn mower.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #917388330 Craftsman gas walk-behind mower | 917388330 | Rotary lawn mower |
| Model #96134000600 Weed Eater gas walk-behind mower | 96134000600 | Lawn mower |
| Model #96132005600 Weed Eater gas walk-behind mower | 96132005600 | Rotary mower |
| Model #A149K21 (96136000602) Ariens gas walk-behind mower | A149K21 (96136000602) | Lawn mower |
| Model #96136000603-2009 Ariens gas walk-behind mower | 96136000603-2009 | Lawn mower |
| Model #388162 Weed Eater gas walk-behind mower | 388162 | Lawn mower |
| Model #96136000602 Ariens gas walk-behind mower | 96136000602 | Lawn mower |
| Model #917371751 Craftsman gas walk-behind mower | 917371751 | Lawn mower |
| Model #388171 Weed Eater gas walk-behind mower | 388171 | Lawn mower |
| Model #WM5N21SA Weed Eater gas walk-behind mower | WM5N21SA | Housing/handle/engine/wheels |
Reviews
Piece of cake. A no brainer.
Removed two bolts (one on each side) connecting upper handle to lower handle. Removed cotter pins holding lower handle to mower deck. Attached lower handle to mower deck, re-installed cotter pins, attached lower handle to upper handle (two bolts.) That's it. Tools required: pair of pliers to remove cotter pins. No tools required to separate upper/lower handle.
Eddieshortsleeves, Stanton, New Jersey
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Easy to install.
It was easy to install and only took 30 min. Don't lose the hairpin cotters.
hunter b, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy to Install
Took less than 15 minutes to install.
mwt53, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
easy to install
the handle was easy to install.remove wing nuts in the middle of the upper and lower mower handles.pull the two clips on the lower handle at the mower base.remove the old lower handle and install the new by inserting one side of the handle on the mower base stud and sqeeze the handle to fit on the other base stud.i did have a problem with the wing nut re-installation due to holes in the new lower handle.the holes are higher on the new lower handle towards the bends which made it impossible to connect the the stiffener bolt wing nut assembly.to resolve I installed the stiffener bolt assembly inside the handle to avoid elongating the drill holes weakening the handle assy.not ideal but works.
spanky1098, maryland
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
