CONFIRM THE PART FITS
Part Information
Choose this manufacturer-approved control board for your residential dryer.

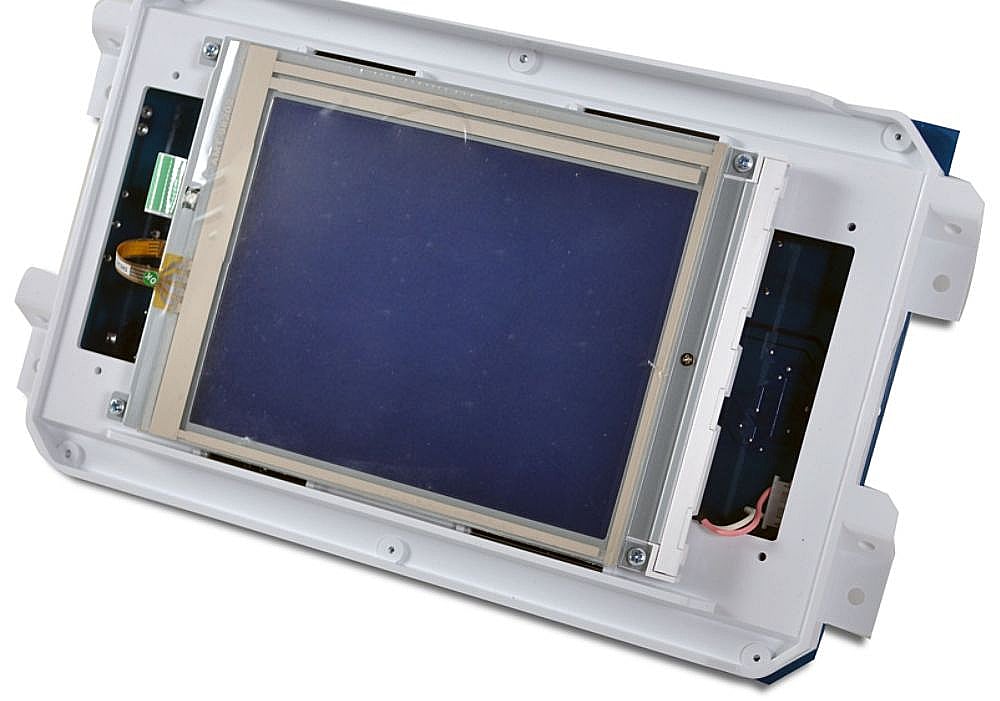

This control board for a residential dryer allows users to select dryer cycles, times and temperatures.
- Unplug the dryer before beginning to install this replacement control board. Then remove the screws from the top of the control panel and roll the panel forward. Detach the membrane pad harness and other wires from the microprocessor board and remove the mounting screws that secure the old board to the wall of the control panel.
- Always handle the board by its edges and wear an antistatic bracelet or completely ground yourself while doing the installation. The board is very sensitive to static discharges.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #MDE7500AZQ Maytag dryer | MDE7500AZQ | Control panel & cabinet |
| Model #MDG7500AWW Maytag dryer | MDG7500AWW | Control panel & cabinet |
| Model #MDE9800AYQ Maytag dryer | MDE9800AYQ | Control panel & top |
| Model #MDE9800AZW Maytag dryer | MDE9800AZW | Control panel & top |
| Model #MDG9800AWW Maytag dryer | MDG9800AWW | Control panel & top |
| Model #MDE7500AYW Maytag dryer | MDE7500AYW | Control panel & cabinet |
| Model #MDE7500AYQ Maytag dryer | MDE7500AYQ | Control panel & cabinet |
| Model #MDE9800AYW Maytag dryer | MDE9800AYW | Control panel & top |
| Model #MDG7500AWQ Maytag dryer | MDG7500AWQ | Control panel & cabinet |
| Model #MDG9800AWQ Maytag dryer | MDG9800AWQ | Control panel & top |
