Model # 486262351 Official Craftsman gtv & full feature weight bracket kit

Here are the diagrams and repair parts for Official Craftsman 486262351 gtv & full feature weight bracket kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

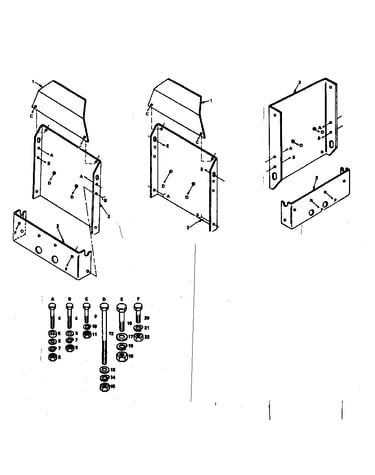

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Lock Washer, 5/16-in, 8-pack STD551131
#10

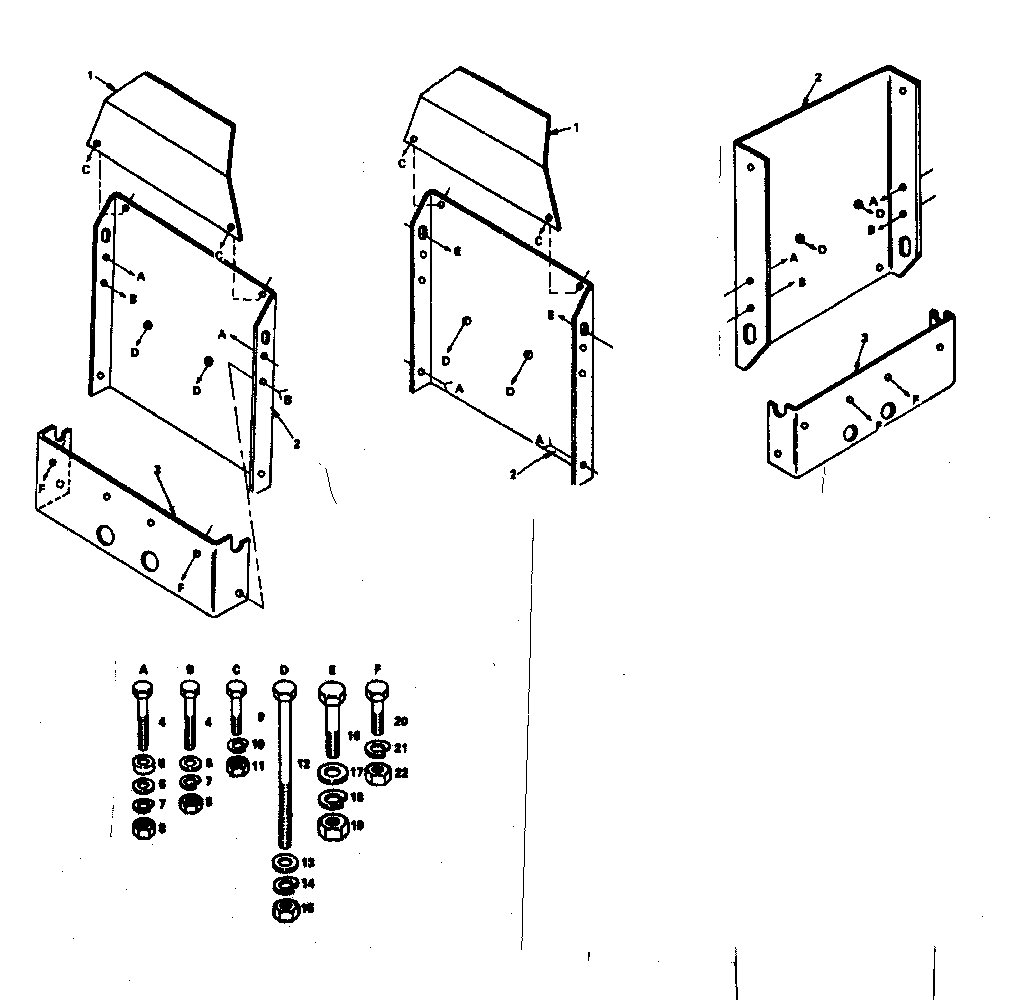

Replacement parts diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Washer 19131316
#6

Replacement parts diagram

Washer

Part #19131316

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#9

Replacement parts diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 712-0261
#19

Replacement parts diagram

Hex nut

Part #712-0261

Replaced by #912-0261

?
Manufacturer substitution
This part replaces 712-0261. Substitute parts can look different from the original.
This item is not returnable
In Stock
Snow Blade Attachment Hex Bolt 710-0367
#16

Replacement parts diagram

Snow blade attachment hex bolt

Part #710-0367

Replaced by #41614

?
Manufacturer substitution
This part replaces 710-0367. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bolt STD523712
#4

Replacement parts diagram

Bolt

Part #STD523712

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 43772

#NI

All parts diagram

Owner's manual

Part #43772

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541037
#8

Replacement parts diagram

Nut

Part #STD541037

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551062
#17

Replacement parts diagram

Washer

Part #STD551062

The manufacturer no longer makes this part, and there's no substitute part

Bracket 678H303
#3

Replacement parts diagram

Bracket

Part #678H303

The manufacturer no longer makes this part, and there's no substitute part
