Model # 143216172 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143216172 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

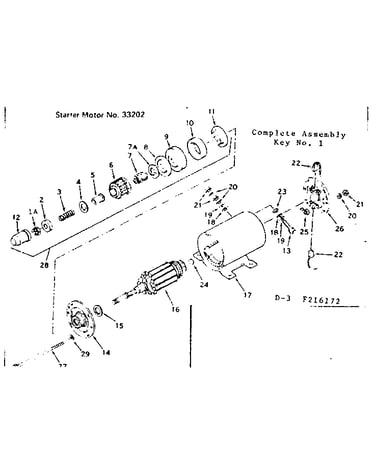

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for143216172 4-Cycle Engine

  • Gasket 27110
    #20

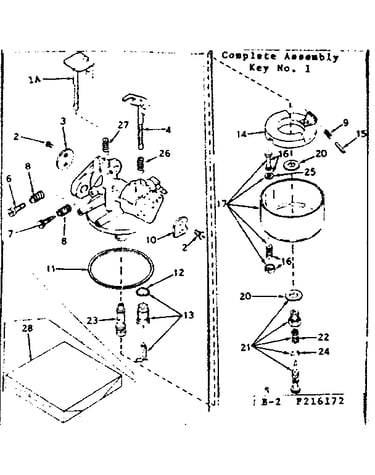

    Carburetor diagram

    Gasket

    Part #27110

    Replaced by #27110A

    ?
    Manufacturer substitution
    This part replaces 27110. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $2.49
    29% OFF Phone Price : $3.49
    Back Order
  • Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
    #99

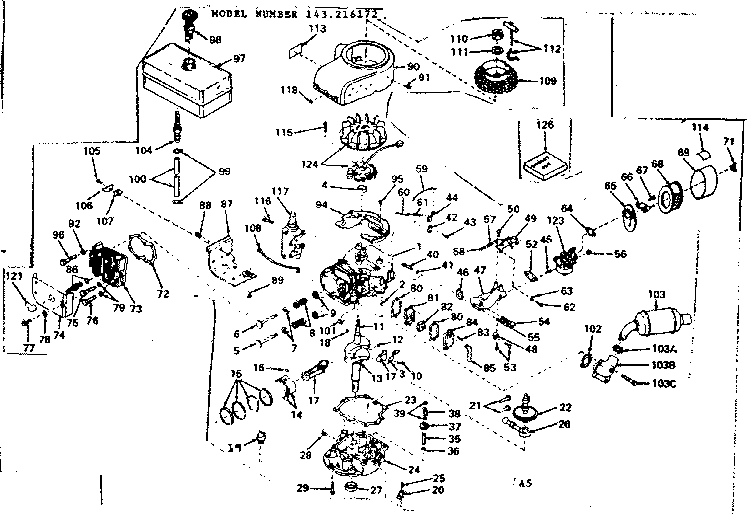

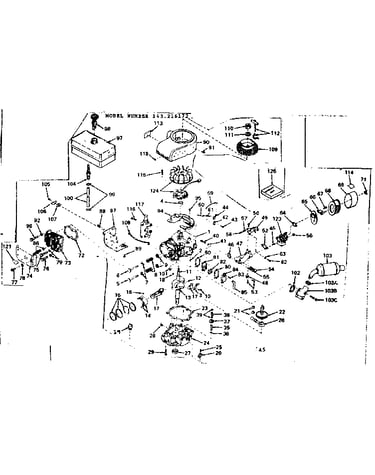

    Basic engine diagram

    Troybilt lawn & garden equipment engine fuel line clamp

    Part #26460

    BEST SELLER
    This item is not returnable
    $2.49
    29% OFF Phone Price : $3.49
    In Stock
  • Craftsman Lawn & Garden Equipment Engine Air Filter 28424
    #82

    Basic engine diagram

    Craftsman lawn & garden equipment engine air filter

    Part #28424

    This item is not returnable
    $4.14
    19% OFF Phone Price : $5.14
    In Stock
  • Craftsman Lawn & Garden Equipment Engine Carburetor Manifold Gasket 33263
    #52

    Basic engine diagram

    Craftsman lawn & garden equipment engine carburetor manifold gasket

    Part #33263

    This item is not returnable
    $2.49
    29% OFF Phone Price : $3.49
    In Stock
  • Craftsman Lawn & Garden Equipment Engine Fuel Line 30962
    #100

    Basic engine diagram

    Craftsman lawn & garden equipment engine fuel line

    Part #30962

    This item is not returnable
    $27.18
    18% OFF Phone Price : $33.18
    In Stock
  • Gasket 27930
    #102

    Basic engine diagram

    Gasket

    Part #27930

    Replaced by #35865

    ?
    Manufacturer substitution
    This part replaces 27930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Craftsman Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
    #16

    Carburetor diagram

    Craftsman lawn & garden equipment engine carburetor bowl drain valve

    Part #27136A

    This item is not returnable
    $8.09
    11% OFF Phone Price : $9.09
    In Stock
  • Craftsman Lawn And Garden Equipment Engine Nut 29752
    #56

    Basic engine diagram

    Craftsman lawn and garden equipment engine nut

    Part #29752

    This item is not returnable
    In Stock
  • Craftsman Lawn & Garden Equipment Engine Screw 28942
    #62

    Basic engine diagram

    Craftsman lawn & garden equipment engine screw

    Part #28942

    This item is not returnable
    $2.49
    29% OFF Phone Price : $3.49
    In Stock
  • Screw 28820
    #67

    Basic engine diagram

    Screw

    Part #28820

    Replaced by #651081

    ?
    Manufacturer substitution
    This part replaces 28820. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
