Model #53621500 Craftsman 26" self-propelled 3-stage snow blower

Here are the diagrams and repair parts for Craftsman 53621500 26" self-propelled 3-stage snow blower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

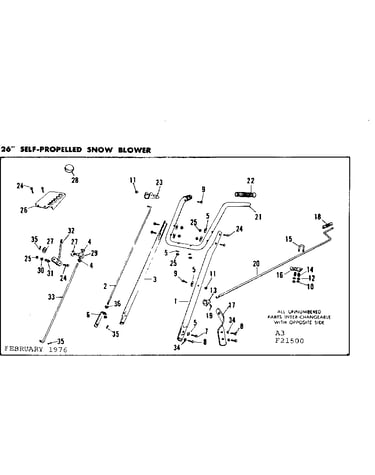

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 197 parts

Lawn & Garden Equipment Screw

#77

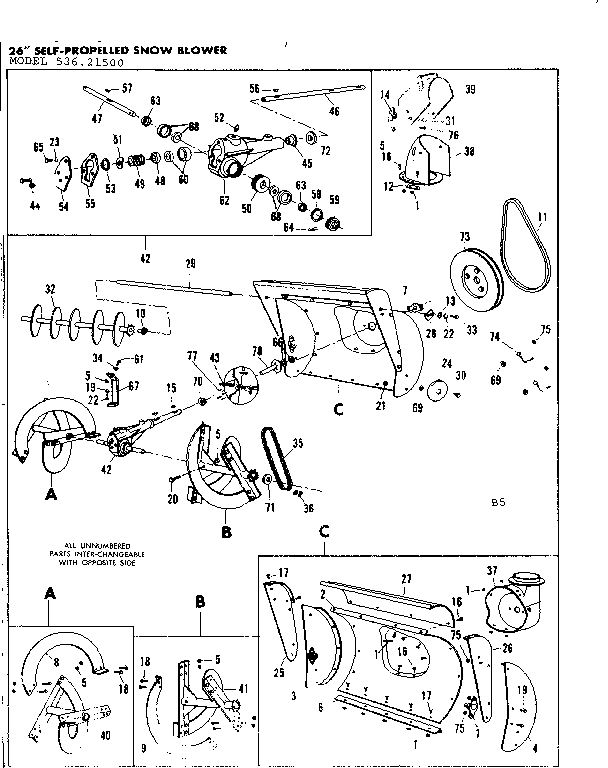

Auger housing assembly Diagram

Lawn & garden equipment screw

Part #703985
?
Manufacturer substitution
This part replaces 35497. Substitute parts can look different from the original.
This part replaces 35497
This item is not returnable
$3.13 |
13% OFF MSRP:$3.60

In Stock

Flat Washer, 8-pack

#34

Auger housing assembly Diagram

Flat washer, 8-pack

Part #STD551031
?
Manufacturer substitution
This part replaces 456145. Substitute parts can look different from the original.
This part replaces 456145
This item is not returnable
$3.04

In Stock

Lawn & Garden Equipment Washer

#23

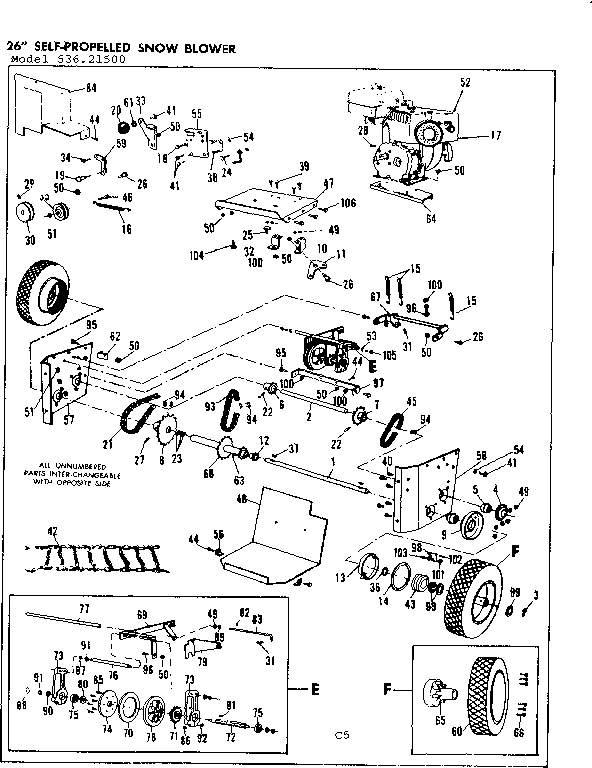

Drive assembly Diagram

Lawn & garden equipment washer

Part #17X192MA
?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
This part replaces 642
This item is not returnable
$3.98 |
7% OFF MSRP:$4.30

In Stock

Chain Assembly

#45

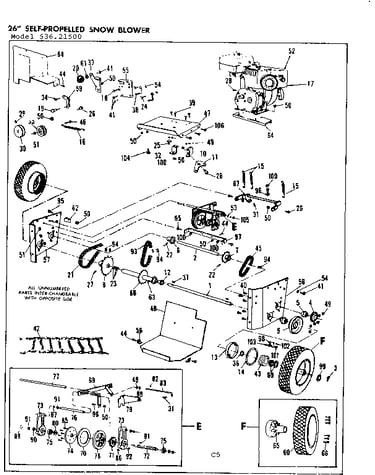

Drive assembly Diagram

Chain assembly

Part #36373

The manufacturer no longer makes this part, and there's no substitute part

Snowblower Gearbox Oil Seal

#72

Auger housing assembly Diagram

Snowblower gearbox oil seal

Part #9566MA
?
Manufacturer substitution
This part replaces 24274. Substitute parts can look different from the original.
This part replaces 24274
$15.67

In Stock

Flat Washer, 8-pack

#13

Auger housing assembly Diagram

Flat washer, 8-pack

Part #STD551037
?
Manufacturer substitution
This part replaces 2307. Substitute parts can look different from the original.
This part replaces 2307
This item is not returnable
$2.86

In Stock

Snowblower Shear Bolt Kit

#20

Auger housing assembly Diagram

Snowblower shear bolt kit

Part #578794MA
?
Manufacturer substitution
This part replaces 122052. Substitute parts can look different from the original.
This part replaces 122052
This item is not returnable
$5.27 |
25% OFF MSRP:$7.00

In Stock

Lock Nut

#86

Drive assembly Diagram

Lock nut

Part #997319

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin

#3

Drive assembly Diagram

Cotter pin

Part #120123

The manufacturer no longer makes this part, and there's no substitute part

Snowblower Gearbox Oil Seal

#63

Auger housing assembly Diagram

Snowblower gearbox oil seal

Part #21922MA
?
Manufacturer substitution
This part replaces 21922. Substitute parts can look different from the original.
This part replaces 21922
$22.27 |
30% OFF MSRP:$32.00

In Stock
