Gentron
Generator

Model # GG1200-C Official Gentron generator

Here are the diagrams and repair parts for Official Gentron GG1200-C generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

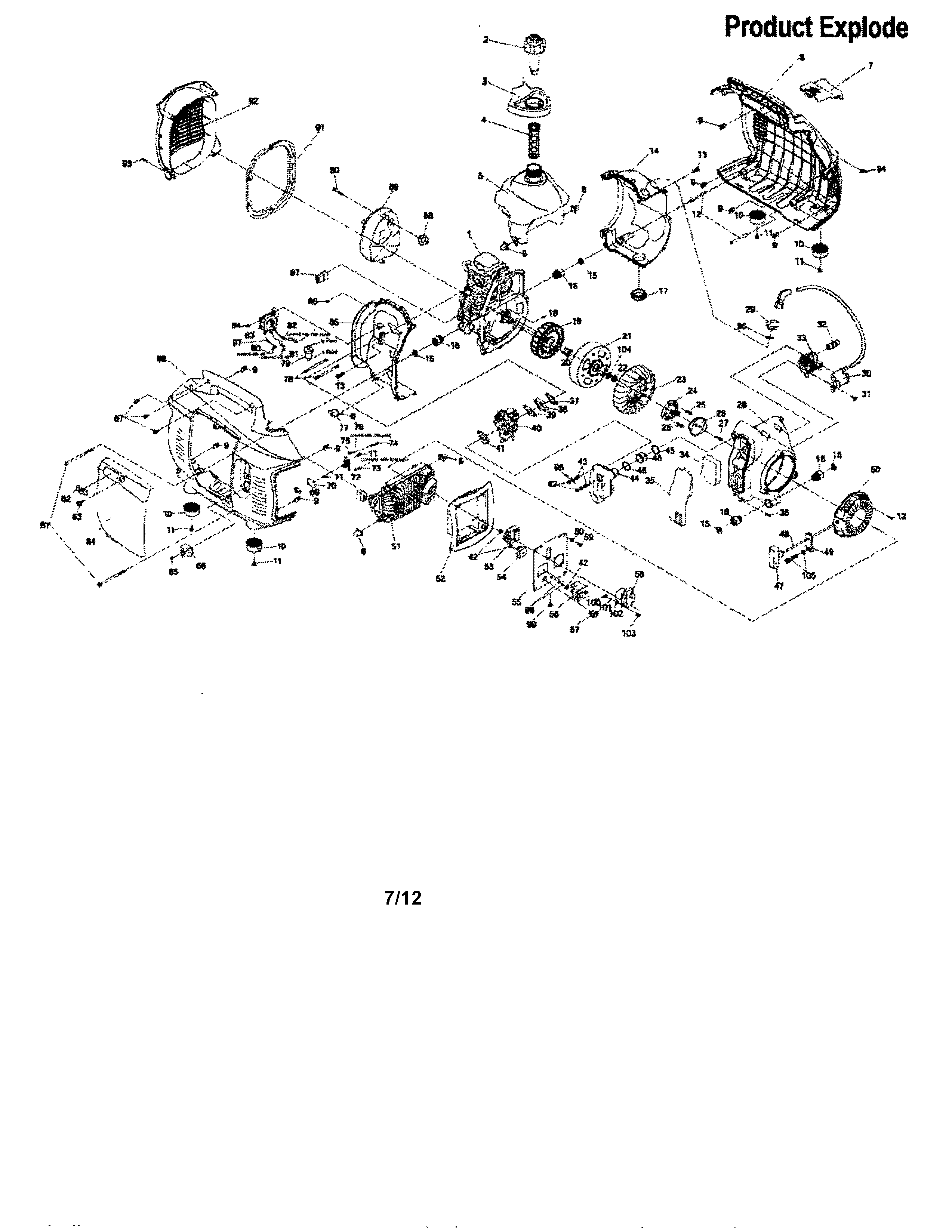

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Tap Screw APG3102TE-B84TG
#84

Cabinet parts diagram

Tap screw

Part #APG3102TE-B84TG

The manufacturer no longer makes this part, and there's no substitute part

Gasket APG3102TE-B104TG
#104

Cabinet parts diagram

Gasket

Part #APG3102TE-B104TG

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw APG3102TE-B11TG
#11

Cabinet parts diagram

Tap screw

Part #APG3102TE-B11TG

The manufacturer no longer makes this part, and there's no substitute part

Head Cover APG3102TE-A03TG
#3

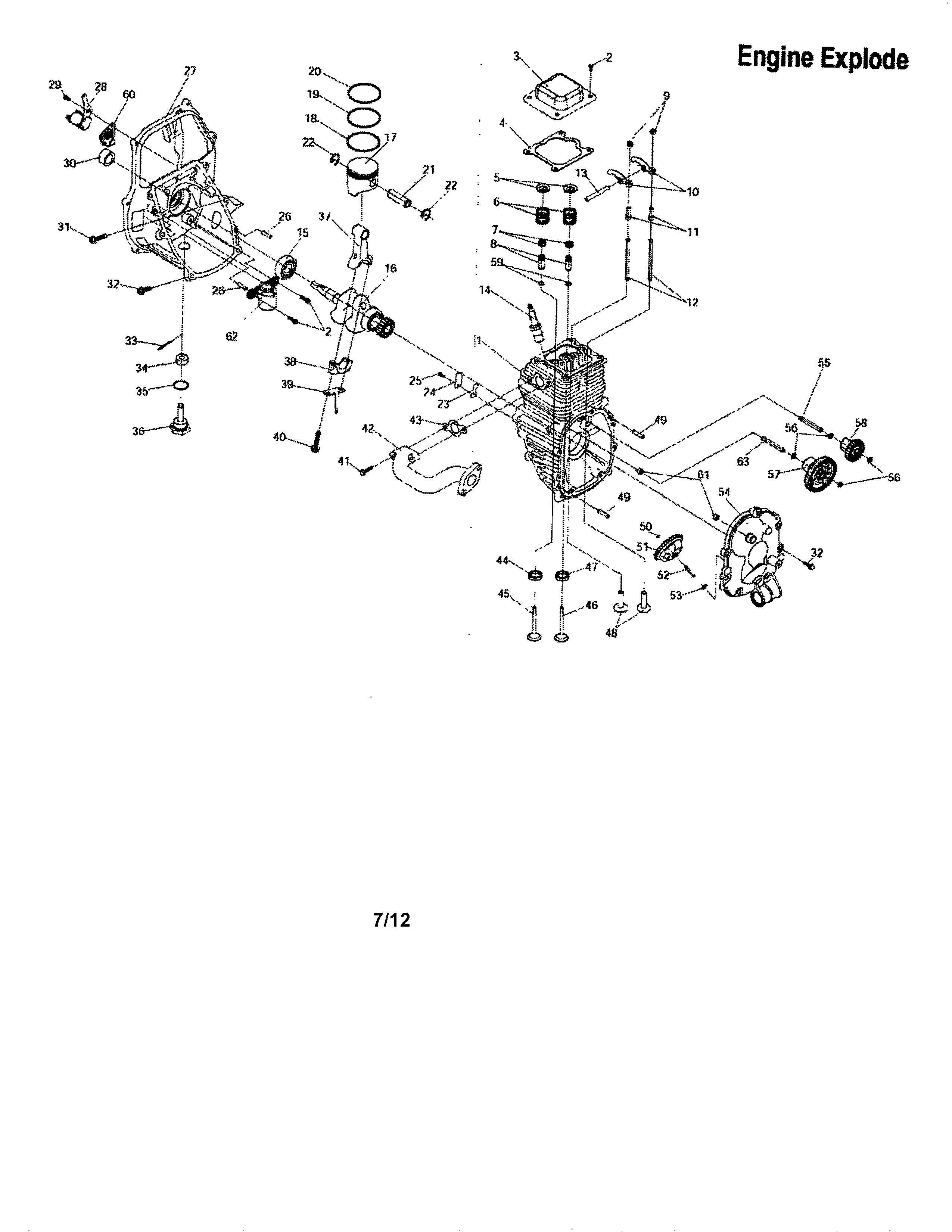

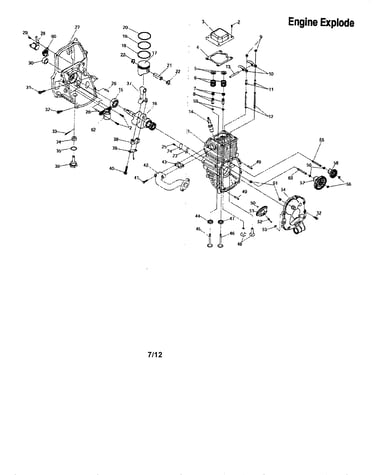

Engine assy diagram

Head cover

Part #APG3102TE-A03TG

The manufacturer no longer makes this part, and there's no substitute part

Bolt M6x55 APG3102TE-B90TG
#90

Cabinet parts diagram

Bolt m6x55

Part #APG3102TE-B90TG

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Head APG3102TE-A01TG
#1

Engine assy diagram

Cylinder head

Part #APG3102TE-A01TG

The manufacturer no longer makes this part, and there's no substitute part

Oil Rings APG3102TE-A18TG
#18

Engine assy diagram

Oil rings

Part #APG3102TE-A18TG

The manufacturer no longer makes this part, and there's no substitute part

Retainer APG3102TE-B24TG
#24

Cabinet parts diagram

Retainer

Part #APG3102TE-B24TG

The manufacturer no longer makes this part, and there's no substitute part

Enclosure APG3102TE-B92TG
#92

Cabinet parts diagram

Enclosure

Part #APG3102TE-B92TG

The manufacturer no longer makes this part, and there's no substitute part

Start Knob APG3102TE-B47TG
#47

Cabinet parts diagram

Start knob

Part #APG3102TE-B47TG

The manufacturer no longer makes this part, and there's no substitute part
