Model # DSC-HX7VR Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX7VR digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

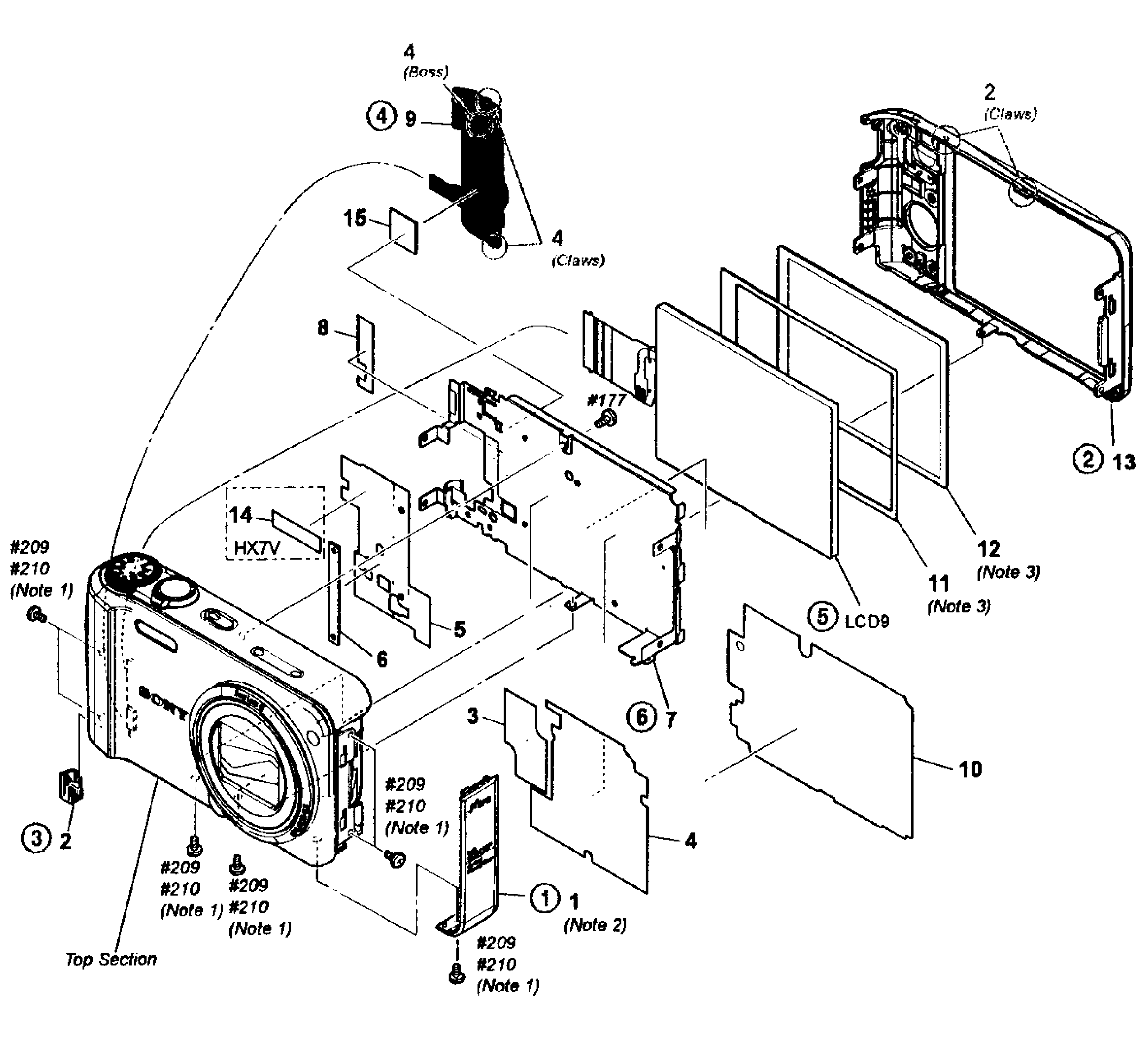

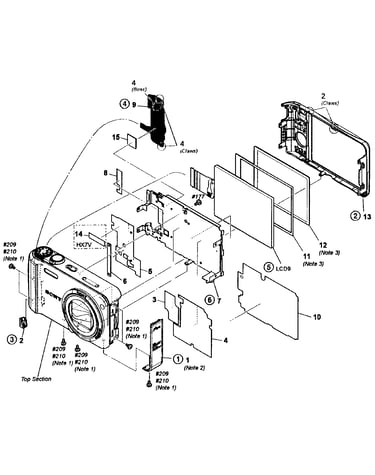

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Pcb At-042 A1788137A
#53

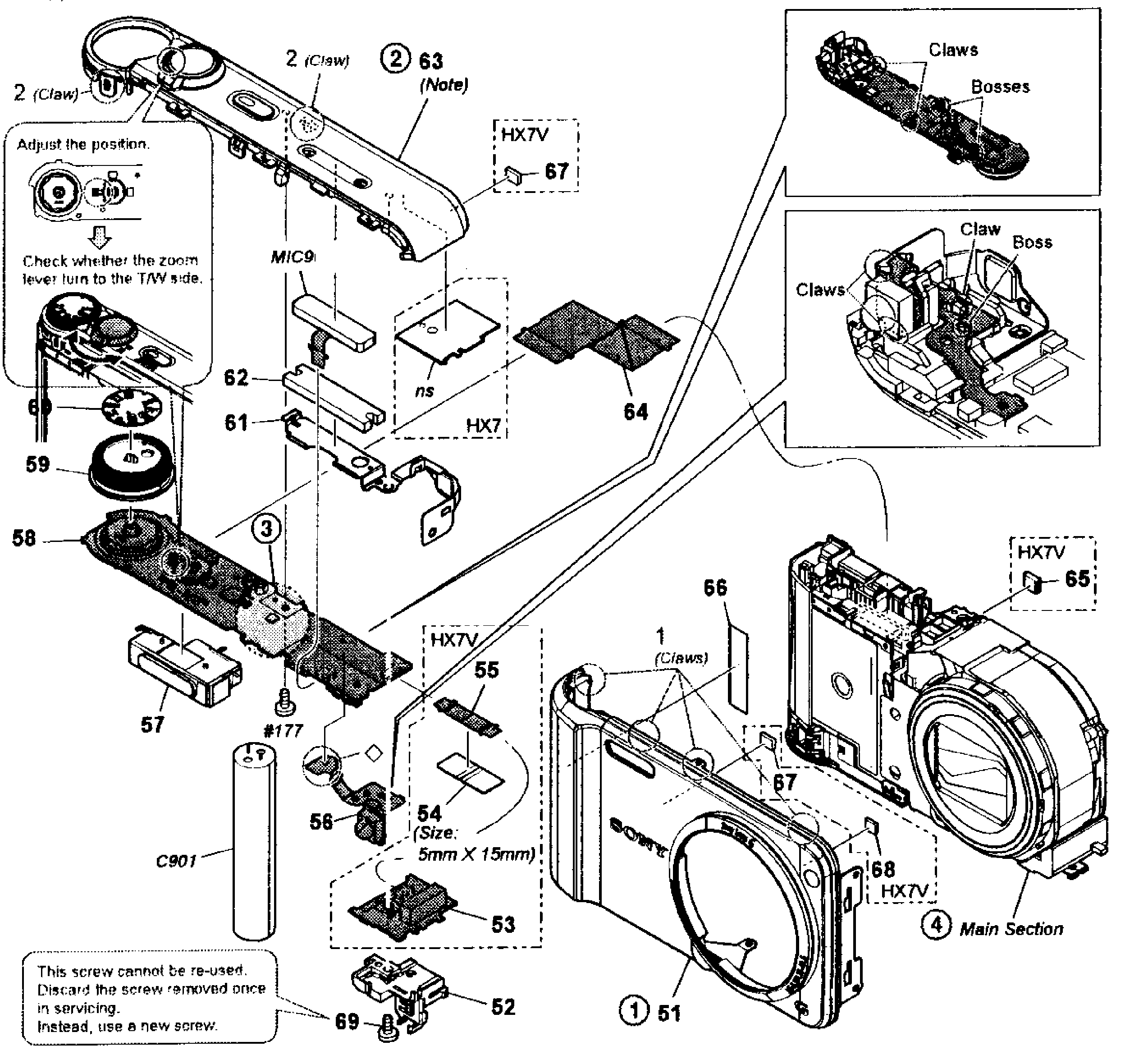

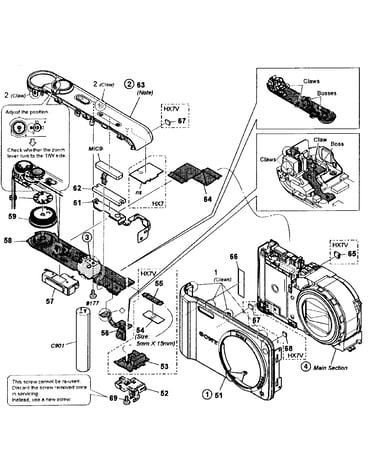

Top assy diagram

Pcb at-042

Part #A1788137A

$105.64
In Stock
Ring Ornament 417473501
#156

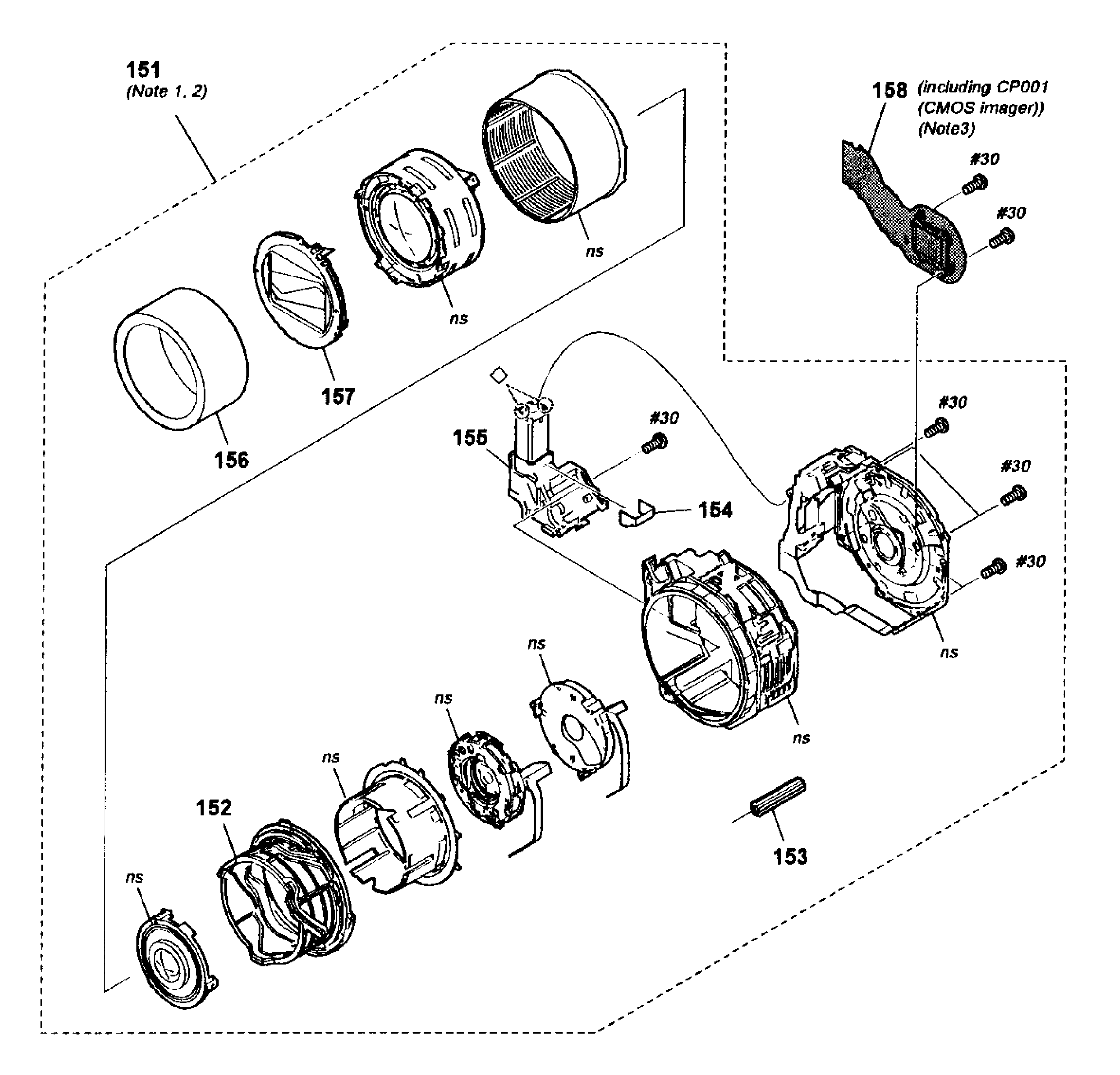

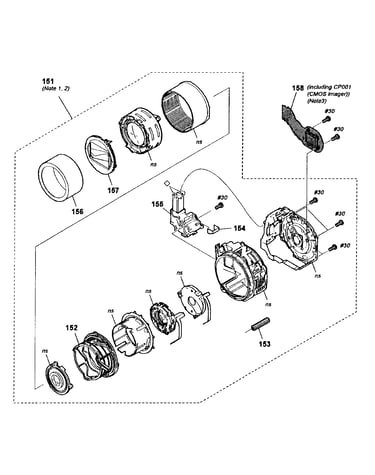

Lens assy diagram

Ring ornament

Part #417473501

$19.87
In Stock
Holder 427125801
#52

Top assy diagram

Holder

Part #427125801

$8.74
In Stock
Holder 427124101
#111

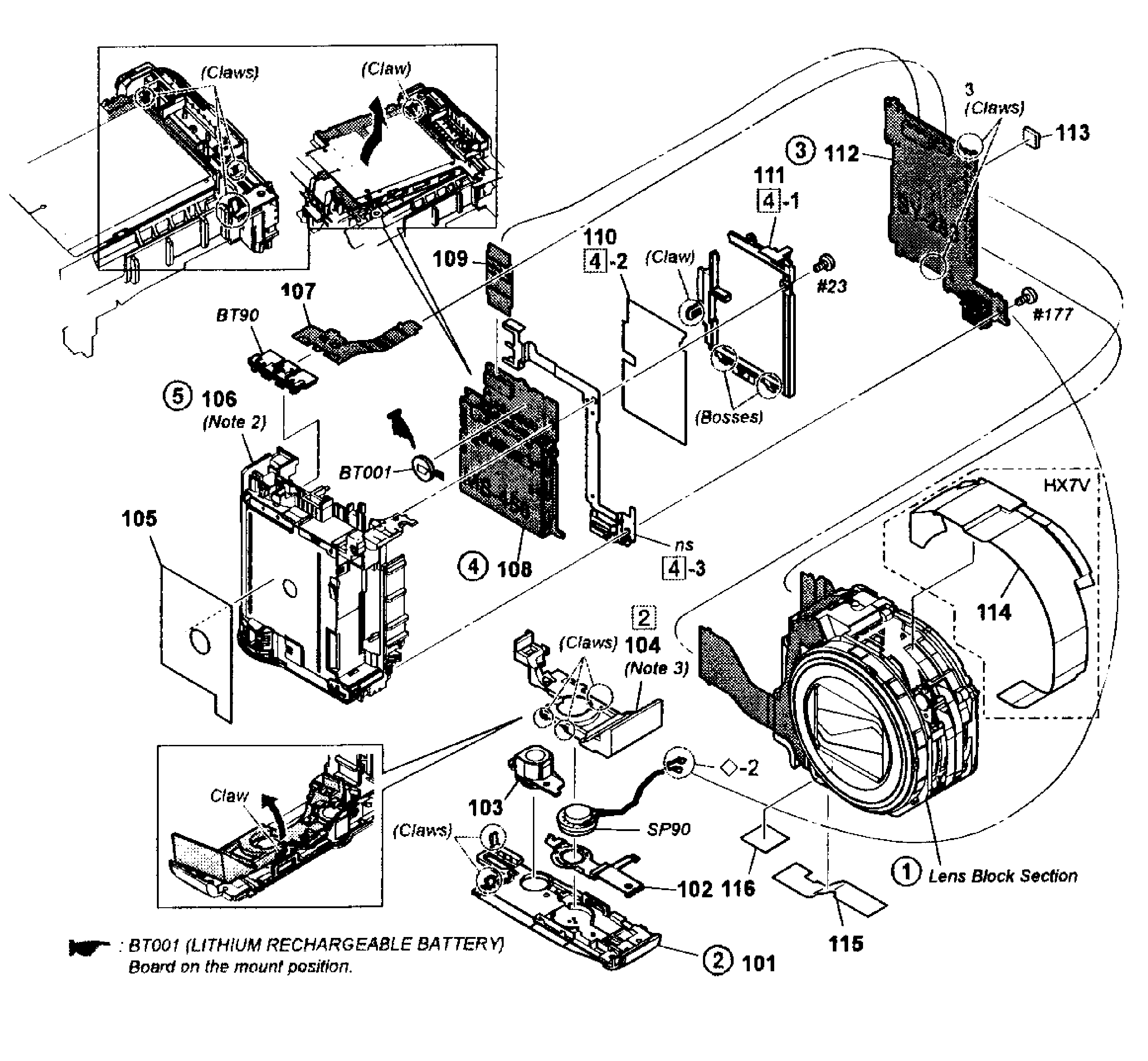

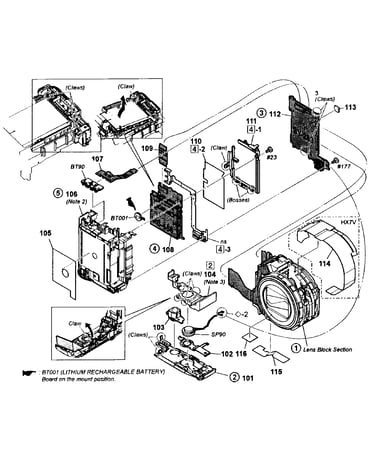

Main section diagram

Holder

Part #427124101

$13.89
In Stock
Cabinet Front X25804731
#51

Top assy diagram

Cabinet front

Part #X25804731

$100.51
In Stock
Plate 427124301
#102

Main section diagram

Plate

Part #427124301

This item is not returnable
$4.84
In Stock
Sheet Lens 427123501
#114

Main section diagram

Sheet lens

Part #427123501

$20.13
In Stock
Pcb,rl-099 188048411
#64

Top assy diagram

Pcb,rl-099

Part #188048411

This item is not returnable
$7.22
In Stock
Block Zoom 148785911
#155

Lens assy diagram

Block zoom

Part #148785911

$8.49
In Stock
Pcb Af-136 A1788003A
#56

Top assy diagram

Pcb af-136

Part #A1788003A

$22.31
In Stock
