Ryobi
Miter Saw

Model # TS260III Official Ryobi miter saw

Here are the diagrams and repair parts for Official Ryobi TS260III miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Cover 4880001
#29

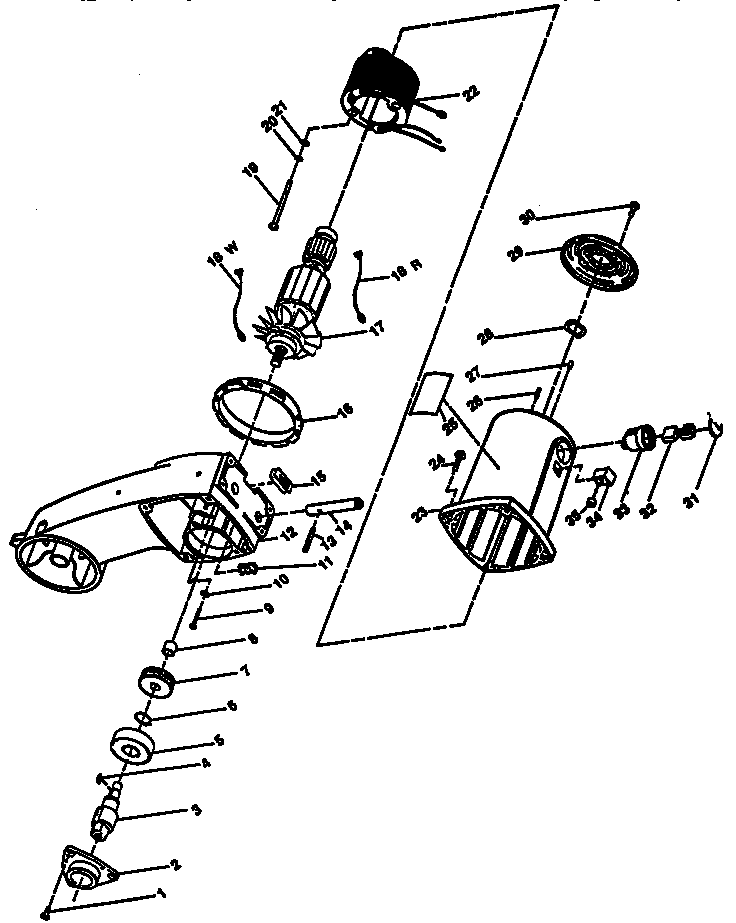

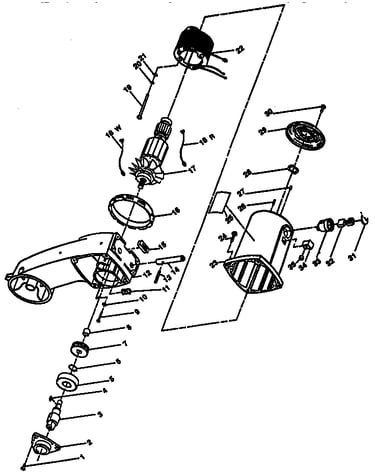

Motor diagram

Cover

Part #4880001

The manufacturer no longer makes this part, and there's no substitute part

Holder 4490001
#16

Motor diagram

Holder

Part #4490001

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900018
#24

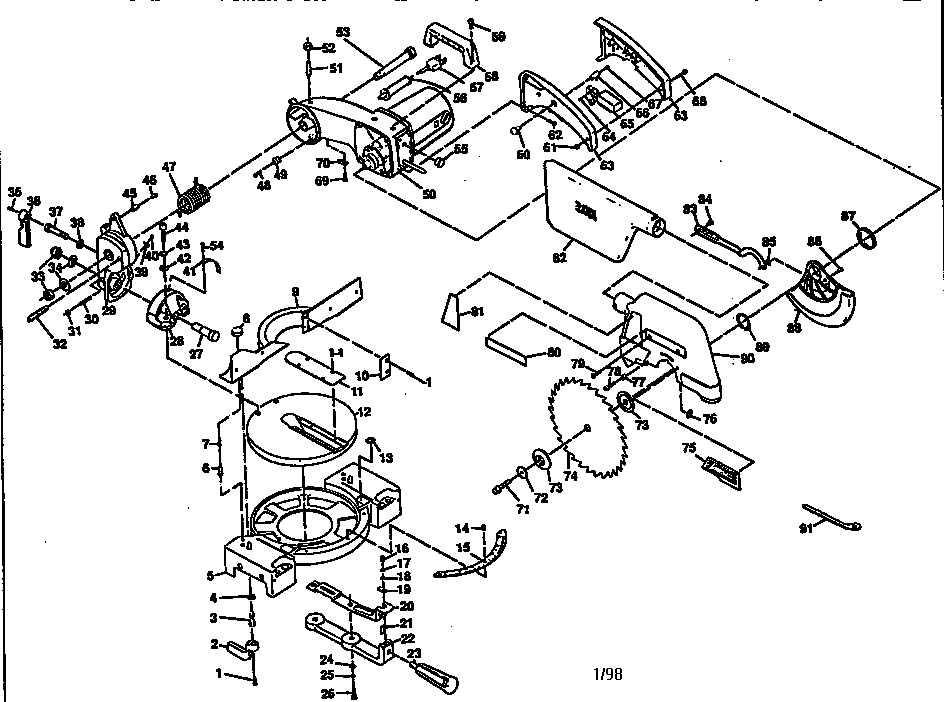

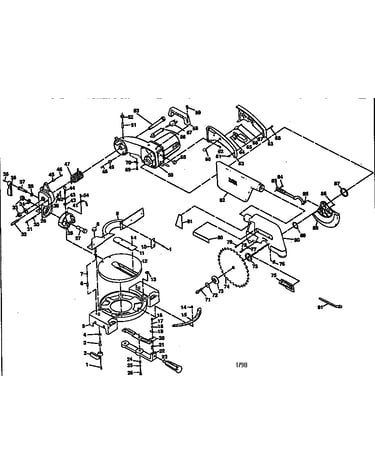

Unit parts diagram

Washer

Part #1900018

The manufacturer no longer makes this part, and there's no substitute part

Warning Label 1920015
#81

Unit parts diagram

Warning label

Part #1920015

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Turntable 1190002
#12

Unit parts diagram

Miter saw turntable

Part #1190002

The manufacturer no longer makes this part, and there's no substitute part

Plate 1360025
#10

Unit parts diagram

Plate

Part #1360025

The manufacturer no longer makes this part, and there's no substitute part

Rivet #2 1130053
#14

Unit parts diagram

Rivet #2

Part #1130053

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1130066
#53

Unit parts diagram

Bolt

Part #1130066

The manufacturer no longer makes this part, and there's no substitute part

Scale 1950002
#15

Unit parts diagram

Scale

Part #1950002

The manufacturer no longer makes this part, and there's no substitute part

Lever 1190006
#2

Unit parts diagram

Lever

Part #1190006

The manufacturer no longer makes this part, and there's no substitute part
