Model # ZIDS240PBSS Official GE double drawer refrigerator

Here are the diagrams and repair parts for Official GE ZIDS240PBSS double drawer refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Dryer Filter WR86X0096
#35

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Refrigerator Compressor WR87X10112
#210

Unit parts diagram

Refrigerator compressor

Part #WR87X10112

$672.35
In Stock
Reed Switch WR23X10378
#475

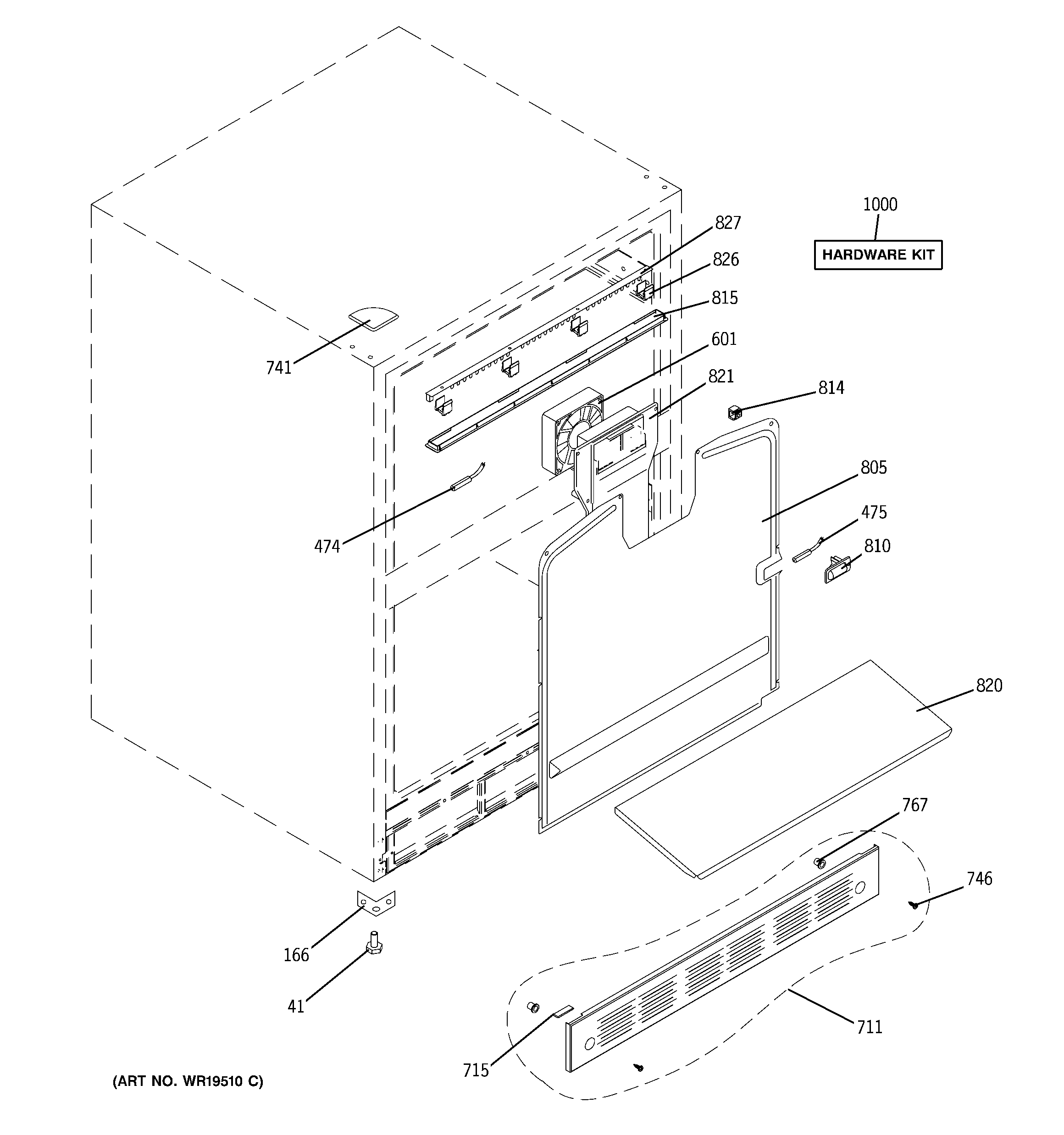

Cabinet diagram

Reed switch

Part #WR23X10378

$58.80
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Unit parts diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
9% OFF Phone Price : $106.54
In Stock
Power Supply WR17X11680
#830

Unit parts diagram

Power supply

Part #WR17X11680

Replaced by #WR55X10430

?
Manufacturer substitution
This part replaces WR17X11680. Substitute parts can look different from the original.
$494.08 |
$10.00 OFF Phone Price : $504.08
In Stock
Power Supply WR55X10512
#828

Unit parts diagram

Power supply

Part #WR55X10512

Replaced by #WR55X10430

?
Manufacturer substitution
This part replaces WR55X10512. Substitute parts can look different from the original.
$494.08 |
$10.00 OFF Phone Price : $504.08
In Stock
Compressor Support WR02X11808
#710

Unit parts diagram

Compressor support

Part #WR02X11808

$71.85
In Stock
Compressor M WR01X10452
#763

Unit parts diagram

Compressor m

Part #WR01X10452

$35.97 |
12% OFF Phone Price : $40.97
In Stock
Adjustable Foot WR01X10451
Adjustable foot

Part #WR01X10451

$26.13 |
16% OFF Phone Price : $31.13
In Stock
Lower Drawer WR21X10094
#797

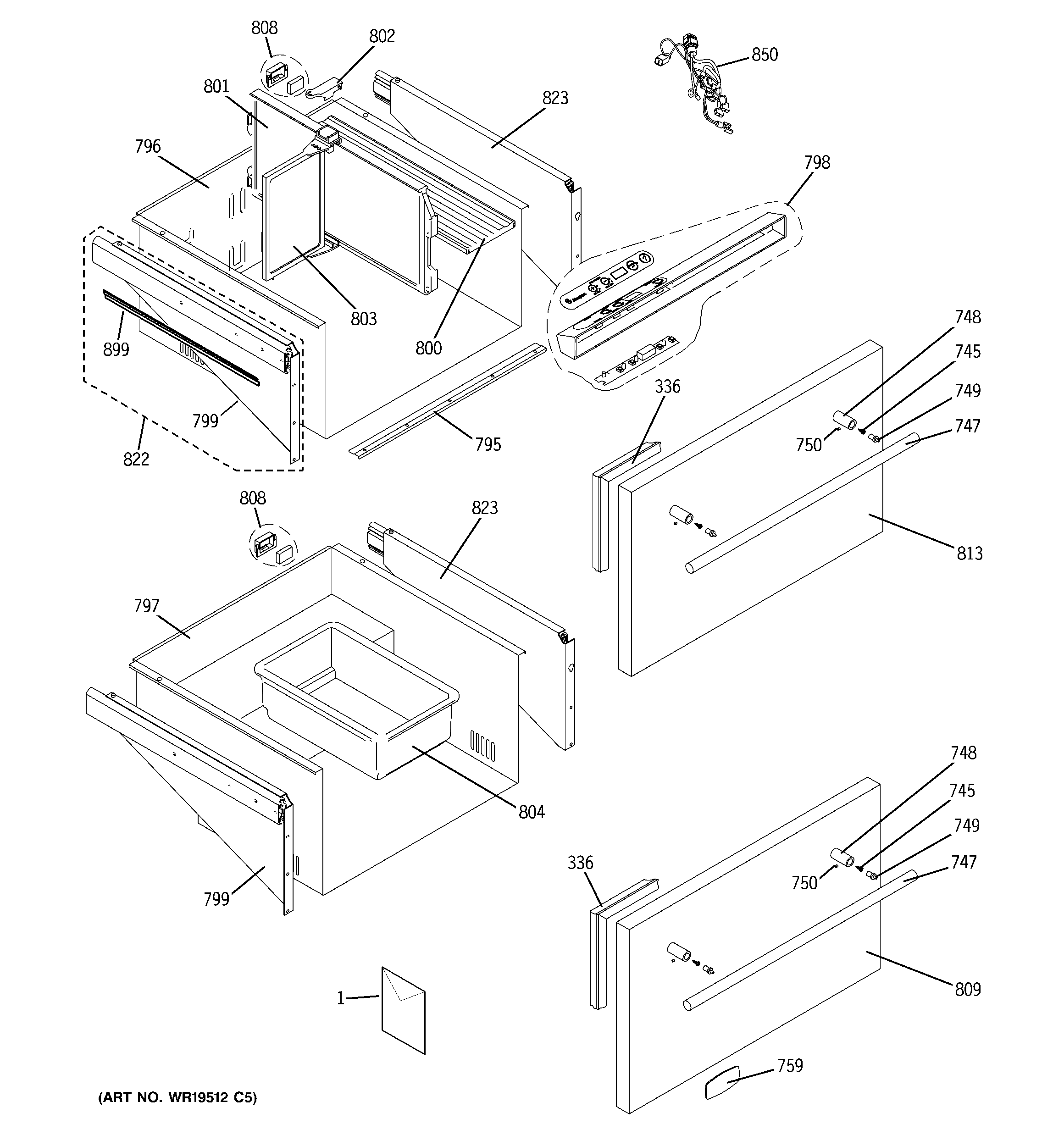

Doors & controls diagram

Lower drawer

Part #WR21X10094

$472.20
In Stock
