Here are the diagrams and repair parts for Official LG 50PA5500UAAUSLLHR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Remote Control AKB73615316
#A2

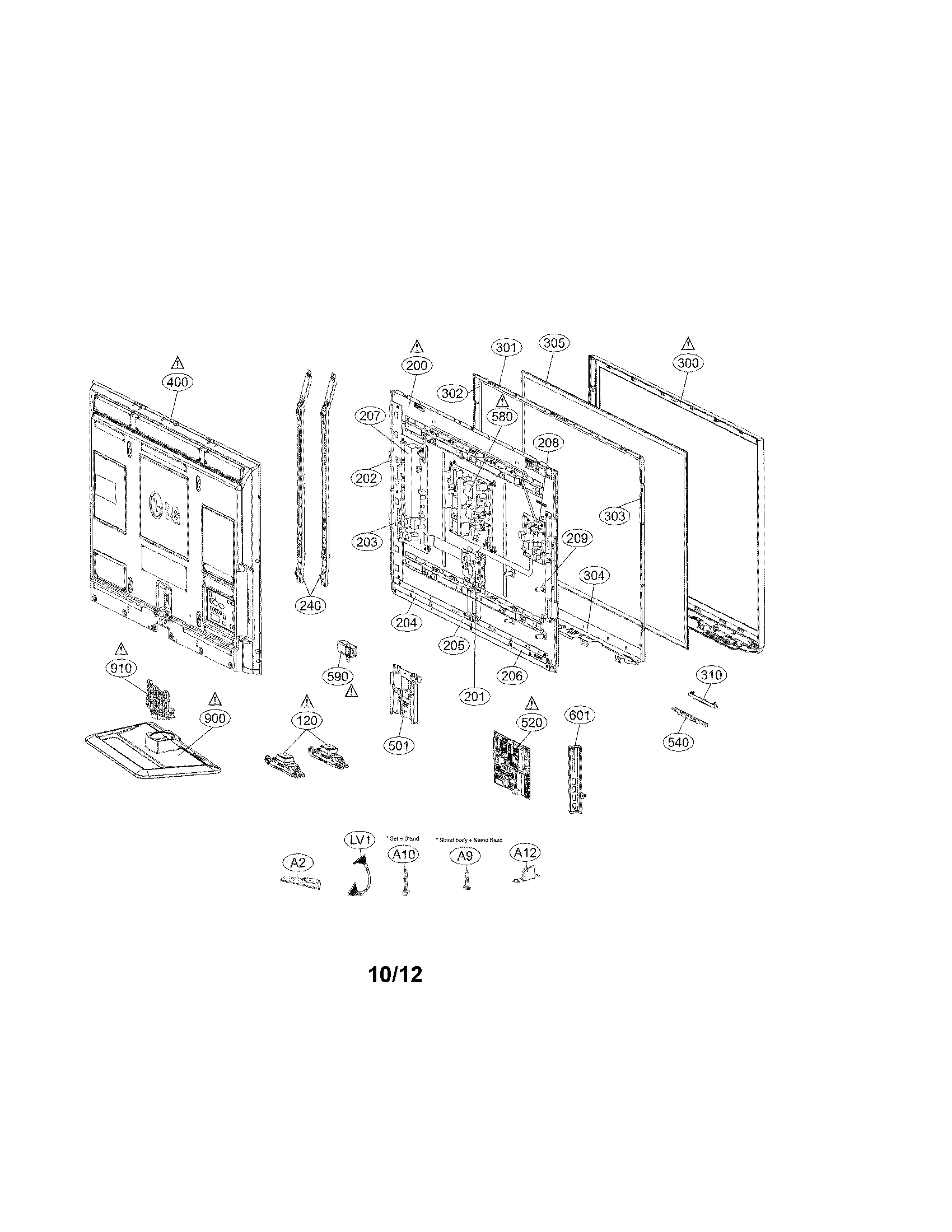

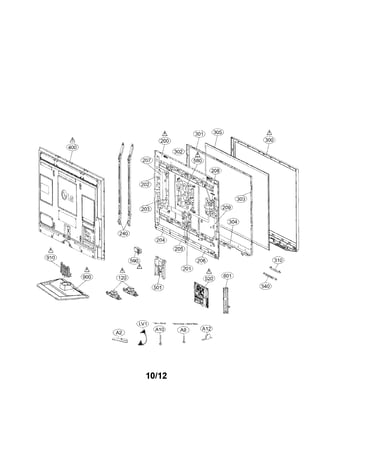

Exploded view parts diagram

Remote control

Part #AKB73615316

This item is not returnable
In Stock
Television Power Cord EAD60817901
Television power cord

Part #EAD60817901

In Stock
Television Screw With Washer FAB30016441
#A10

Exploded view parts diagram

Television screw with washer

Part #FAB30016441

This item is not returnable
In Stock
Bag MAF60779001
Bag

Part #MAF60779001

This item is not returnable
In Stock
Pcb Assembly EBR73764701
#204

Exploded view parts diagram

Pcb assembly

Part #EBR73764701

In Stock
Television Printed Circuit Board EBR73763902
#202

Exploded view parts diagram

Television printed circuit board

Part #EBR73763902

In Stock
Pcb Assembly EBR74012001
#209

Exploded view parts diagram

Pcb assembly

Part #EBR74012001

In Stock
Filter 6210VH0001A
Filter

Part #6210VH0001A

This item is not returnable
In Stock
Support MJH62595901
#240

Exploded view parts diagram

Support

Part #MJH62595901

In Stock
Television Printed Circuit Board EBR73764302
#203

Exploded view parts diagram

Television printed circuit board

Part #EBR73764302

In Stock
