KitchenAid KBCO24LSBX04 beverage center Parts

Here are the diagrams and repair parts for KitchenAid KBCO24LSBX04 beverage center, as well as links to manuals and error code tables, if available.

KitchenAid KBCO24LSBX04 beverage center
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKBCO24LSBX04 Beverage Center

  • Range Screw for KitchenAid KBCO24LSBX04 - Part W10837731

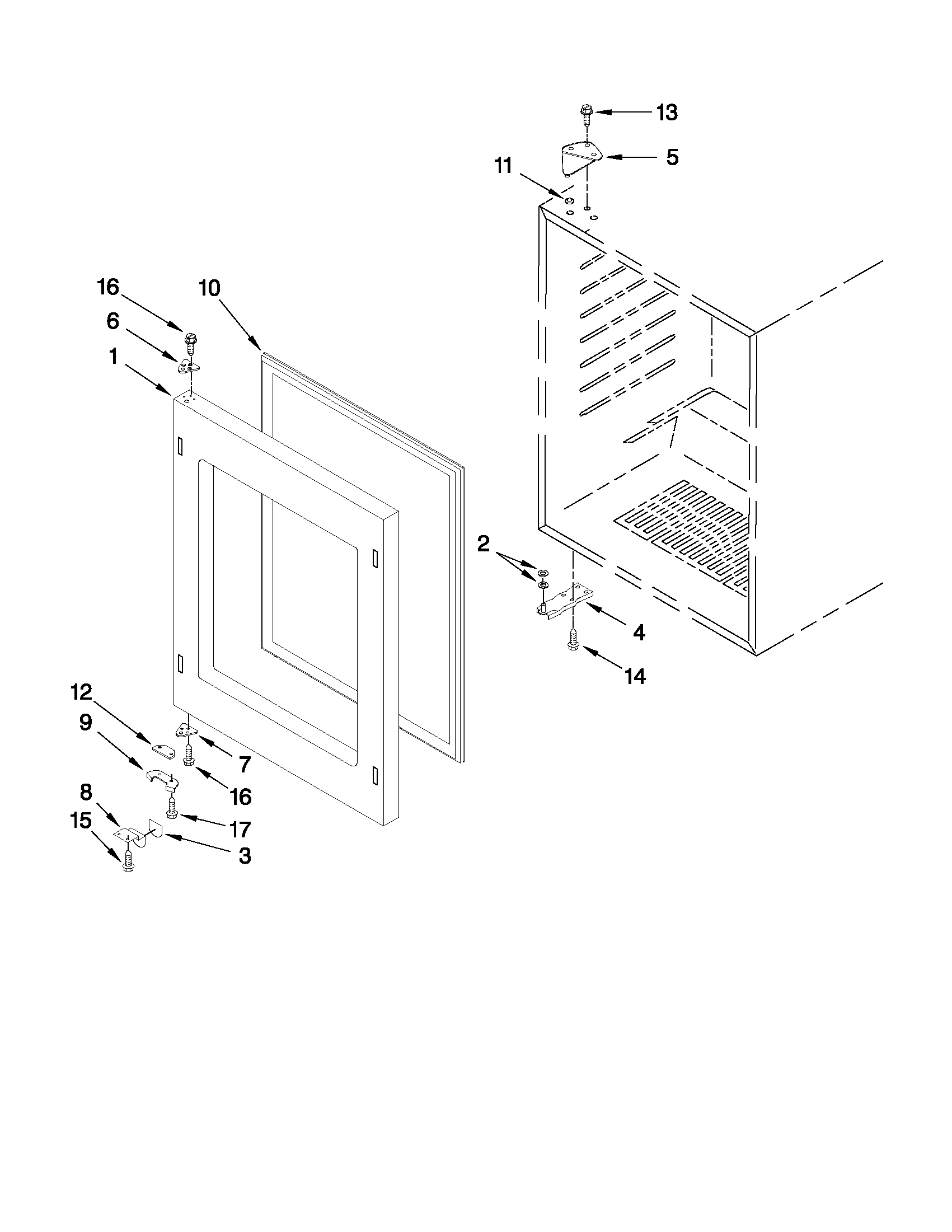

    Door parts diagram

    Screw

    Part #W10204865

    Replaced by #W10837731

    Info Icon
    Manufacturer substitution
    This part replaces W10204865. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Wine Cooler Condenser Fan Motor for KitchenAid KBCO24LSBX04 - Part WPW10299090

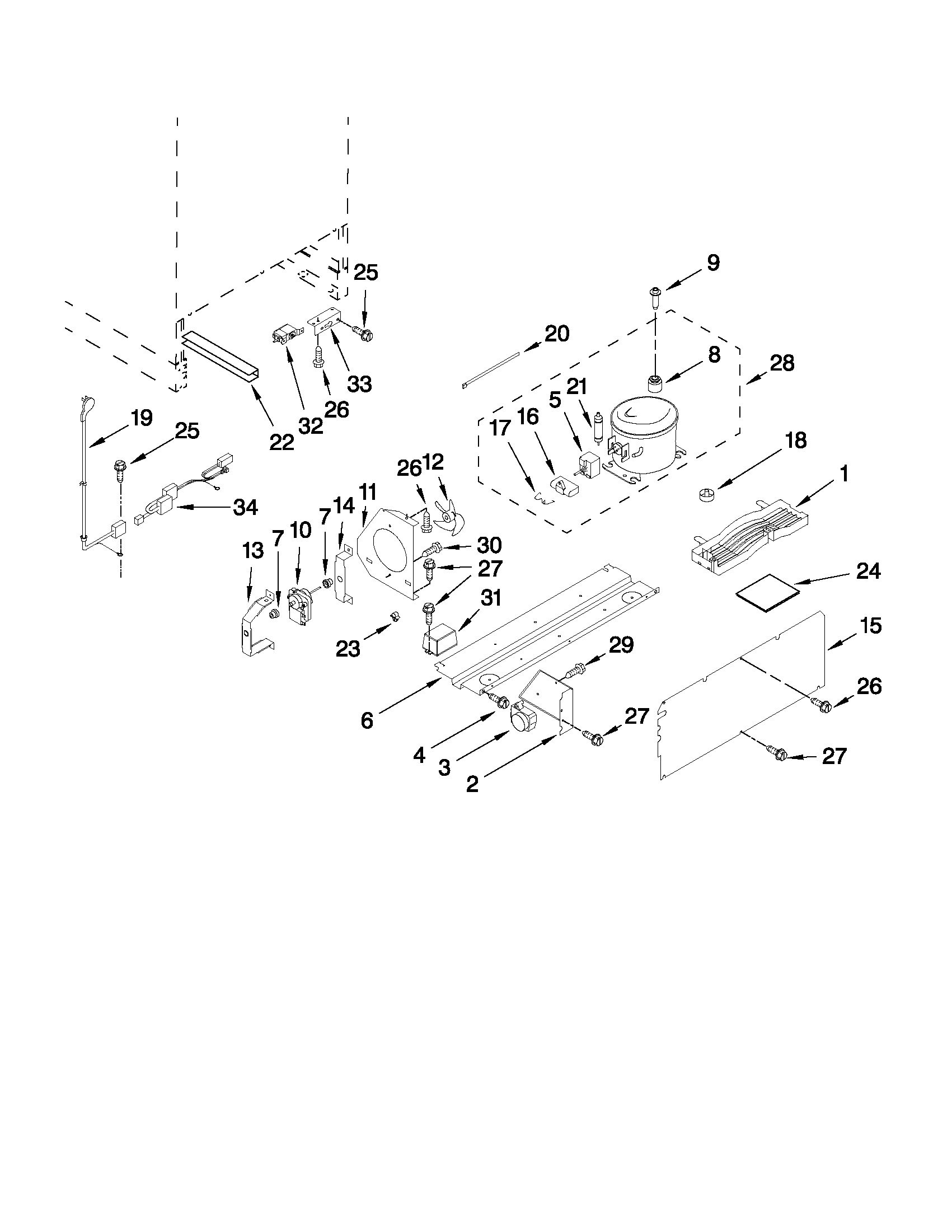

    Unit parts diagram

    Condenser Motor

    Part #W10299090

    Replaced by #WPW10299090

    Info Icon
    Manufacturer substitution
    This part replaces W10299090. Substitute parts can look different from the original.
    In Stock
    $168.72
    7% OFF Phone Price : $180.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Wine Cooler Door Gasket for KitchenAid KBCO24LSBX04 - Part WPW10238068

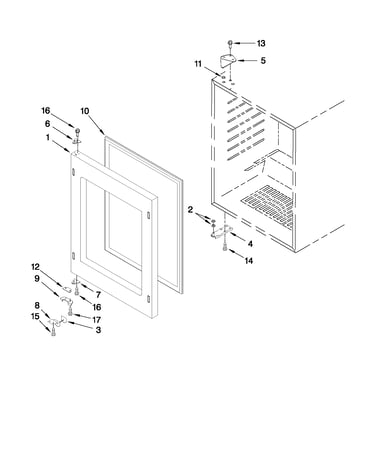

    Door parts diagram

    Wine Cooler Door Gasket

    Part #W10238068

    Replaced by #WPW10238068

    Info Icon
    Manufacturer substitution
    This part replaces W10238068. Substitute parts can look different from the original.
    In Stock
    $171.45
    7% OFF Phone Price : $183.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Maytag Wine Cooler Temperature Control Thermostat for KitchenAid KBCO24LSBX04 - Part W10163278

    Unit parts diagram

    Maytag Wine Cooler Temperature Control Thermostat

    Part #W10163278
    In Stock
    $123.80
    9% OFF Phone Price : $135.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Wine Cooler Compressor Start Relay for KitchenAid KBCO24LSBX04 - Part WP4344776

    Unit parts diagram

    Start Device

    Part #4344776

    Replaced by #WP4344776

    Info Icon
    Manufacturer substitution
    This part replaces 4344776. Substitute parts can look different from the original.
    In Stock
    $99.09
    11% OFF Phone Price : $111.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Wine Cooler Temperature Control Thermostat for KitchenAid KBCO24LSBX04 - Part W11211930

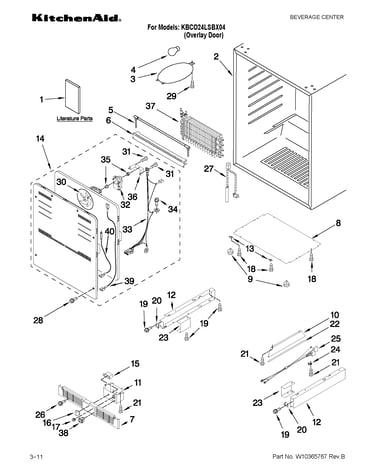

    Cabinet parts diagram

    Wine Cooler Temperature Control Thermostat

    Part #4344860

    Replaced by #W11211930

    Info Icon
    Manufacturer substitution
    This part replaces 4344860. Substitute parts can look different from the original.
    In Stock
    $106.26
    10% OFF Phone Price : $118.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor for KitchenAid KBCO24LSBX04 - Part W10238026

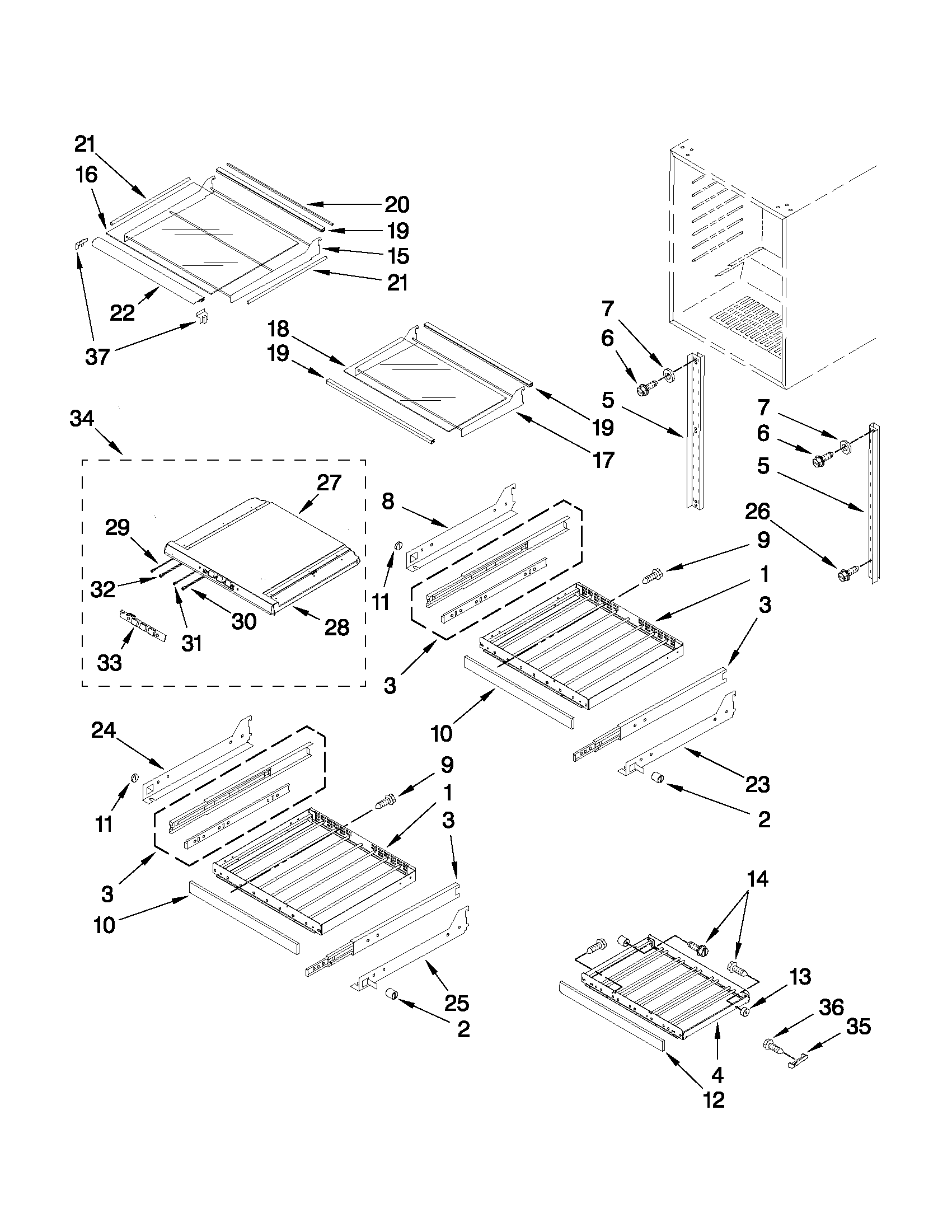

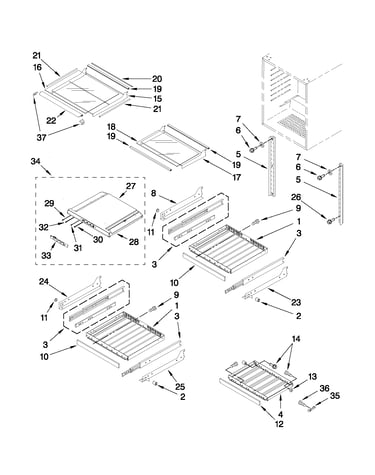

    Shelf parts diagram

    Sensor

    Part #W10238026
    In Stock
    $76.74
    7% OFF Phone Price : $82.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Maytag Bracket for KitchenAid KBCO24LSBX04 - Part 4344864

    Unit parts diagram

    Maytag Bracket

    Part #4344864
    In Stock
    $40.00
    Minus Item
    Qty
    Plus Item
  • Door Hinge for KitchenAid KBCO24LSBX04 - Part 4344787

    Door parts diagram

    Door Hinge

    Part #4344787
    In Stock
    $182.48
    Minus Item
    Qty
    Plus Item
  • Support for KitchenAid KBCO24LSBX04 - Part 4344820

    Cabinet parts diagram

    Support

    Part #4344820
    In Stock
    $181.40
    Minus Item
    Qty
    Plus Item
