AO Smith GDVH50L water heater

AO Smith GDVH50L water heater Parts

Here are the diagrams and repair parts for AO Smith GDVH50L water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GDVH50L Water Heaters

  • Water Heater Temperature And Pressure Relief Valve for AO Smith GDVH50L - Part 9000728

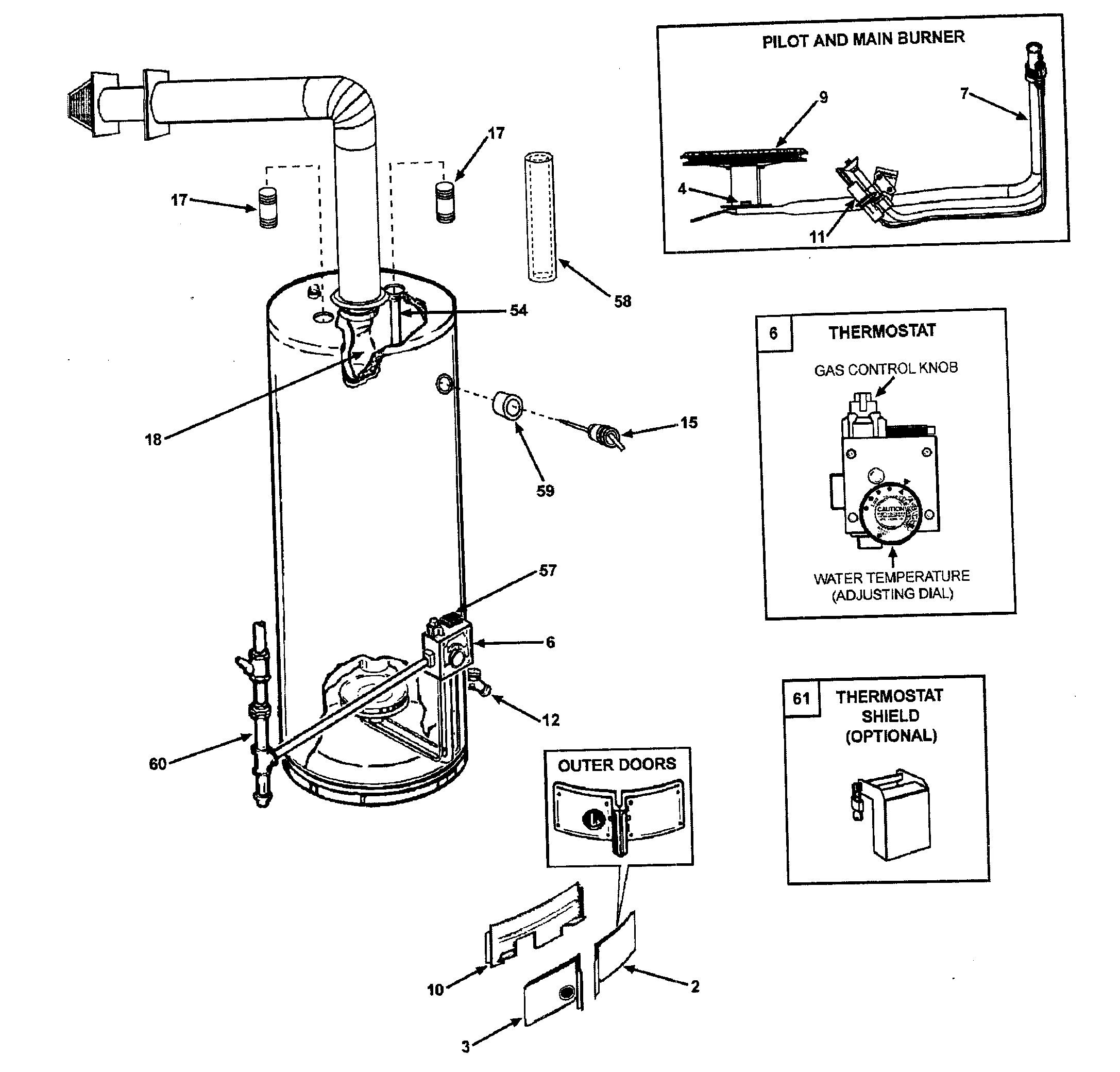

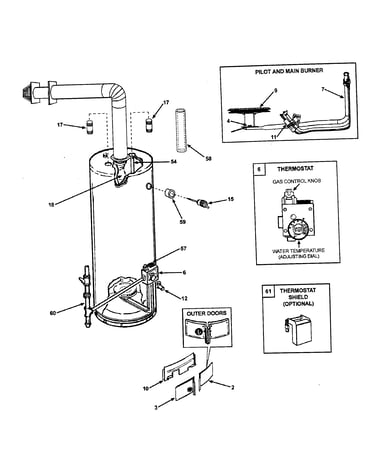

    Water heater diagram

    Water Heater Temperature And Pressure Relief Valve

    Part #9000728

    The manufacturer no longer makes this part, and there's no substitute part

  • Water Heater Pilot Tube Assembly for AO Smith GDVH50L - Part 9000278

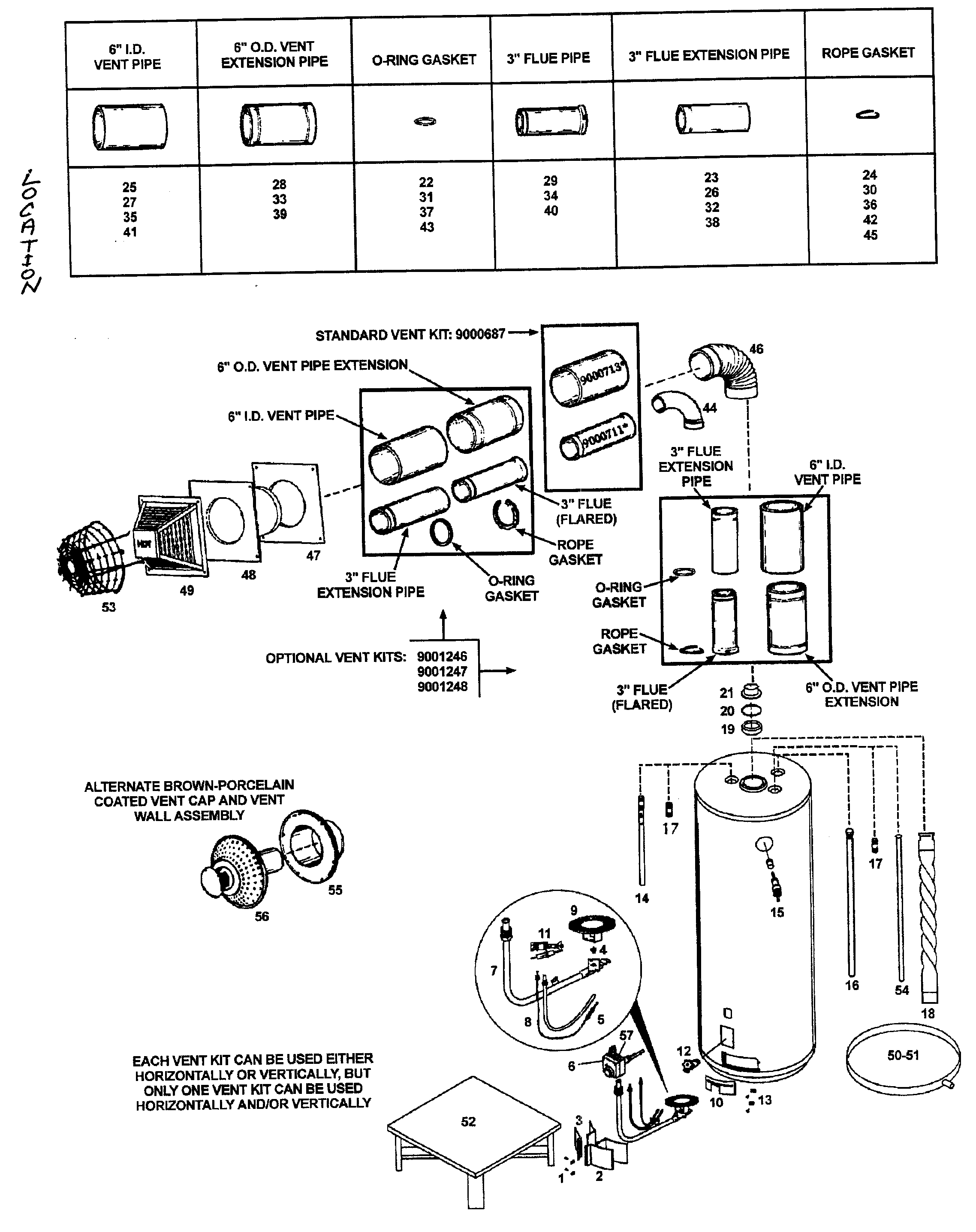

    Vent kit diagram

    Water Heater Pilot Tube Assembly

    Part #9000278
    This item is not returnable
    In Stock
    $20.04
    23% OFF Phone Price : $26.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Heater Pilot Burner And Igniter for AO Smith GDVH50L - Part 100109101

    Water heater diagram

    Natural Gas Pilot

    Part #9003084

    Replaced by #100109101

    Info Icon
    Manufacturer substitution
    This part replaces 9003084. Substitute parts can look different from the original.
    In Stock
    $159.38
    Minus Item
    Qty
    Plus Item
  • K,orifice,3 for AO Smith GDVH50L - Part 100108722

    Water heater diagram

    Orifice

    Part #9002134

    Replaced by #100108722

    Info Icon
    Manufacturer substitution
    This part replaces 9002134. Substitute parts can look different from the original.
    In Stock
    $36.53
    Minus Item
    Qty
    Plus Item
  • Water Heater Manifold Inner Door for AO Smith GDVH50L - Part 100108371

    Water heater diagram

    Water Heater Manifold Inner Door

    Part #9000281

    Replaced by #100108371

    Info Icon
    Manufacturer substitution
    This part replaces 9000281. Substitute parts can look different from the original.
    In Stock
    $58.02
    Minus Item
    Qty
    Plus Item
  • Water Heater Gas Control Valve for AO Smith GDVH50L - Part 100108354

    Water heater diagram

    Gas Valve

    Part #9000249

    Replaced by #100108354

    Info Icon
    Manufacturer substitution
    This part replaces 9000249. Substitute parts can look different from the original.
    In Stock
    $337.68
    Minus Item
    Qty
    Plus Item
  • K,drain Pan for AO Smith GDVH50L - Part 100108931

    Vent kit diagram

    Drain Pan

    Part #9002769

    Replaced by #100108931

    Info Icon
    Manufacturer substitution
    This part replaces 9002769. Substitute parts can look different from the original.
    In Stock
    $112.70
    Minus Item
    Qty
    Plus Item
  • Water Heater Thermocouple for AO Smith GDVH50L - Part 100108462

    Vent kit diagram

    Thrmocoupl

    Part #9000876

    Replaced by #100108462

    Info Icon
    Manufacturer substitution
    This part replaces 9000876. Substitute parts can look different from the original.
    In Stock
    $64.49
    Minus Item
    Qty
    Plus Item
  • Water Heater Igniter for AO Smith GDVH50L - Part 100109221

    Water heater diagram

    Water Heater Igniter

    Part #9003410

    Replaced by #100109221

    Info Icon
    Manufacturer substitution
    This part replaces 9003410. Substitute parts can look different from the original.
    In Stock
    $37.63
    Minus Item
    Qty
    Plus Item
  • Water Heater Burner Tube for AO Smith GDVH50L - Part 100108784

    Water heater diagram

    Water Heater Burner Tube

    Part #9002413

    Replaced by #100108784

    Info Icon
    Manufacturer substitution
    This part replaces 9002413. Substitute parts can look different from the original.
    In Stock
    $97.82
    Minus Item
    Qty
    Plus Item
