Black & Decker
Reciprocating Saw

Model # BDCR20B TYPE 1 Official Black & Decker reciprocating saw

Here are the diagrams and repair parts for Official Black & Decker BDCR20B-TYPE-1 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Switch 90591323
#5

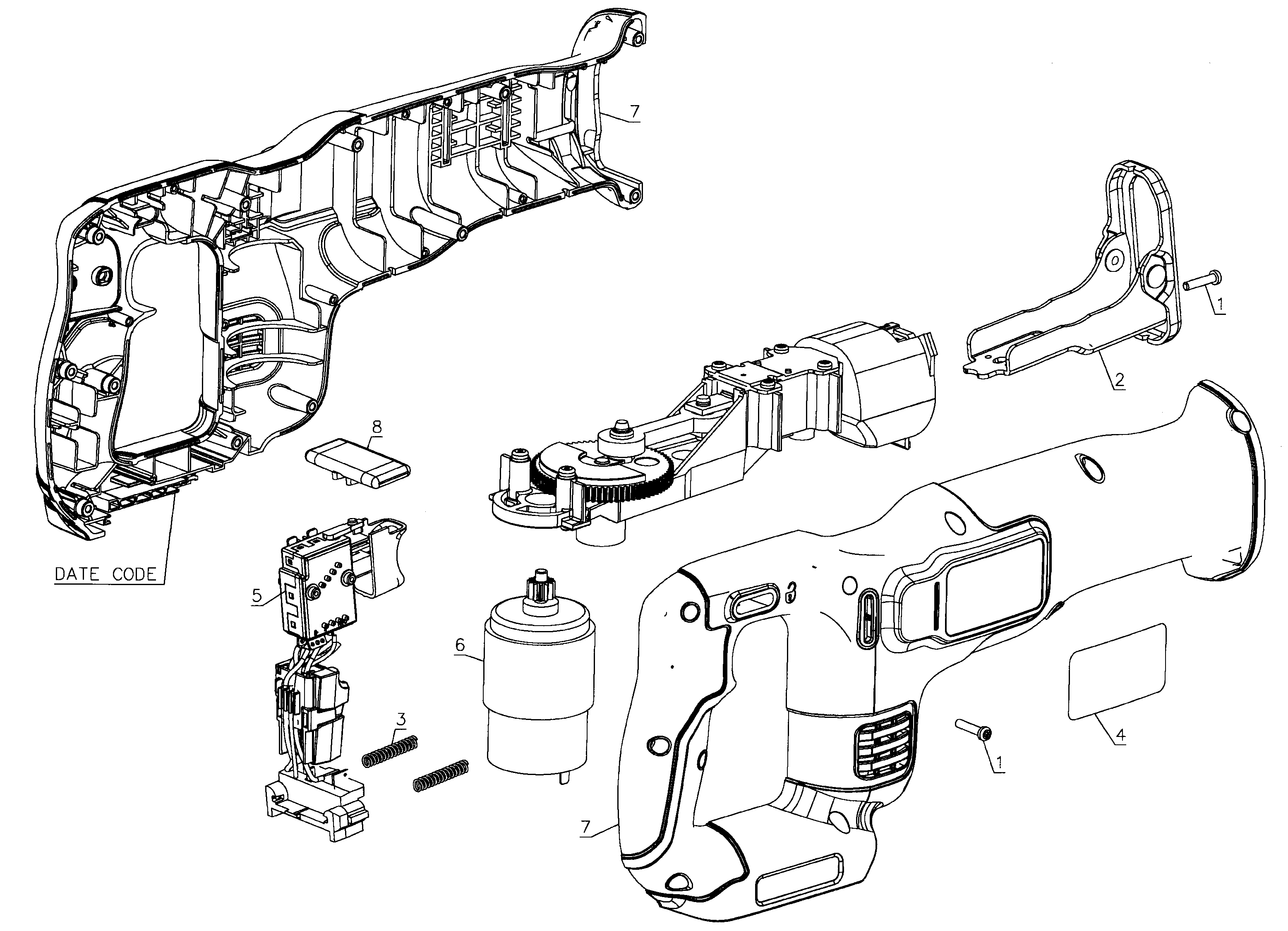

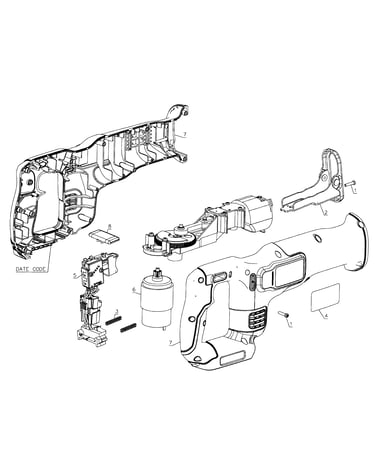

Main assy diagram

Switch

Part #90591323

The manufacturer no longer makes this part, and there's no substitute part

Actuator 90591822
#8

Main assy diagram

Actuator

Part #90591822

The manufacturer no longer makes this part, and there's no substitute part

Spring 5100035-03
#3

Main assy diagram

Spring

Part #5100035-03

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 90594385
#4

Main assy diagram

Nameplate

Part #90594385

The manufacturer no longer makes this part, and there's no substitute part

Shoe 498755-03
#2

Main assy diagram

Shoe

Part #498755-03

The manufacturer no longer makes this part, and there's no substitute part

Housing 90591332
#7

Main assy diagram

Housing

Part #90591332

The manufacturer no longer makes this part, and there's no substitute part

Screw 497283-01
#1

Main assy diagram

Screw

Part #497283-01

The manufacturer no longer makes this part, and there's no substitute part

Motor 90533876
#6

Main assy diagram

Motor

Part #90533876

The manufacturer no longer makes this part, and there's no substitute part
