Craftsman
Electric Line Trimmer

Model # 257796012 Official Craftsman weed & grass trimmer

Here are the diagrams and repair parts for Official Craftsman 257796012 weed & grass trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Tube 6802
#12

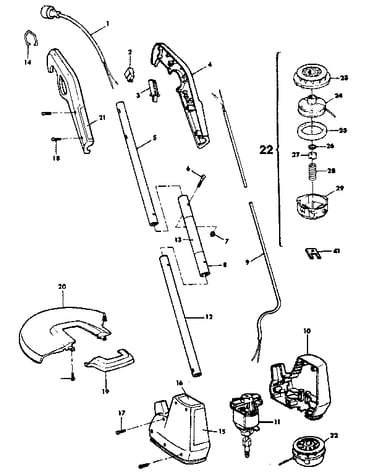

Drive shaft and head assembly diagram

Tube

Part #6802

The manufacturer no longer makes this part, and there's no substitute part

O-ring 3162
#26

Drive shaft and head assembly diagram

O-ring

Part #3162

The manufacturer no longer makes this part, and there's no substitute part

Adapter Nut 1667
#27

Drive shaft and head assembly diagram

Adapter nut

Part #1667

The manufacturer no longer makes this part, and there's no substitute part

Harness 8660-2
#9

Drive shaft and head assembly diagram

Harness

Part #8660-2

The manufacturer no longer makes this part, and there's no substitute part

Trigger 6780-04
#3

Drive shaft and head assembly diagram

Trigger

Part #6780-04

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 2345-2
#1

Drive shaft and head assembly diagram

Power cord

Part #2345-2

The manufacturer no longer makes this part, and there's no substitute part

Label Housing 8624
#16

Drive shaft and head assembly diagram

Label housing

Part #8624

The manufacturer no longer makes this part, and there's no substitute part

Washer 52-020
#40

Motor and adapter assembly diagram

Washer

Part #52-020

The manufacturer no longer makes this part, and there's no substitute part

Span Wrench 1668

#NI

All parts diagram

Span wrench

Part #1668

The manufacturer no longer makes this part, and there's no substitute part

Tube 3932-3
#8

Drive shaft and head assembly diagram

Tube

Part #3932-3

The manufacturer no longer makes this part, and there's no substitute part
