Digital Camcorder

Model # HDR-CX110B Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX110B camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Screw 263556231
#S2

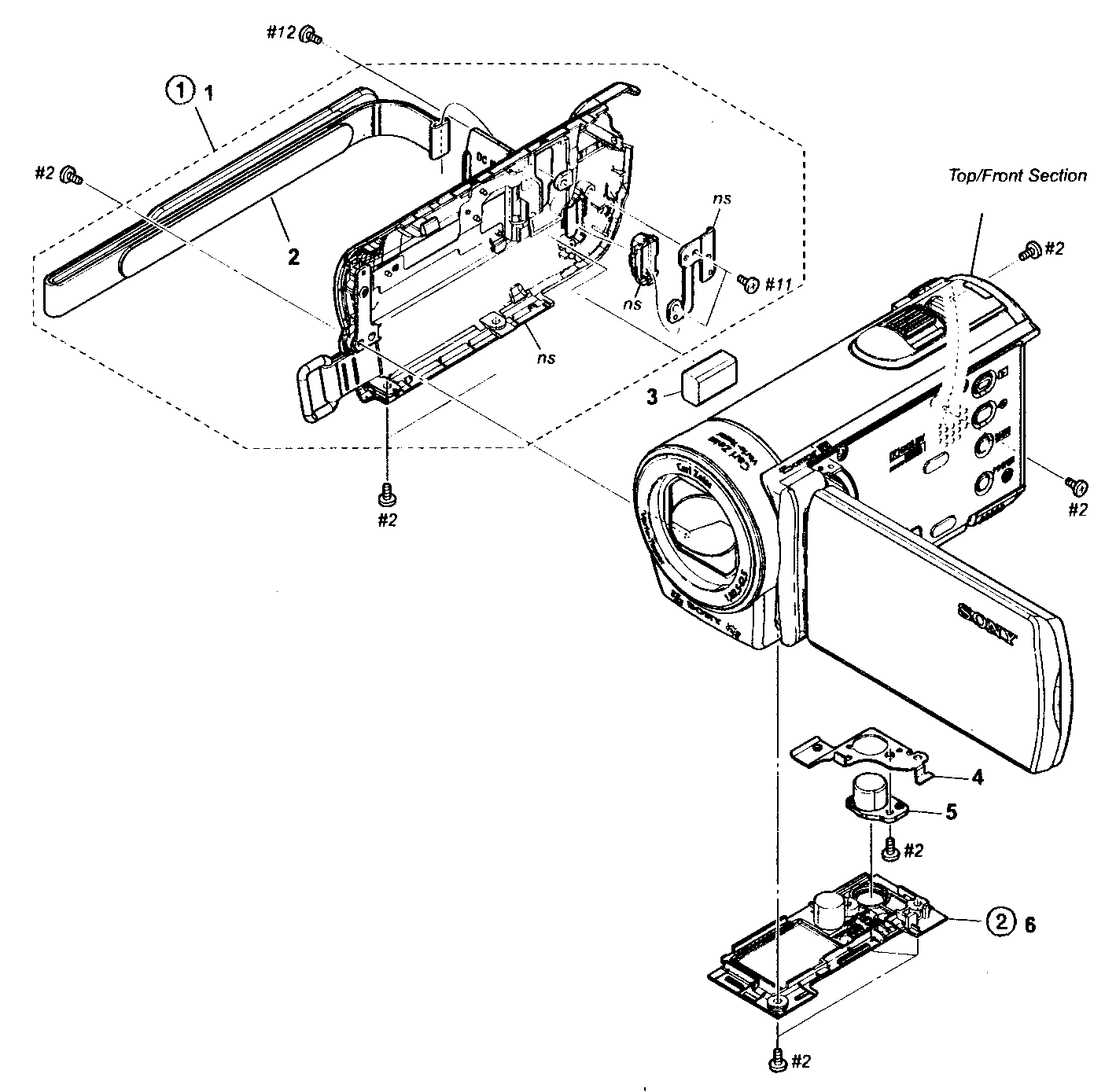

Cabinet assy diagram

Screw

Part #263556231

The manufacturer no longer makes this part, and there's no substitute part

Sheet/fltr 417711901
#118

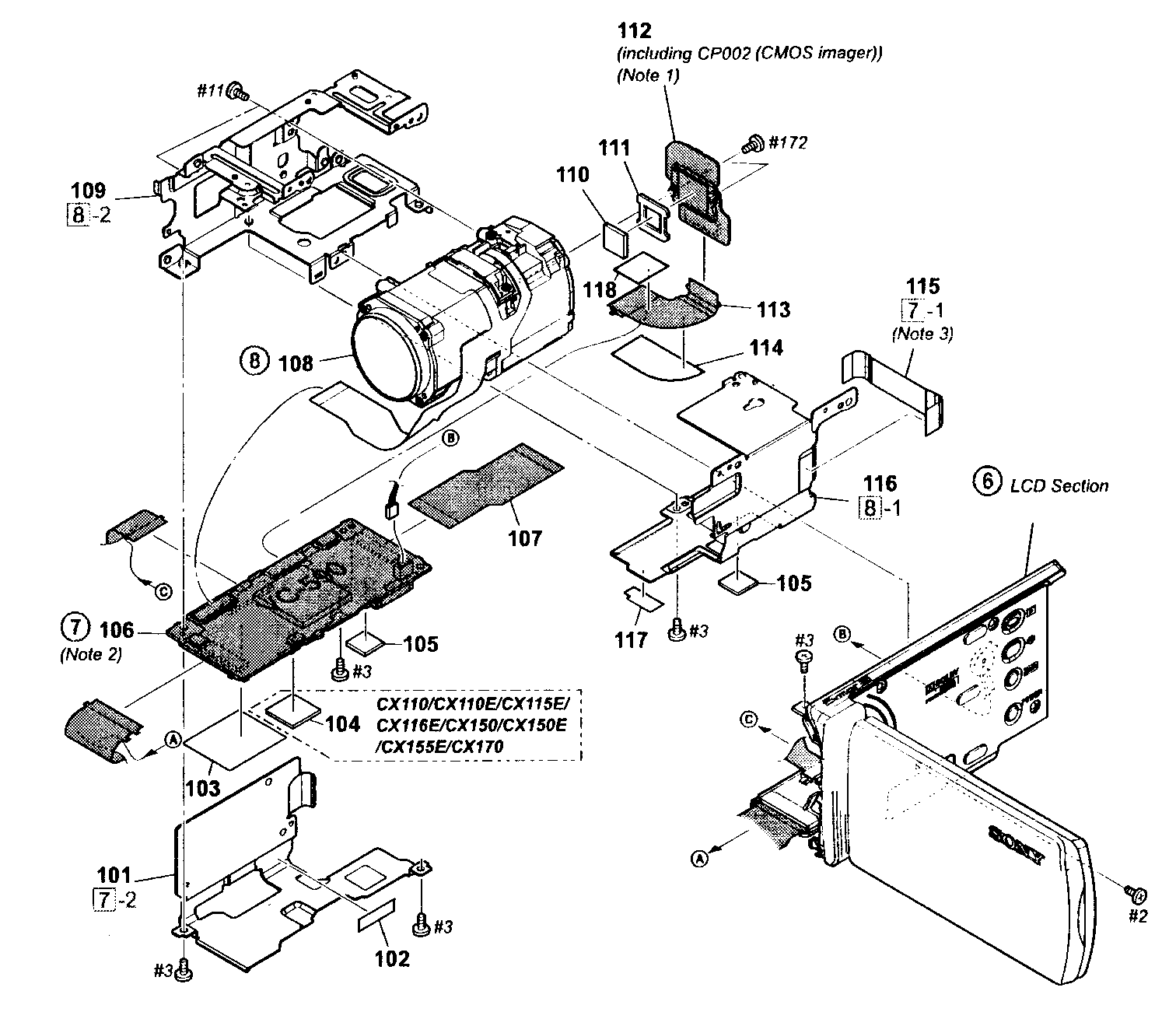

Main assy diagram

Sheet/fltr

Part #417711901

Replaced by #417711901

?
Manufacturer substitution
This part replaces 417711901. Substitute parts can look different from the original.
This item is not returnable
$3.15
In Stock
Cabinet 417197001
#156

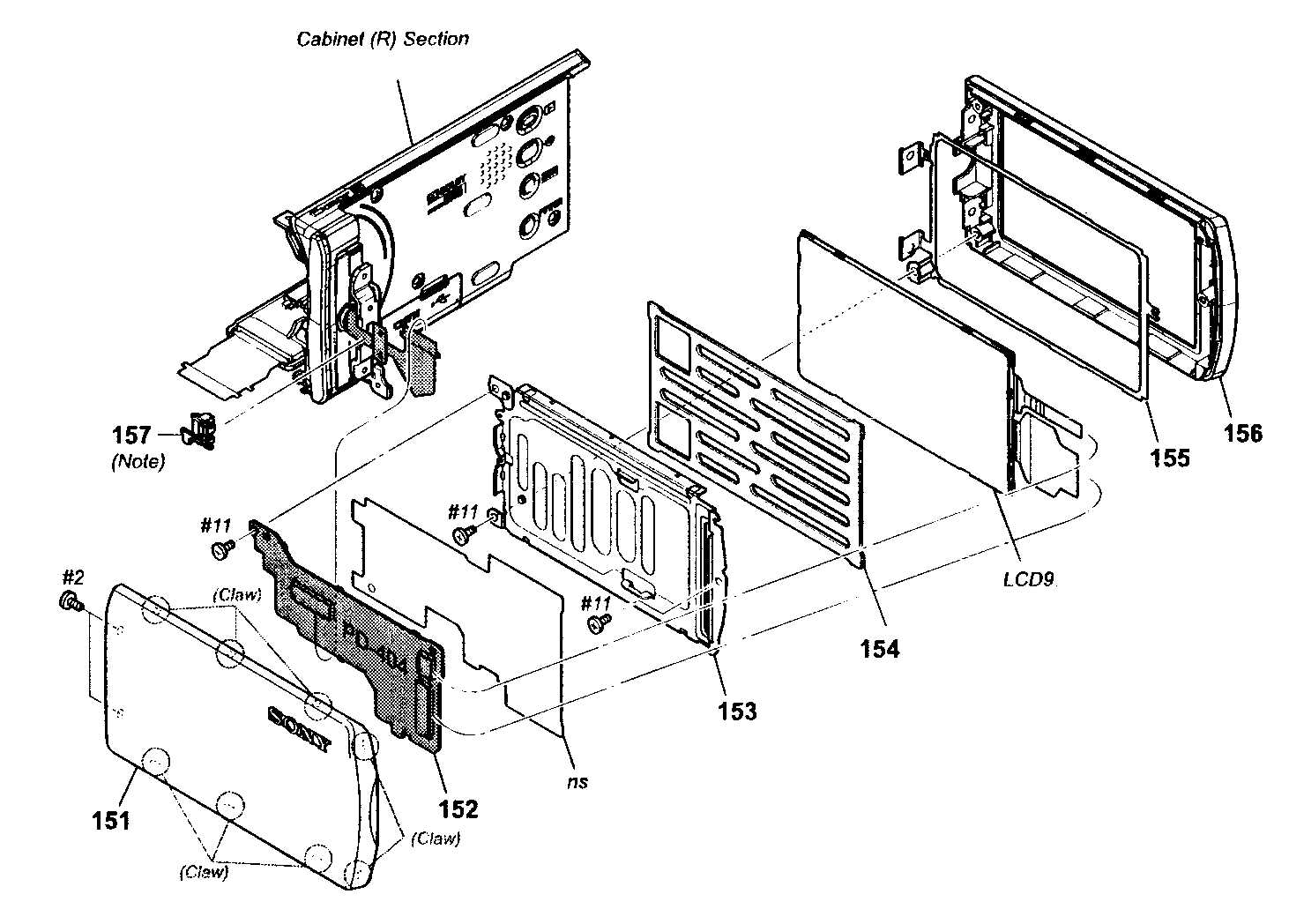

Lcd assy diagram

Cabinet

Part #417197001

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker 185831051
#SP90

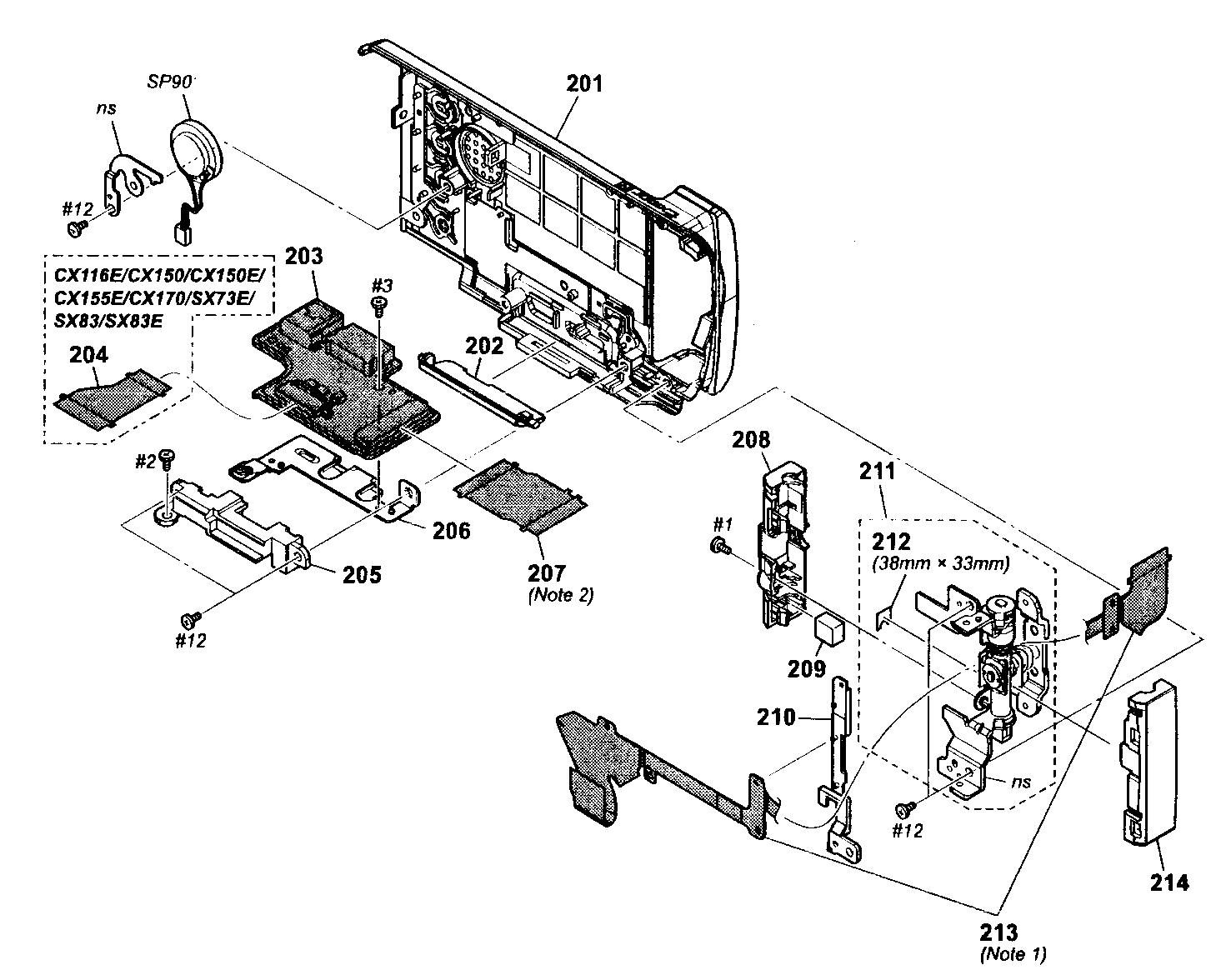

R cabinet diagram

Camcorder speaker

Part #185831051

The manufacturer no longer makes this part, and there's no substitute part

Screw 307889011
#S11

Cabinet assy diagram

Screw

Part #307889011

The manufacturer no longer makes this part, and there's no substitute part

Retaining Claw 417181801
#254

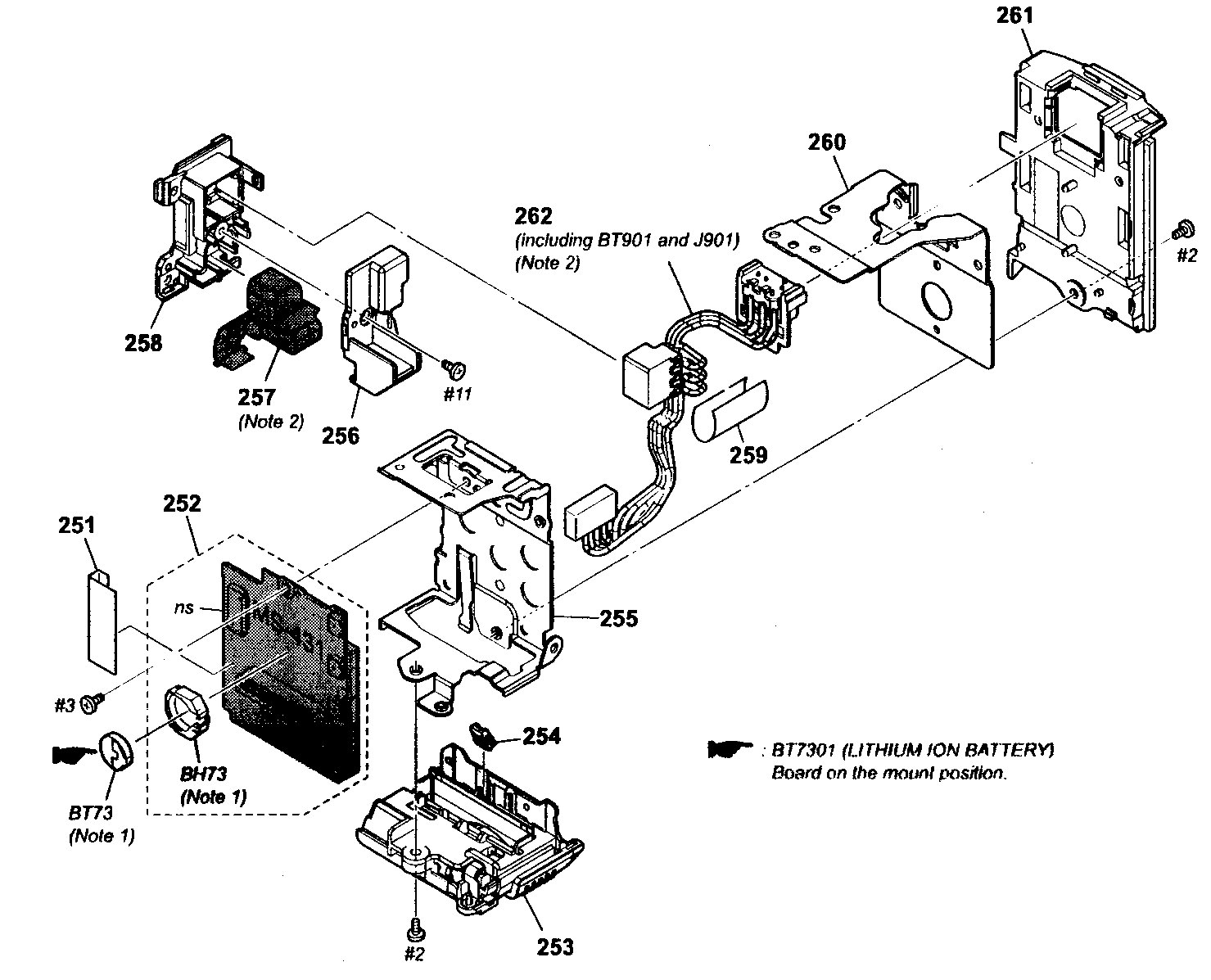

Rear cabinet diagram

Retaining claw

Part #417181801

Replaced by #417181801

?
Manufacturer substitution
This part replaces 417181801. Substitute parts can look different from the original.
This item is not returnable
$7.22
In Stock
Battery,li 175613412
#BT73

Rear cabinet diagram

Battery,li

Part #175613412

The manufacturer no longer makes this part, and there's no substitute part

Filtrblock 185606121
#110

Main assy diagram

Filtrblock

Part #185606121

Replaced by #185606121

?
Manufacturer substitution
This part replaces 185606121. Substitute parts can look different from the original.
$9.09
In Stock
Frame 417173401
#56

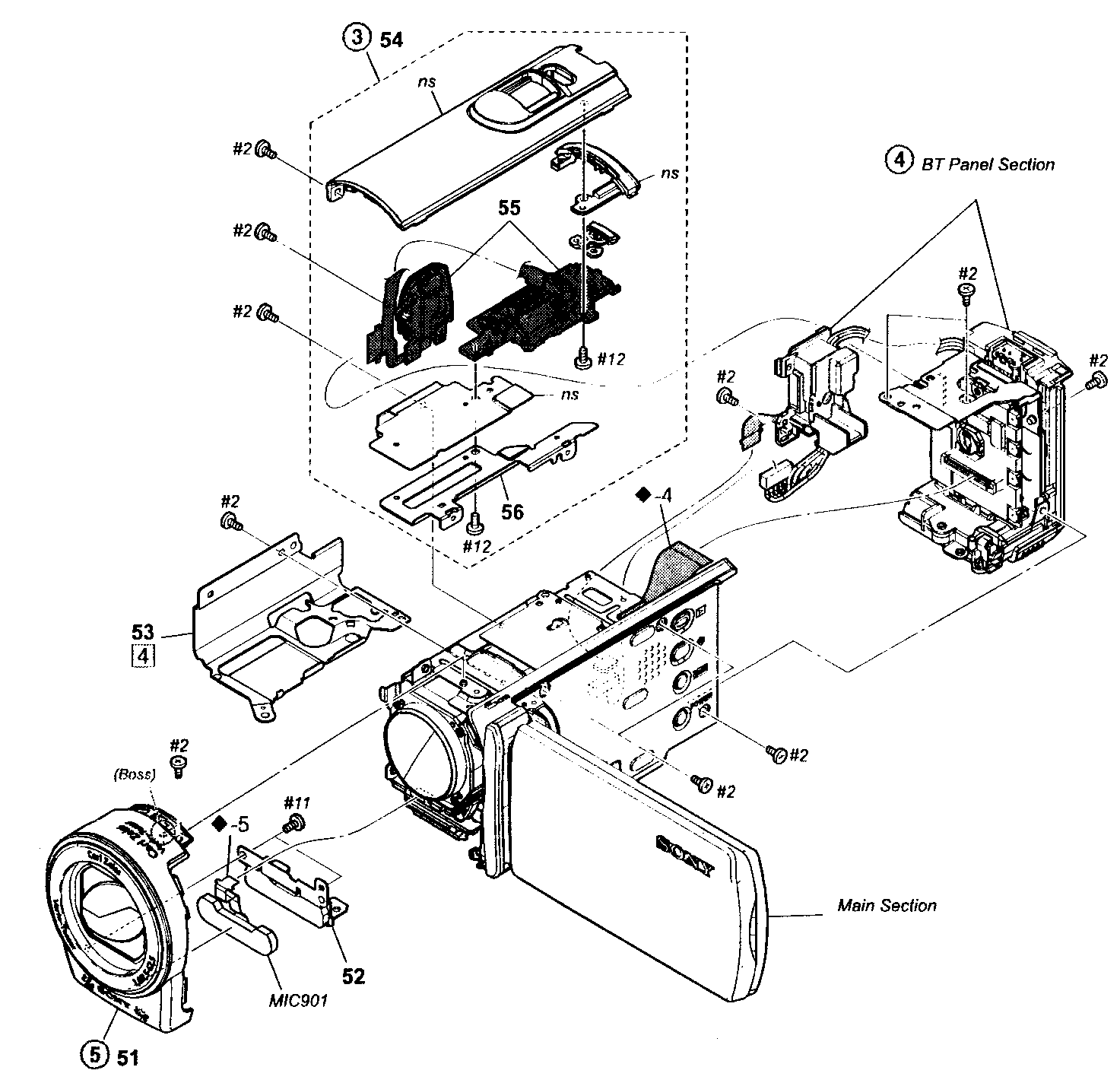

Top/fr assy diagram

Frame

Part #417173401

Replaced by #417173401

?
Manufacturer substitution
This part replaces 417173401. Substitute parts can look different from the original.
$10.79
In Stock
Cabinet A1757179A
#201

R cabinet diagram

Cabinet

Part #A1757179A

The manufacturer no longer makes this part, and there's no substitute part
