Model # 545479670 Official Sears 20" girls' hi rise bicycle

Here are the diagrams and repair parts for Official Sears 545479670 20" girls' hi rise bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 40 parts |

#21

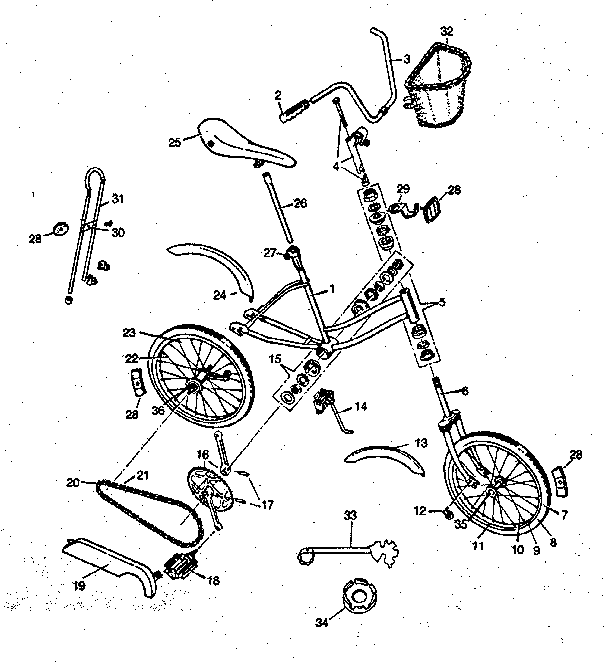

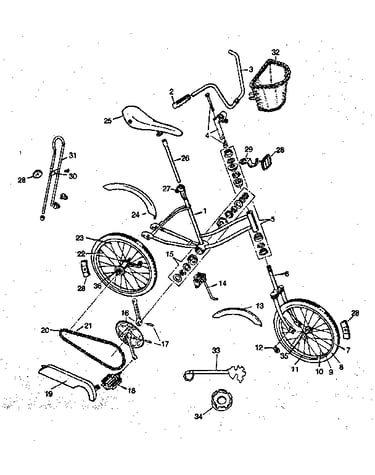

Unit parts diagram

Master link

Part #073001

The manufacturer no longer makes this part, and there's no substitute part

#36

Unit parts diagram

Pr sprocket

Part #106002

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit parts diagram

Frt fndr

Part #100013

The manufacturer no longer makes this part, and there's no substitute part

#32

Unit parts diagram

Basket

Part #110002

The manufacturer no longer makes this part, and there's no substitute part

#30

Unit parts diagram

R reflcl brk

Part #082015

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Tire

Part #040029

The manufacturer no longer makes this part, and there's no substitute part

#23

Unit parts diagram

R spk/npl

Part #049511

The manufacturer no longer makes this part, and there's no substitute part

#22

Unit parts diagram

Rr wheel asm

Part #045507

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Bicycle wheel, front

Part #045006

The manufacturer no longer makes this part, and there's no substitute part

#20

Unit parts diagram

Chain w/link

Part #072008

The manufacturer no longer makes this part, and there's no substitute part
