Model # 867748821 Official Kenmore oil-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867748821 oil-fired horizontal furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Limit Control 69287
#9

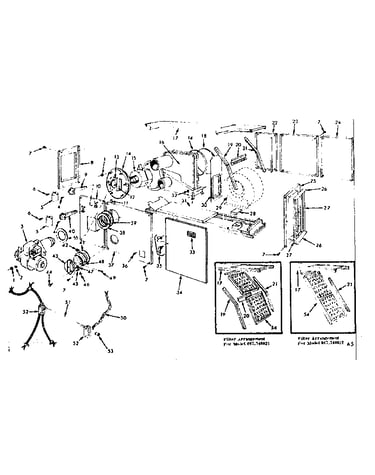

Furnace assembly diagram

Limit control

Part #69287

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 72400
#22B

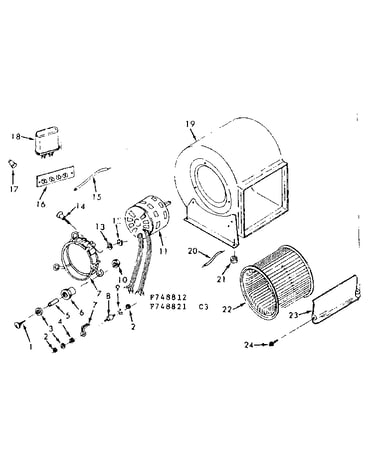

H-q blower assembly diagram

Blower wheel

Part #72400

Replaced by #601210

?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$194.16
In Stock
Air Filter 64488
#54A

Furnace assembly diagram

Air filter

Part #64488

The manufacturer no longer makes this part, and there's no substitute part

Screw 448445
#6

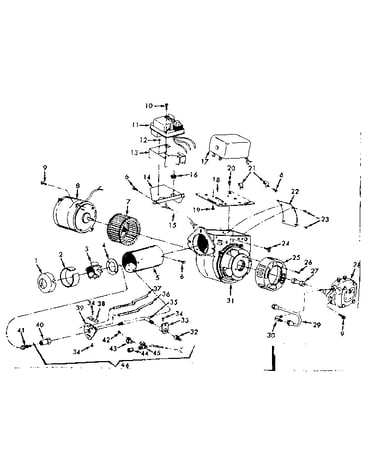

Oil burner assembly diagram

Screw

Part #448445

The manufacturer no longer makes this part, and there's no substitute part

Washer 9416904
#3A

H-q blower assembly diagram

Washer

Part #9416904

The manufacturer no longer makes this part, and there's no substitute part

Support 86023
#7B

H-q blower assembly diagram

Support

Part #86023

Replaced by #1050254

?
Manufacturer substitution
This part replaces 86023. Substitute parts can look different from the original.
$125.18
In Stock
Coupling 91818
#27A

Oil burner assembly diagram

Coupling

Part #91818

The manufacturer no longer makes this part, and there's no substitute part

Pipe 91820
#29

Oil burner assembly diagram

Pipe

Part #91820

The manufacturer no longer makes this part, and there's no substitute part

Screw 85790
Screw

Part #85790

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64485
#41B

Oil burner assembly diagram

Nozzle

Part #64485

The manufacturer no longer makes this part, and there's no substitute part
