Admiral (Kelon) AW-08DR1FHU air conditioner

Admiral (Kelon) AW-08DR1FHU air conditioner Parts

Here are the diagrams and repair parts for Admiral (Kelon) AW-08DR1FHU air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AW-08DR1FHU Air Conditioner

  • Hisense Thermistor for Admiral (Kelon) AW-08DR1FHU - Part 814071

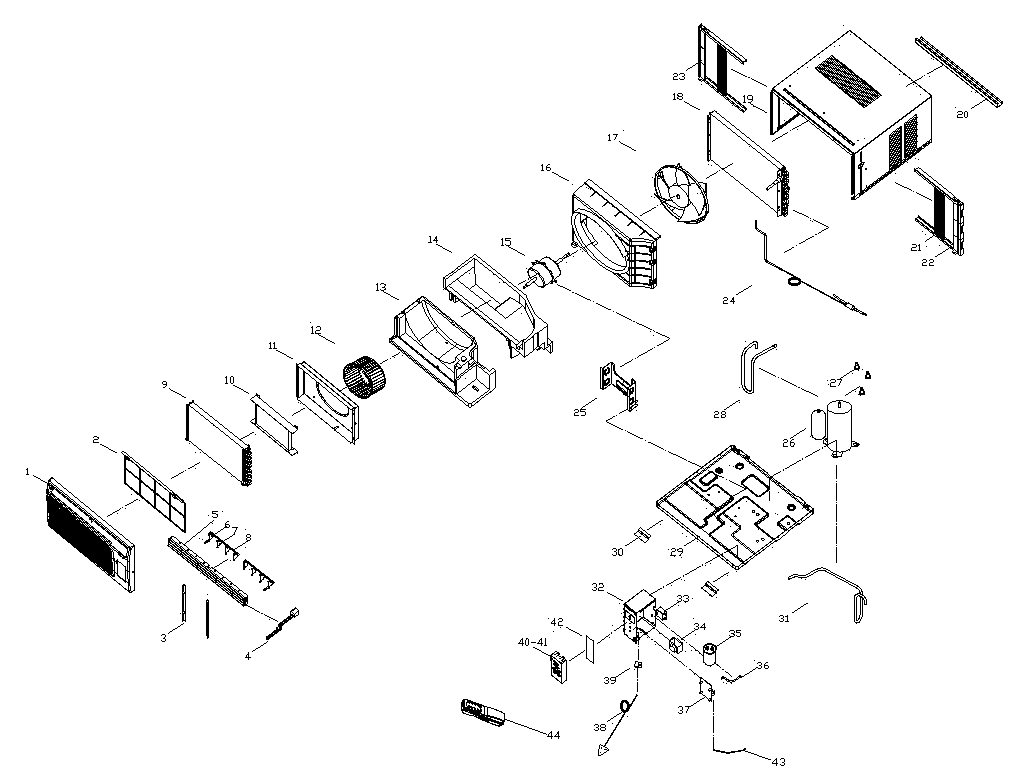

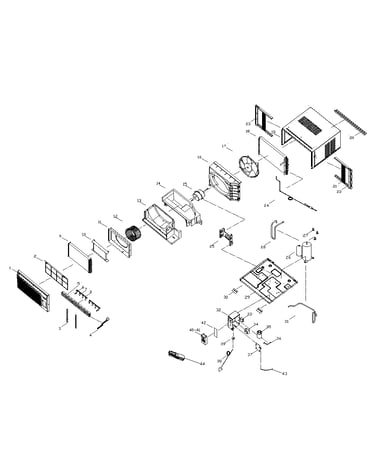

    Cabinet parts diagram

    Hisense Thermistor

    Part #814071

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Rail for Admiral (Kelon) AW-08DR1FHU - Part 812103

    Cabinet parts diagram

    Hisense Rail

    Part #812103

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Ac Cord for Admiral (Kelon) AW-08DR1FHU - Part 1501665

    Cabinet parts diagram

    Hisense Ac Cord

    Part #1501665

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Suction Pipe for Admiral (Kelon) AW-08DR1FHU - Part 813034163

    Cabinet parts diagram

    Hisense Suction Pipe

    Part #813034163

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Remote Control for Admiral (Kelon) AW-08DR1FHU - Part 814012400

    Cabinet parts diagram

    Hisense Remote Control

    Part #814012400

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Filter for Admiral (Kelon) AW-08DR1FHU - Part 8110567

    Cabinet parts diagram

    Hisense Filter

    Part #8110567

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Channel for Admiral (Kelon) AW-08DR1FHU - Part 812034

    Cabinet parts diagram

    Hisense Channel

    Part #812034

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Capacitor for Admiral (Kelon) AW-08DR1FHU - Part 1411701

    Cabinet parts diagram

    Hisense Capacitor

    Part #1411701

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Fan for Admiral (Kelon) AW-08DR1FHU - Part 8101132

    Cabinet parts diagram

    Hisense Fan

    Part #8101132

    The manufacturer no longer makes this part, and there's no substitute part

  • Hisense Verti.vane for Admiral (Kelon) AW-08DR1FHU - Part 812017

    Cabinet parts diagram

    Hisense Verti.vane

    Part #812017

    The manufacturer no longer makes this part, and there's no substitute part
