Model # 17129240500 Official LXI portable phonograph

Here are the diagrams and repair parts for Official LXI 17129240500 portable phonograph, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

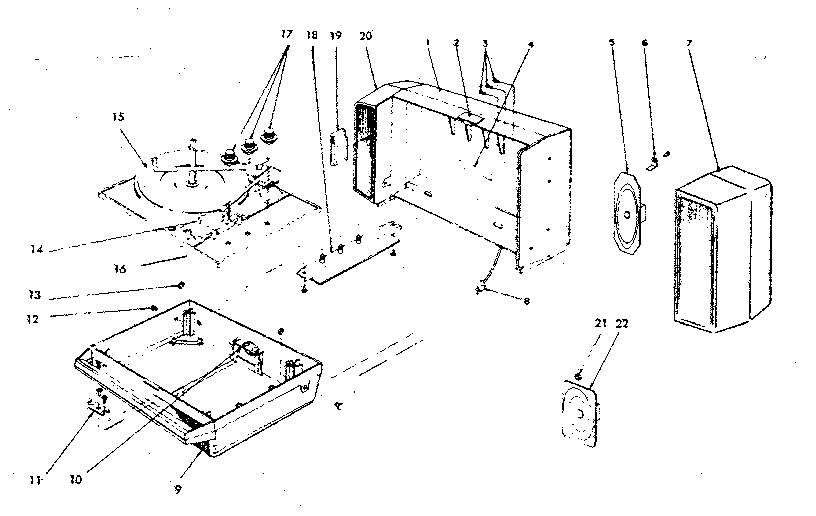

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
P.u. Balance Spring A107526
#120

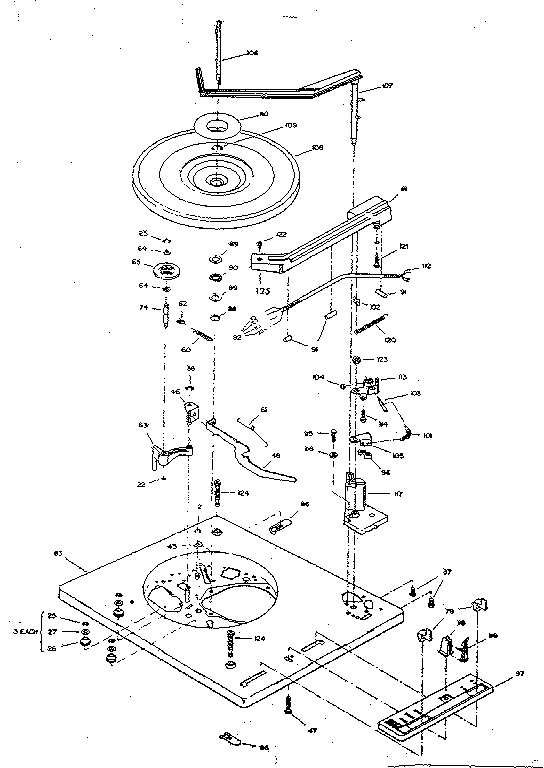

Bsr record changer - top view diagram

P.u. balance spring

Part #A107526

The manufacturer no longer makes this part, and there's no substitute part

Spring (unit Mounting) A106090

#NI

All parts diagram

Spring (unit mounting)

Part #A106090

The manufacturer no longer makes this part, and there's no substitute part

Retaining Clip A104882
#35

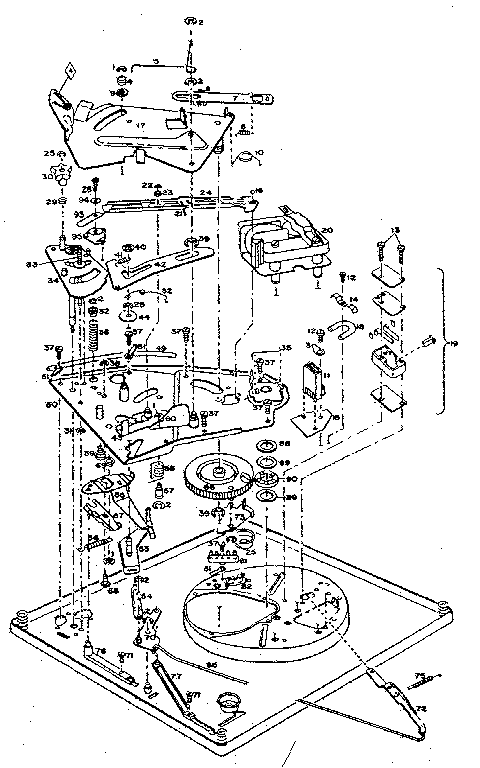

Bsr record changer - bottom view diagram

Retaining clip

Part #A104882

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly B110982
#19

Bsr record changer - bottom view diagram

Switch assembly

Part #B110982

The manufacturer no longer makes this part, and there's no substitute part

Pick-up Pivot A108381
#103

Bsr record changer - top view diagram

Pick-up pivot

Part #A108381

The manufacturer no longer makes this part, and there's no substitute part

Washer A106966
#23

Bsr record changer - bottom view diagram

Washer

Part #A106966

The manufacturer no longer makes this part, and there's no substitute part

Actuating Slide Spring A105901
#21

Bsr record changer - bottom view diagram

Actuating slide spring

Part #A105901

The manufacturer no longer makes this part, and there's no substitute part

Rubber Mounting A102181
Rubber mounting

Part #A102181

The manufacturer no longer makes this part, and there's no substitute part

Circlip A102128
Circlip

Part #A102128

The manufacturer no longer makes this part, and there's no substitute part

Circlip A100785
#1

Bsr record changer - bottom view diagram

Circlip

Part #A100785

The manufacturer no longer makes this part, and there's no substitute part
