KitchenAid KHWL160PSS1 hot water dispenser

KitchenAid KHWL160PSS1 hot water dispenser Parts

Here are the diagrams and repair parts for KitchenAid KHWL160PSS1 hot water dispenser, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KHWL160PSS1 Hot Water Dispenser

  • Spout Body for KitchenAid KHWL160PSS1 - Part 8557950

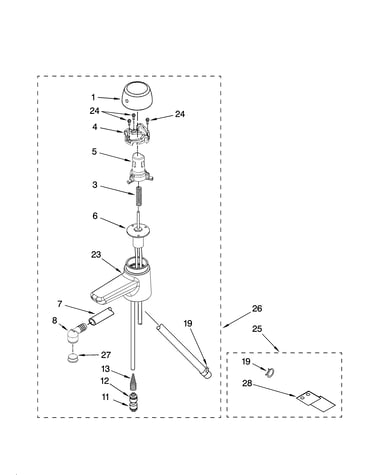

    Spout unit parts diagram

    Spout Body

    Part #8557950
    In Stock
    $308.67
    Minus Item
    Qty
    Plus Item
  • Lock Washer for KitchenAid KHWL160PSS1 - Part 4159493

    Lock Washer

    Part #4159493
    In Stock
    $37.03
    Minus Item
    Qty
    Plus Item
  • Screw for KitchenAid KHWL160PSS1 - Part WP313808

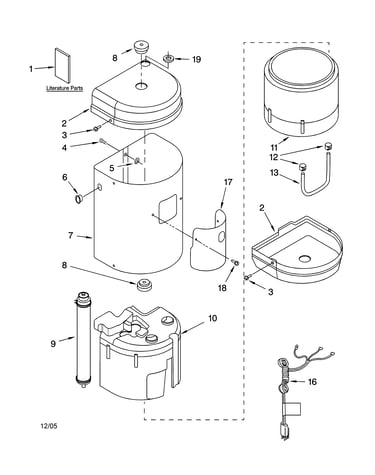

    Outer cover & insulation parts diagram

    Screw

    Part #311932

    Replaced by #WP313808

    Info Icon
    Manufacturer substitution
    This part replaces 311932. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermostat-h for KitchenAid KHWL160PSS1 - Part W11520307

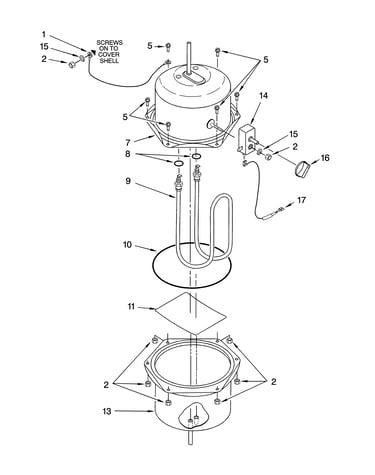

    Upper & lower tank shell diagram

    Thermostat

    Part #3193512

    Replaced by #W11520307

    Info Icon
    Manufacturer substitution
    This part replaces 3193512. Substitute parts can look different from the original.
    In Stock
    $66.91
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tube Fitting for KitchenAid KHWL160PSS1 - Part WP2198677

    Spout unit parts diagram

    Union-watr

    Part #3191383

    Replaced by #WP2198677

    Info Icon
    Manufacturer substitution
    This part replaces 3191383. Substitute parts can look different from the original.
    In Stock
    $21.40
    22% OFF Phone Price : $27.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Bottom Insulation for KitchenAid KHWL160PSS1 - Part 3192012

    Outer cover & insulation parts diagram

    Bottom Insulation

    Part #3192012

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for KitchenAid KHWL160PSS1 - Part 8534013

    Spout unit parts diagram

    Screw

    Part #8534013

    The manufacturer no longer makes this part, and there's no substitute part

  • O-ring for KitchenAid KHWL160PSS1 - Part 4159824

    Upper & lower tank shell diagram

    O-ring

    Part #4159824

    The manufacturer no longer makes this part, and there's no substitute part

  • Deflector for KitchenAid KHWL160PSS1 - Part 4176126

    Upper & lower tank shell diagram

    Deflector

    Part #4176126

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Cord for KitchenAid KHWL160PSS1 - Part 3192352

    Outer cover & insulation parts diagram

    Power Cord

    Part #3192352

    The manufacturer no longer makes this part, and there's no substitute part
