Model # GAGB28FDYG00 Official Gladiator full door gearbox

Here are the diagrams and repair parts for Official Gladiator GAGB28FDYG00 full door gearbox, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Panel W10541602
#9

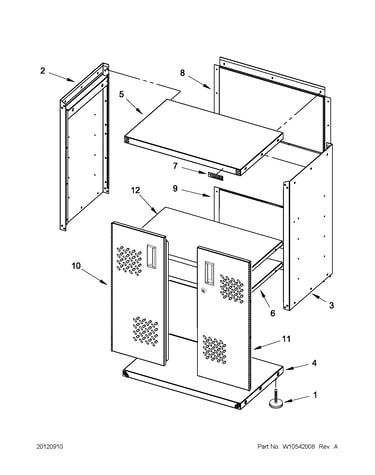

Full door gearbox parts diagram

Panel

Part #W10541602

$47.82
In Stock
Panel W10541649
#4

Full door gearbox parts diagram

Panel

Part #W10541649

$48.29
In Stock
Shelf W10541677
#12

Full door gearbox parts diagram

Shelf

Part #W10541677

$54.47
In Stock
Door W10541653
#10

Full door gearbox parts diagram

Door

Part #W10541653

$73.25
In Stock
Panel W10541651
#3

Full door gearbox parts diagram

Panel

Part #W10541651

$86.00
In Stock
Panel W10541607
#8

Full door gearbox parts diagram

Panel

Part #W10541607

$55.98
In Stock
Part W10541655
#NI

Full door gearbox parts diagram

Part

Part #W10541655

$20.80
In Stock
Door W10541652
#11

Full door gearbox parts diagram

Door

Part #W10541652

$78.47
In Stock
Panel W10520288
#5

Full door gearbox parts diagram

Panel

Part #W10520288

$100.45
In Stock
Levler-leg W10541658
#1

Full door gearbox parts diagram

Levler-leg

Part #W10541658

Replaced by #W11256713

?
Manufacturer substitution
This part replaces W10541658. Substitute parts can look different from the original.
$10.99
In Stock
