Maytag MMW5530CAW wall oven/microwave combo Parts

Here are the diagrams and repair parts for Maytag MMW5530CAW wall oven/microwave combo, as well as links to manuals and error code tables, if available.

Maytag MMW5530CAW wall oven/microwave combo
By Schematic
By Part

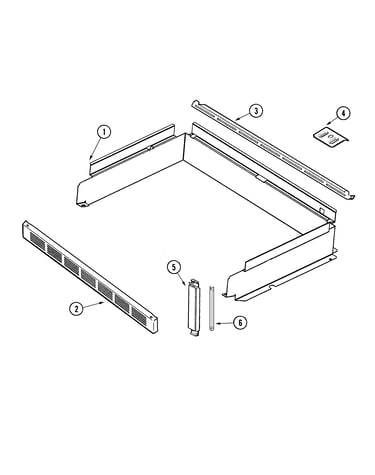

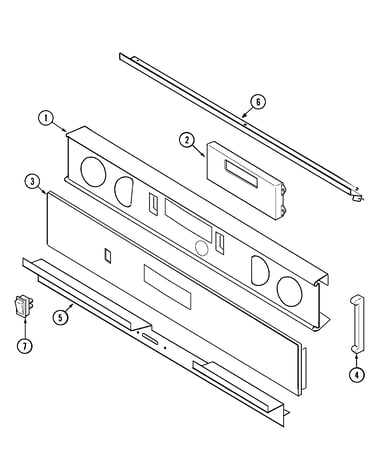

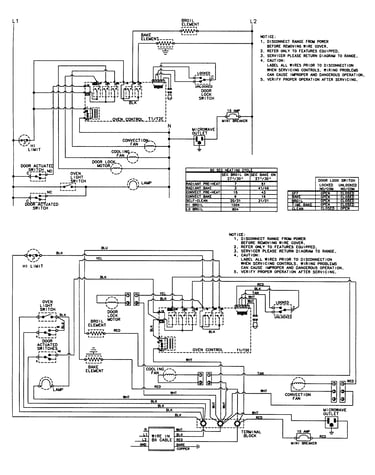

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MMW5530CAW Wall Oven/Microwave Combo

  • Range Terminal Block for Maytag MMW5530CAW - Part WPW10245259

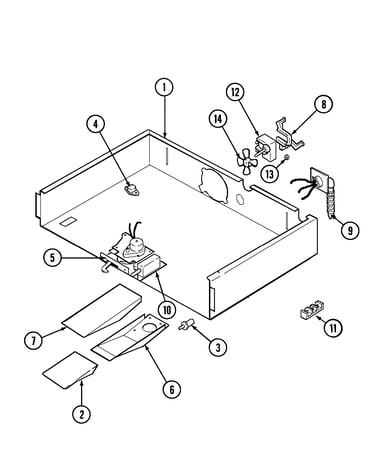

    Internal controls diagram

    Terminal Block

    Part #7401P038-60

    Replaced by #WPW10245259

    Info Icon
    Manufacturer substitution
    This part replaces 7401P038-60. Substitute parts can look different from the original.
    In Stock
    $28.75
    17% OFF Phone Price : $34.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Switch for Maytag MMW5530CAW - Part WB24T10147

    Internal controls diagram

    Door Switch

    Part #71001129

    Replaced by #WB24T10147

    Info Icon
    Manufacturer substitution
    This part replaces 71001129. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.54
    23% OFF Phone Price : $26.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Seal for Maytag MMW5530CAW - Part WP71001841

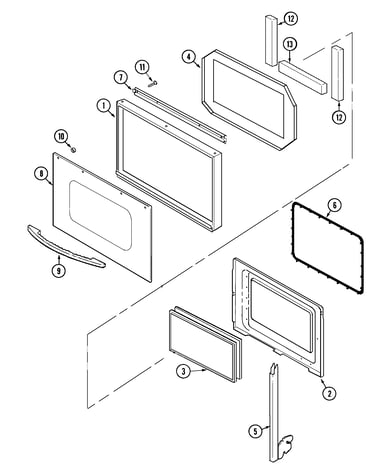

    Door diagram

    Wall Oven Door Seal

    Part #71001841

    Replaced by #WP71001841

    Info Icon
    Manufacturer substitution
    This part replaces 71001841. Substitute parts can look different from the original.
    In Stock
    $100.90
    11% OFF Phone Price : $112.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Maytag MMW5530CAW - Part W11233072

    Screw (#8ab)

    Part #71001183

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 71001183. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Hinge Receiver for Maytag MMW5530CAW - Part WP74008015

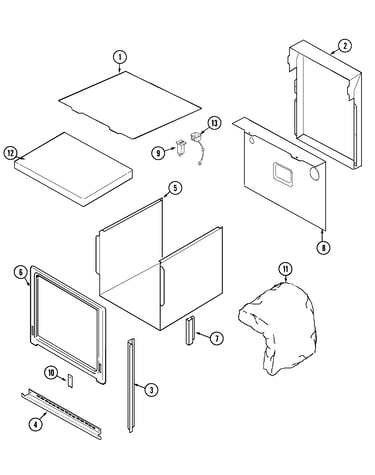

    Body diagram

    Receptacle

    Part #71001828

    Replaced by #WP74008015

    Info Icon
    Manufacturer substitution
    This part replaces 71001828. Substitute parts can look different from the original.
    In Stock
    $203.54
    6% OFF Phone Price : $215.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Rack for Maytag MMW5530CAW - Part WPW10282527

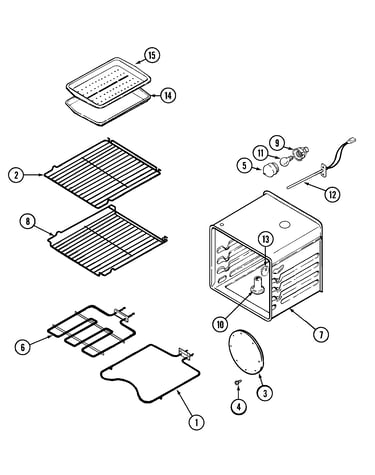

    Oven diagram

    Oven Rack

    Part #71001865

    Replaced by #WPW10282527

    Info Icon
    Manufacturer substitution
    This part replaces 71001865. Substitute parts can look different from the original.
    In Stock
    $69.84
    8% OFF Phone Price : $75.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Maytag MMW5530CAW - Part WP7101P126-60

    Internal controls diagram

    Screw

    Part #708310

    Replaced by #WP7101P126-60

    Info Icon
    Manufacturer substitution
    This part replaces 708310. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.95
    17% OFF Phone Price : $5.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Rack for Maytag MMW5530CAW - Part WPW10282527

    Oven diagram

    Oven Rack

    Part #71001862

    Replaced by #WPW10282527

    Info Icon
    Manufacturer substitution
    This part replaces 71001862. Substitute parts can look different from the original.
    In Stock
    $69.84
    8% OFF Phone Price : $75.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Maytag MMW5530CAW - Part WP74003976

    Oven diagram

    Screw

    Part #74003976

    Replaced by #WP74003976

    Info Icon
    Manufacturer substitution
    This part replaces 74003976. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.06
    17% OFF Phone Price : $6.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for Maytag MMW5530CAW - Part WP74011278

    Oven diagram

    Receptacle

    Part #71001866

    Replaced by #WP74011278

    Info Icon
    Manufacturer substitution
    This part replaces 71001866. Substitute parts can look different from the original.
    In Stock
    $95.48
    11% OFF Phone Price : $107.48Info Icon
    Minus Item
    Qty
    Plus Item
