Aiwa
Compact Stereo System

Model # CX-NV8000 Official Aiwa stereo

Here are the diagrams and repair parts for Official Aiwa CX-NV8000 stereo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Casset Box 86NF5029019
#18

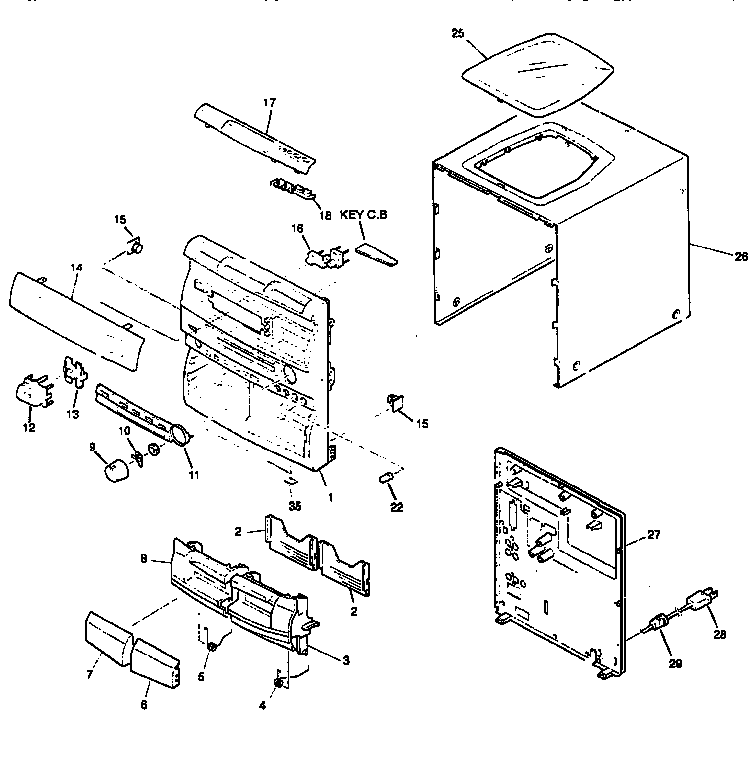

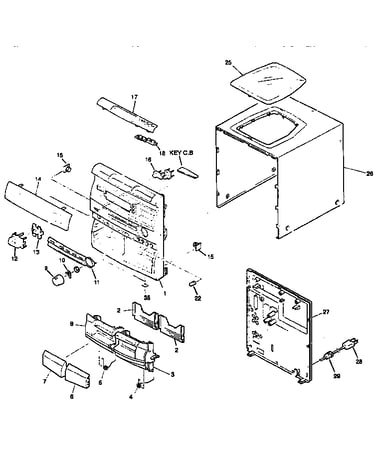

Cabinet parts diagram

Casset box

Part #86NF5029019

The manufacturer no longer makes this part, and there's no substitute part

Knob 86NF5020019
#25

Cabinet parts diagram

Knob

Part #86NF5020019

The manufacturer no longer makes this part, and there's no substitute part

Key 86NF5019019
#4

Cabinet parts diagram

Key

Part #86NF5019019

The manufacturer no longer makes this part, and there's no substitute part

Motor 87045347019

#NI

All parts diagram

Motor

Part #87045347019

The manufacturer no longer makes this part, and there's no substitute part

Antenna 87006225019

#NI

All parts diagram

Antenna

Part #87006225019

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 87A20062010

#NI

All parts diagram

Integrated circuit

Part #87A20062010

The manufacturer no longer makes this part, and there's no substitute part

Remote 85NF5631019

#NI

All parts diagram

Remote

Part #85NF5631019

The manufacturer no longer makes this part, and there's no substitute part

Felt 80VT1202019
#19

Cabinet parts diagram

Felt

Part #80VT1202019

The manufacturer no longer makes this part, and there's no substitute part

L Caset Door 82NF5218019
#21

Cabinet parts diagram

L caset door

Part #82NF5218019

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 86NF6002019
#14

Cabinet parts diagram

Cabinet

Part #86NF6002019

The manufacturer no longer makes this part, and there's no substitute part
