Amana M86P microwave Parts

Here are the diagrams and repair parts for Amana M86P microwave, as well as links to manuals and error code tables, if available.

Amana M86P microwave
By Schematic

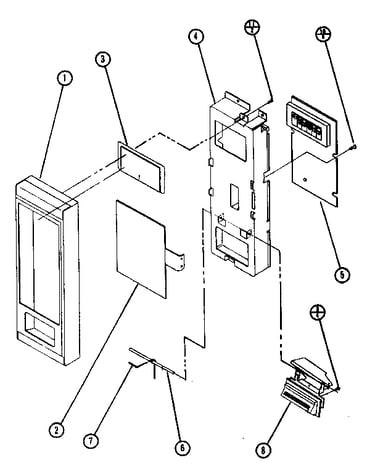

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forM86P Microwaves

  • Microwave Rectifier for Amana M86P - Part WP13091701

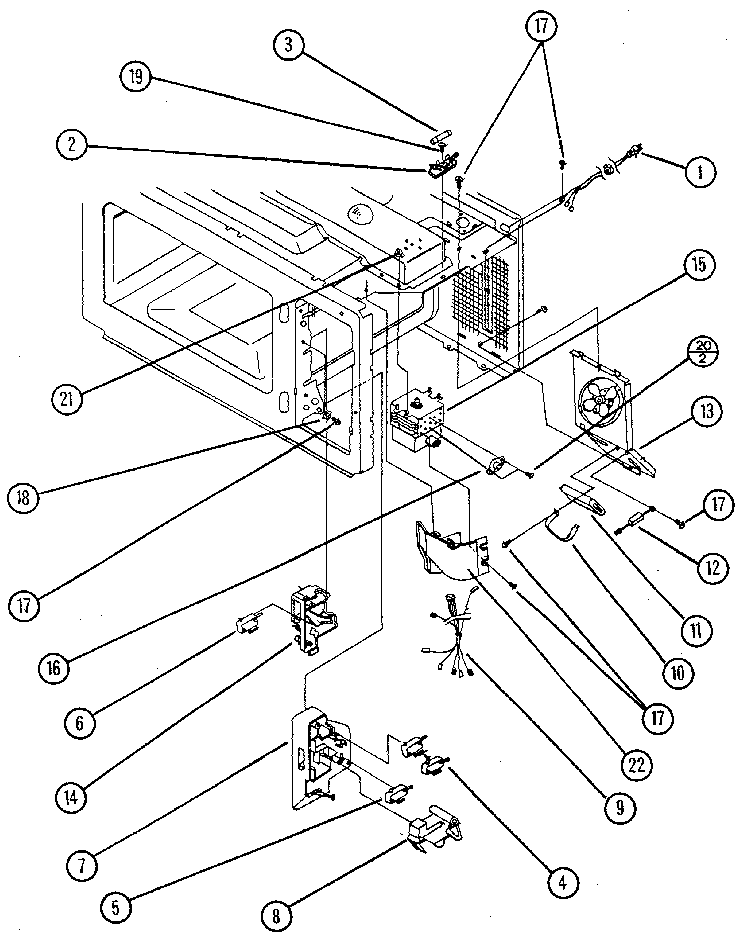

    Magnetron diagram

    Diode

    Part #R0809508

    Replaced by #WP13091701

    Info Icon
    Manufacturer substitution
    This part replaces R0809508. Substitute parts can look different from the original.
    In Stock
    $25.52
    19% OFF Phone Price : $31.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Fuse for Amana M86P - Part R0809507

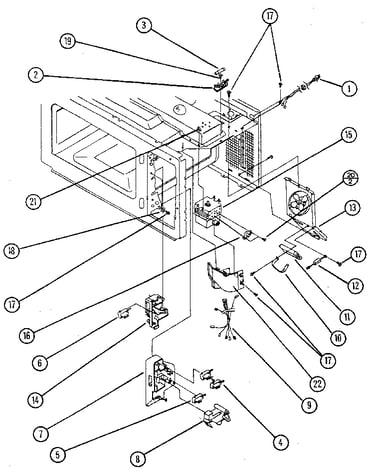

    Magnetron diagram

    Fuse

    Part #R0809507

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor-.8 for Amana M86P - Part 59001651

    Magnetron diagram

    Capacitor

    Part #R0811504

    Replaced by #59001651

    Info Icon
    Manufacturer substitution
    This part replaces R0811504. Substitute parts can look different from the original.
    In Stock
    $95.86
    Minus Item
    Qty
    Plus Item
  • Spacer for Amana M86P - Part R0803558

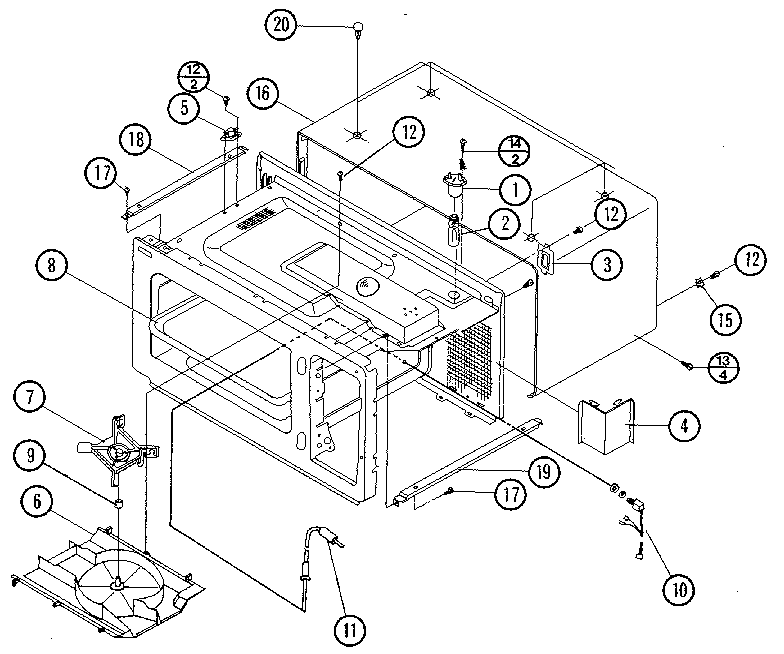

    Cavity diagram

    Spacer

    Part #R0803558

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket for Amana M86P - Part R8065-14

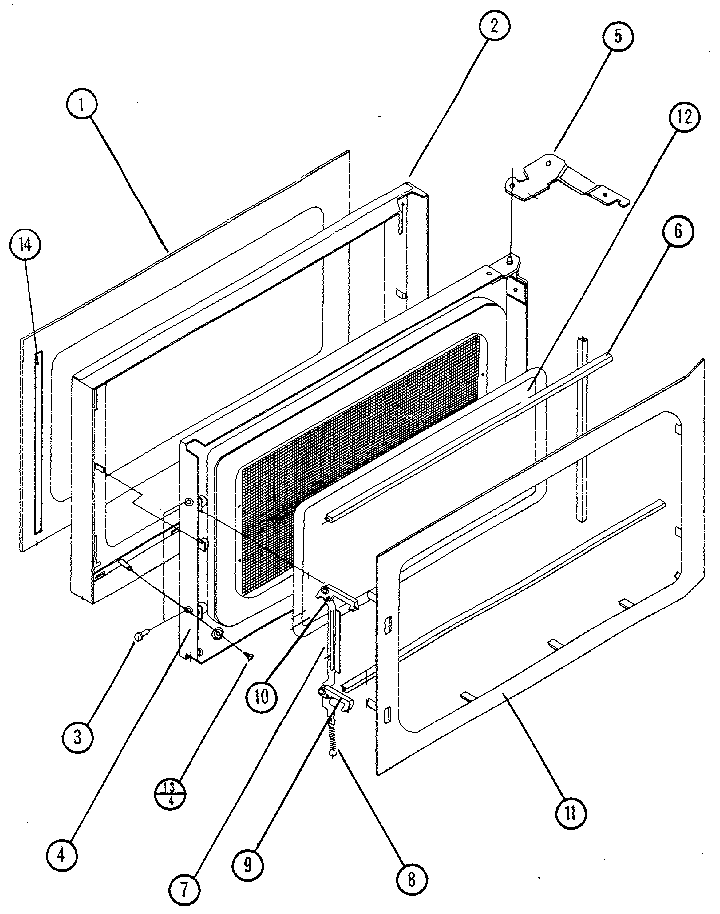

    Door diagram

    Gasket

    Part #R8065-14

    The manufacturer no longer makes this part, and there's no substitute part

  • Outer Clip for Amana M86P - Part R0800066

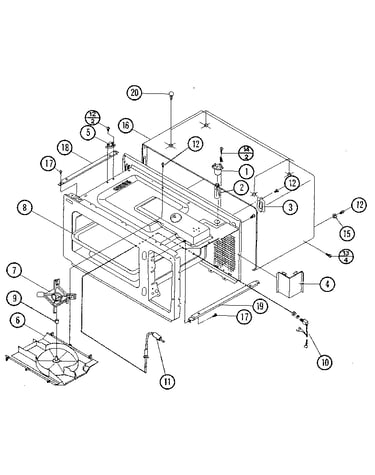

    Cavity diagram

    Outer Clip

    Part #R0800066

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Amana M86P - Part R0800057

    Cavity diagram

    Screw

    Part #R0800057

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Cord for Amana M86P - Part R0805005

    Magnetron diagram

    Power Cord

    Part #R0805005

    The manufacturer no longer makes this part, and there's no substitute part

  • Tape for Amana M86P - Part M0275115

    Door diagram

    Tape

    Part #M0275115

    The manufacturer no longer makes this part, and there's no substitute part

  • Hex Bolt for Amana M86P - Part R8000-54

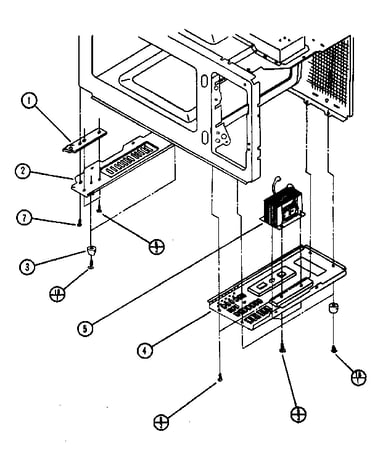

    Base-plate diagram

    Hex Bolt

    Part #R8000-54

    The manufacturer no longer makes this part, and there's no substitute part
