Model # 564504921 Official LXI solid state stereo 8-track tape player with am/fm radio

Here are the diagrams and repair parts for Official LXI 564504921 solid state stereo 8-track tape player with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Flywheel 4-3815
#57

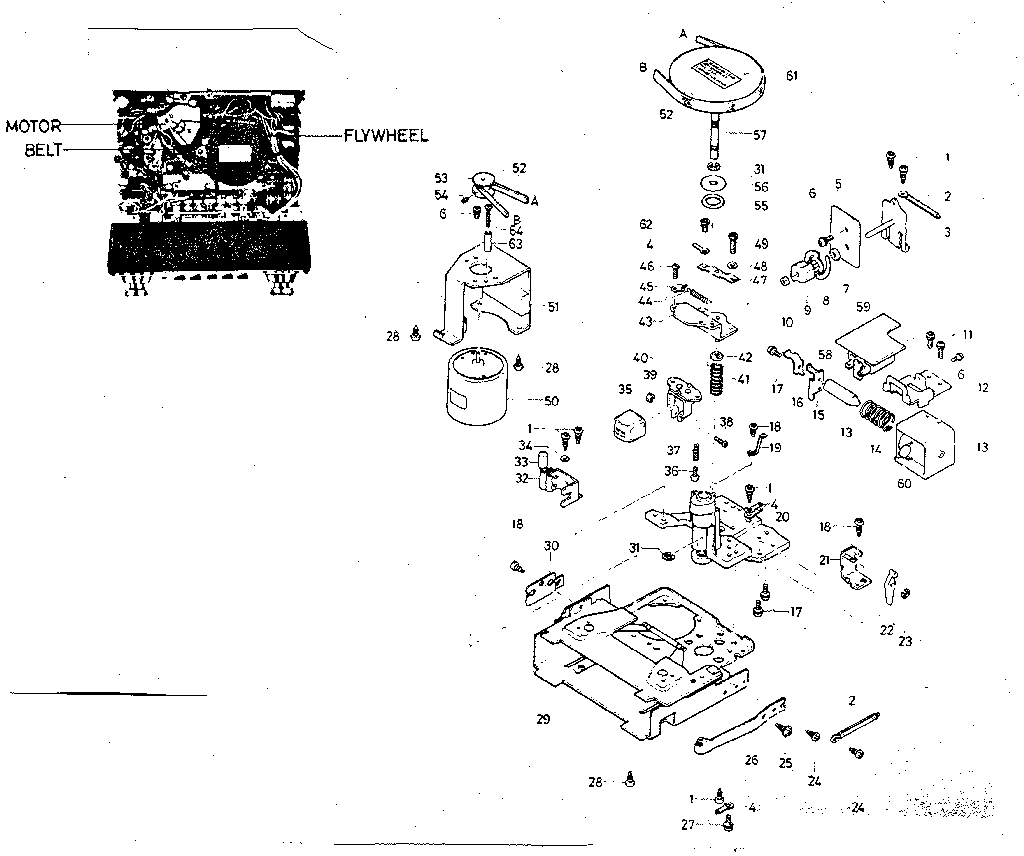

Mechanism diagram

Flywheel

Part #4-3815

The manufacturer no longer makes this part, and there's no substitute part

Pcb Ant 4-4352
#73

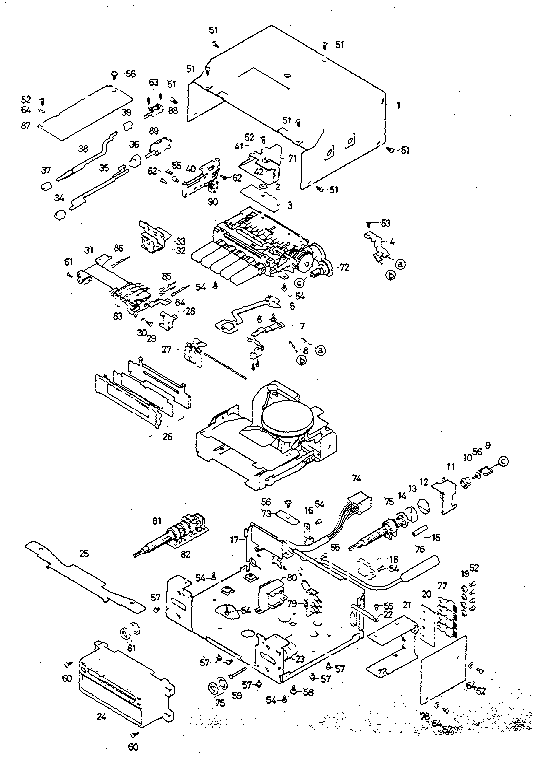

Cabinet & chassis diagram

Pcb ant

Part #4-4352

The manufacturer no longer makes this part, and there's no substitute part

Plate Spring 4-3680
#26

Mechanism diagram

Plate spring

Part #4-3680

The manufacturer no longer makes this part, and there's no substitute part

Rotary Knob 4-3555
#14

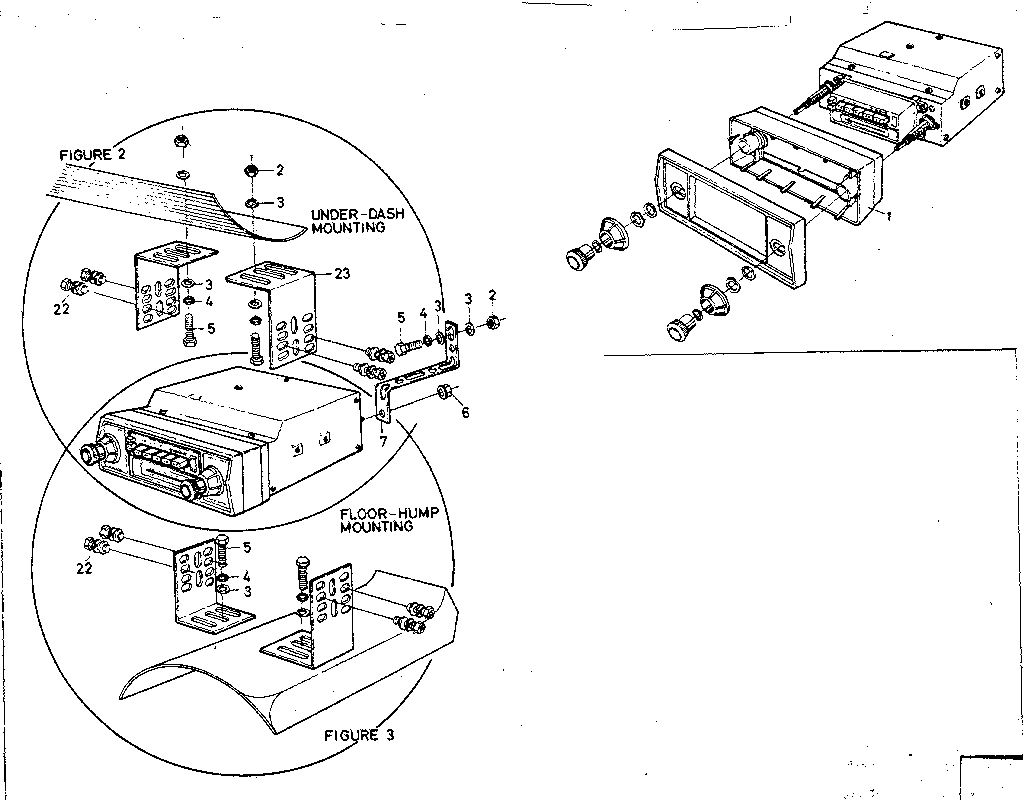

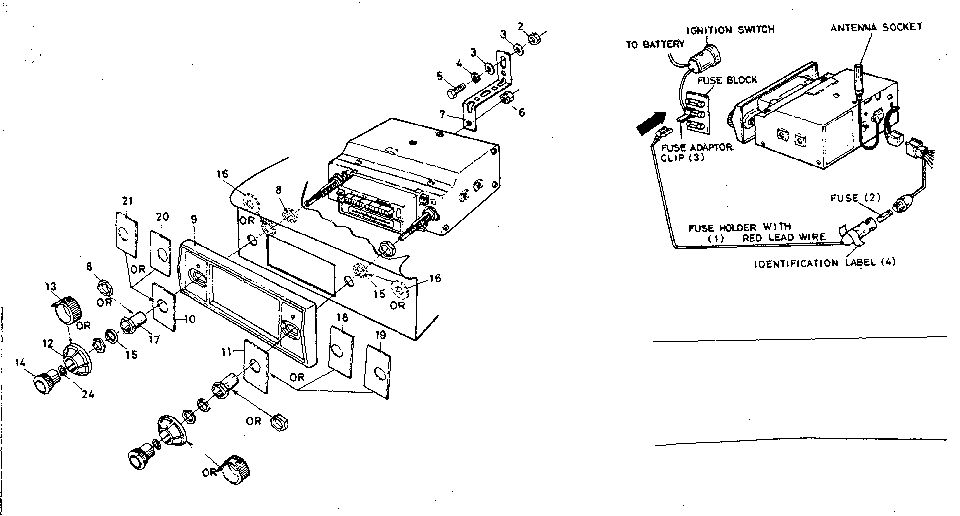

Installation mechanical parts diagram

Rotary knob

Part #4-3555

The manufacturer no longer makes this part, and there's no substitute part

Lever 4-4348
#35

Cabinet & chassis diagram

Lever

Part #4-4348

The manufacturer no longer makes this part, and there's no substitute part

Tape Guide 4-3294
#32

Mechanism diagram

Tape guide

Part #4-3294

The manufacturer no longer makes this part, and there's no substitute part

Ring 4-927
#23

Mechanism diagram

Ring

Part #4-927

The manufacturer no longer makes this part, and there's no substitute part

Plate Tune S 4-4329
#18

Installation mechanical parts diagram

Plate tune s

Part #4-4329

The manufacturer no longer makes this part, and there's no substitute part

Washer 4-3010
#48

Mechanism diagram

Washer

Part #4-3010

The manufacturer no longer makes this part, and there's no substitute part

Solenoid 4-3803
#13

Mechanism diagram

Solenoid

Part #4-3803

The manufacturer no longer makes this part, and there's no substitute part
