Amana GLE160M-R4/P96598-9F gas furnace - gle series

Amana GLE160M-R4/P96598-9F gas furnace - gle series Parts

Here are the diagrams and repair parts for Amana GLE160M-R4/P96598-9F gas furnace - gle series, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GLE160M-R4/P96598-9F Gas Furnace - GLE Series

  • Refrigerator Screw Kit, 2-piece for Amana GLE160M-R4/P96598-9F - Part R9800670

    Screw

    Part #M0211030

    Replaced by #R9800670

    Info Icon
    Manufacturer substitution
    This part replaces M0211030. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.76
    15% OFF Phone Price : $6.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana GLE160M-R4/P96598-9F - Part WP90767

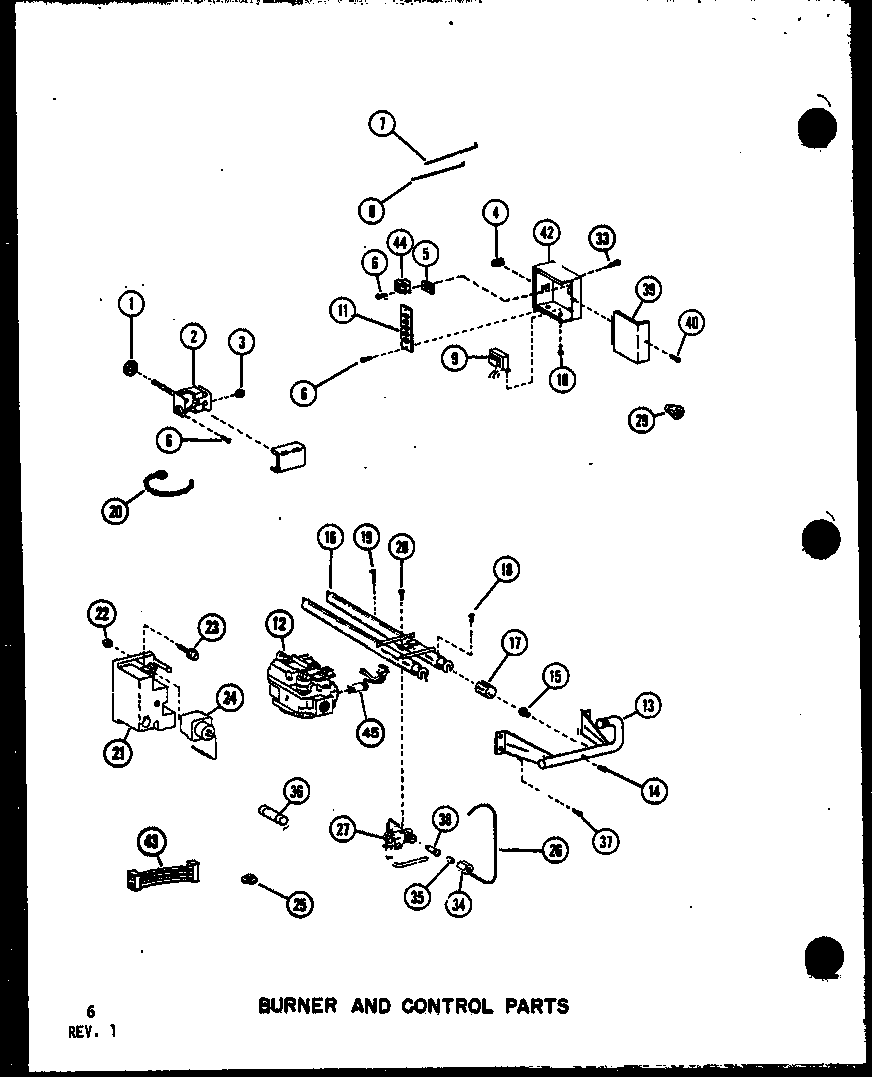

    Burner and control parts diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana GLE160M-R4/P96598-9F - Part WP90767

    Burner and control parts diagram

    Screw

    Part #M0216716

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216716. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Right Side Panel for Amana GLE160M-R4/P96598-9F - Part D9652702

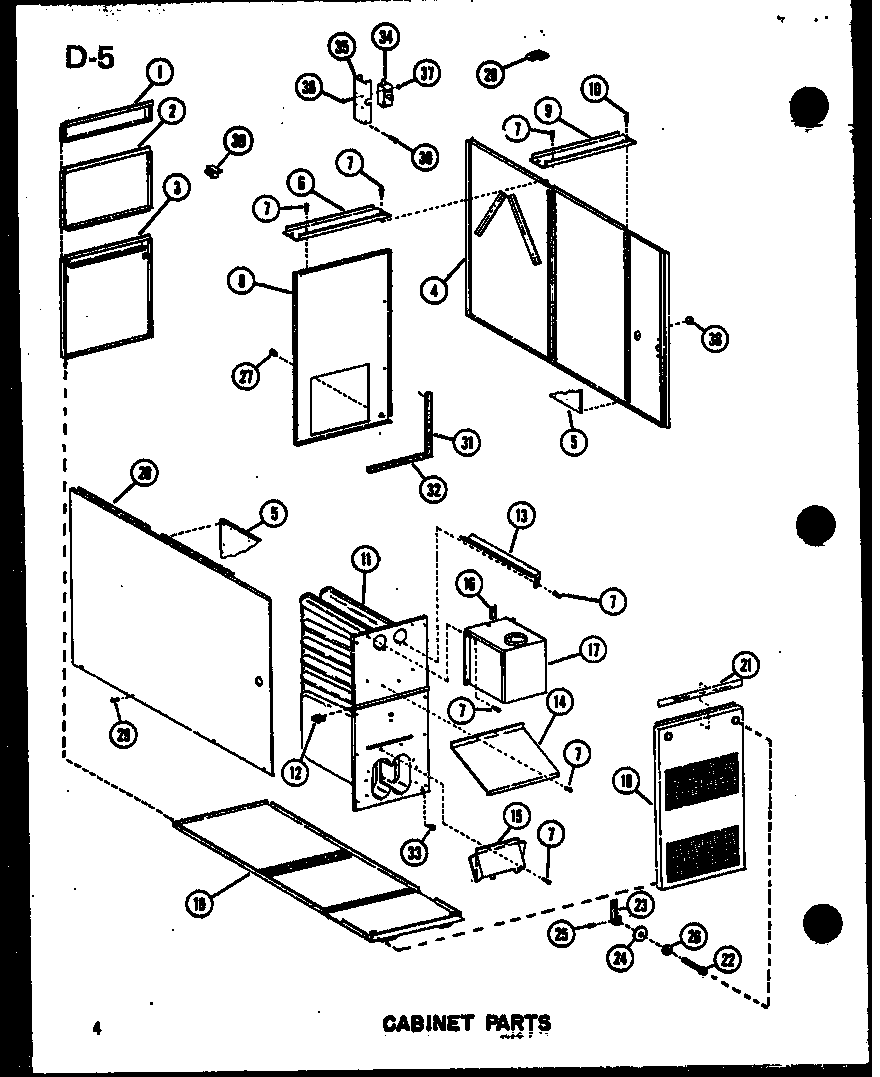

    Cabinet parts diagram

    Right Side Panel

    Part #D9652702

    The manufacturer no longer makes this part, and there's no substitute part

  • Draft Diverter G'sket, Sides 9-31/32" for Amana GLE160M-R4/P96598-9F - Part B9200802

    Cabinet parts diagram

    Draft Diverter G'sket, Sides 9-31/32"

    Part #B9200802

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner, 5 Section for Amana GLE160M-R4/P96598-9F - Part C9460605

    Burner and control parts diagram

    Burner, 5 Section

    Part #C9460605

    The manufacturer no longer makes this part, and there's no substitute part

  • Hood, Top Blower for Amana GLE160M-R4/P96598-9F - Part C9461301

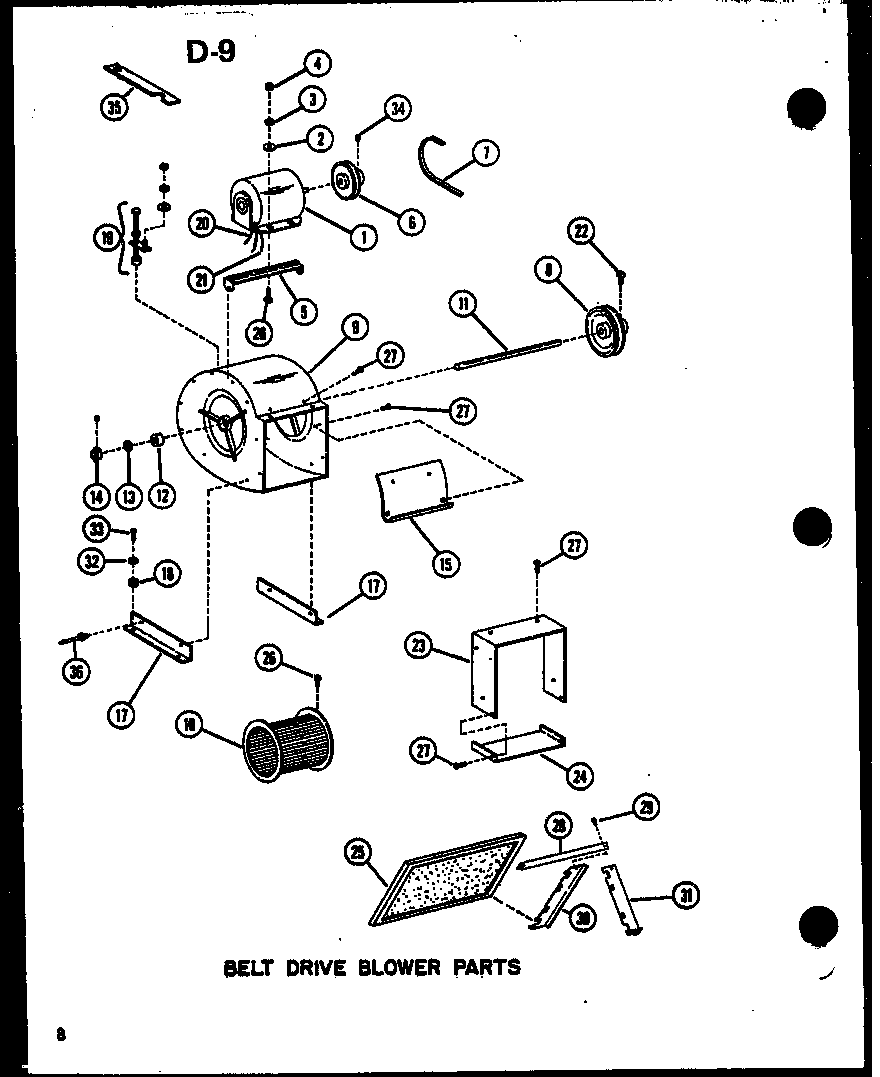

    Belt drive blower parts diagram

    Hood, Top Blower

    Part #C9461301

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Cut-off 5713015 for Amana GLE160M-R4/P96598-9F - Part M0805004

    Belt drive blower parts diagram

    Blower Cut-off 5713015

    Part #M0805004

    The manufacturer no longer makes this part, and there's no substitute part

  • Felt, Top And Bottom for Amana GLE160M-R4/P96598-9F - Part A9003235

    Cabinet parts diagram

    Felt, Top And Bottom

    Part #A9003235

    The manufacturer no longer makes this part, and there's no substitute part

  • Orifice - L.p. Gas #51 Drill for Amana GLE160M-R4/P96598-9F - Part M0755605

    Burner and control parts diagram

    Orifice - L.p. Gas #51 Drill

    Part #M0755605

    The manufacturer no longer makes this part, and there's no substitute part
