Model # 143031101 Official Craftsman engine
Here are the diagrams and repair parts for Official Craftsman 143031101 engine, as well as links to manuals and error code tables, if available.
By Schematic
By Part

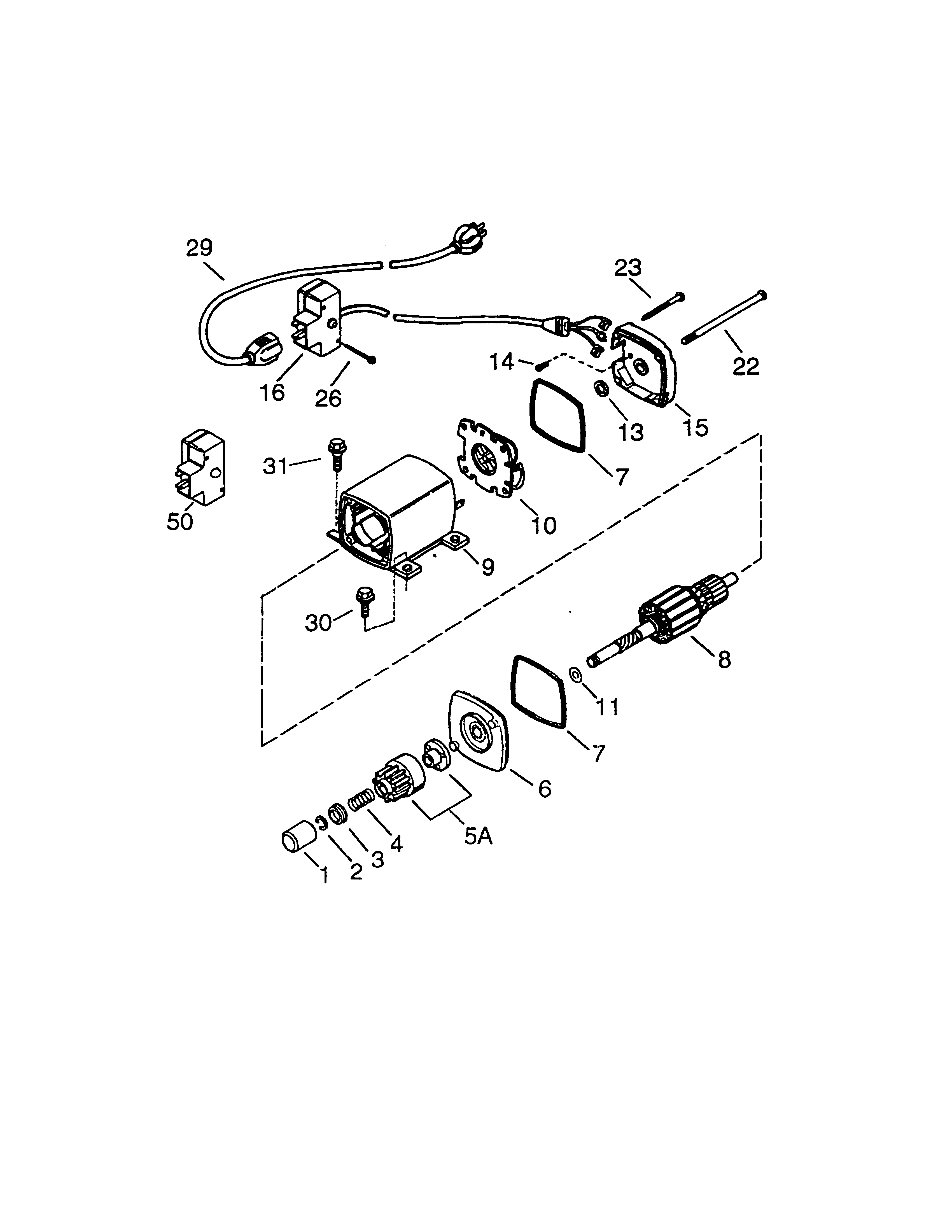

SELECT DIAGRAM
Browse Parts for
143031101 Engine
#44

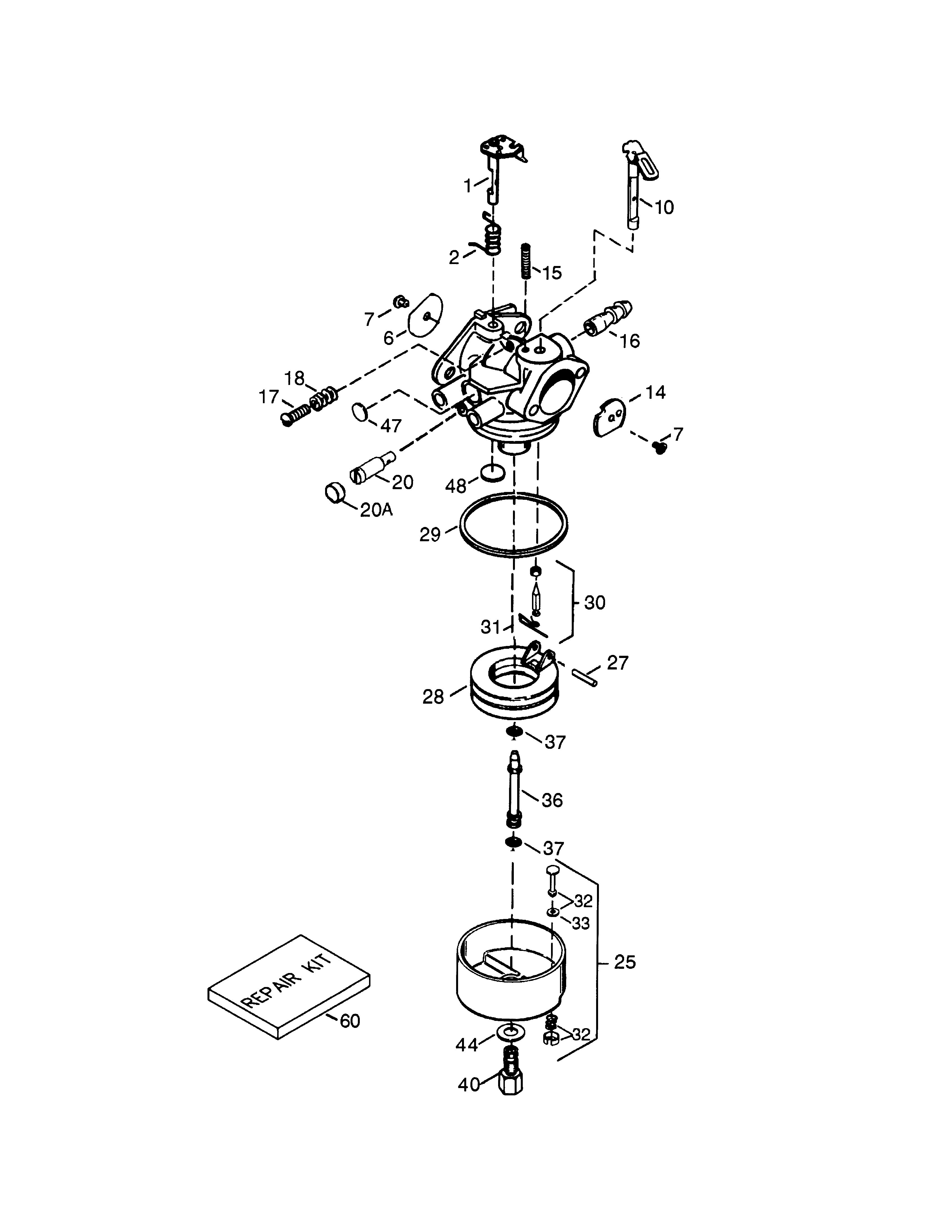

Carburetor diagram
Craftsman lawn & garden equipment engine carburetor float bowl washer (replaces 49-084)
Part #27110A
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#12

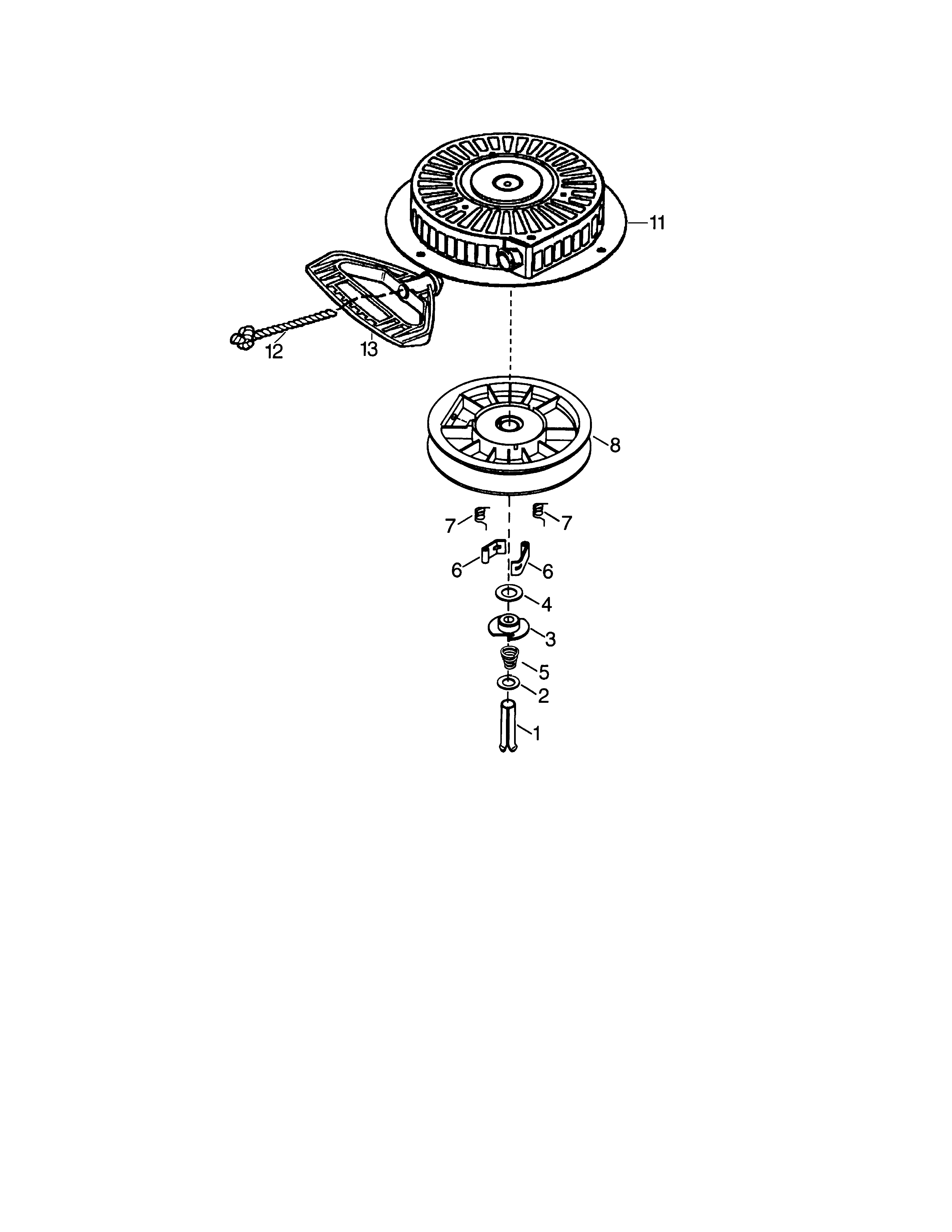

Rewind starter diagram
Craftsman lawn & garden equipment engine recoil starter rope, 98-in
Part #590535
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#350

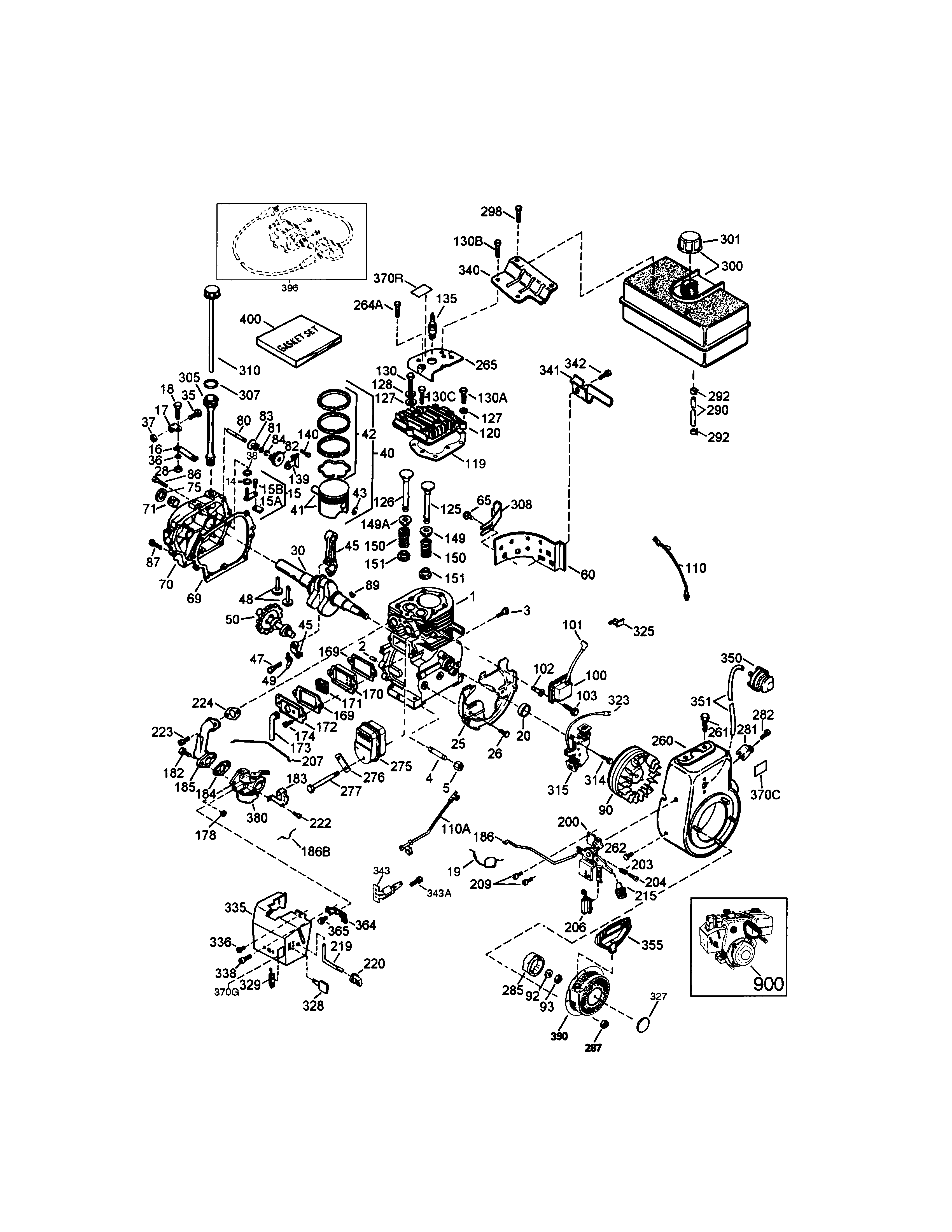

4-cycle engine diagram
Craftsman lawn & garden equipment engine carburetor primer assembly
Part #570682A
$11.79 |
15% OFF Phone Price : $13.79
In Stock
#292
4-cycle engine diagram
Troybilt lawn & garden equipment engine fuel line clamp
Part #26460
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#301
4-cycle engine diagram
Lawn & garden equipment engine fuel tank cap
Part #35355
Replaced by #37845
?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
#171
4-cycle engine diagram
Craftsman lawn & garden equipment engine air filter
Part #28424
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
#215
4-cycle engine diagram
Craftsman lawn & garden equipment engine throttle control knob
Part #35440
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
#28
Carburetor diagram
Float
Part #632019
Replaced by #632019A
?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
#307
4-cycle engine diagram
Craftsman lawn & garden equipment o-ring
Part #35499
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#184
4-cycle engine diagram
Craftsman lawn & garden equipment engine carburetor manifold gasket
Part #33263
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
