Model # SLT-A55VL Official Sony digital camera

Here are the diagrams and repair parts for Official Sony SLT-A55VL digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

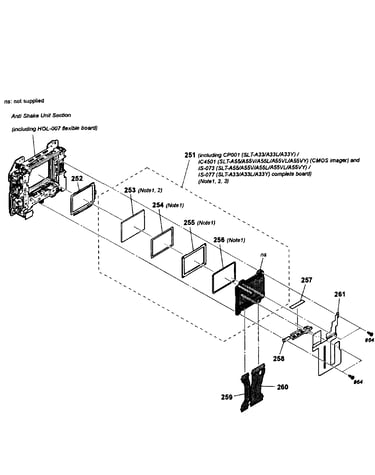

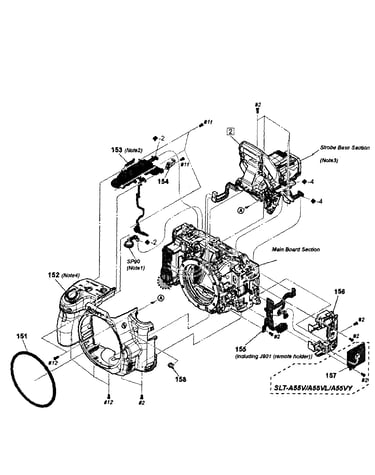

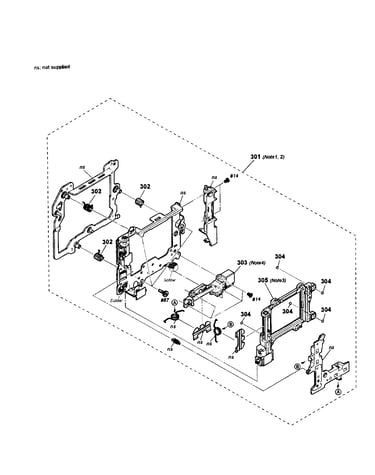

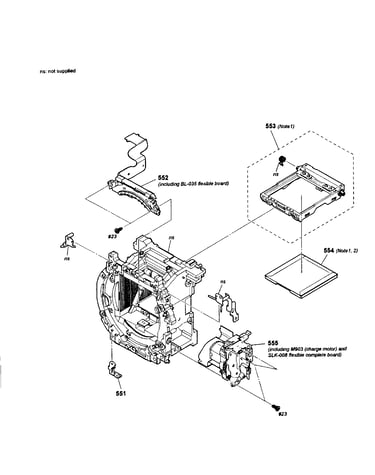

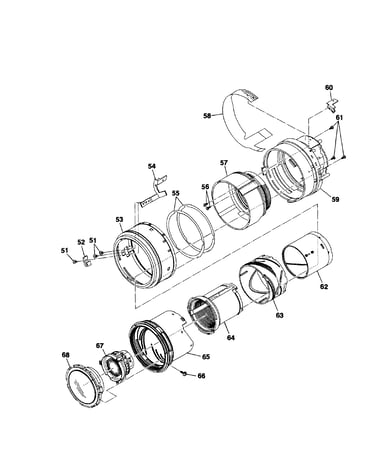

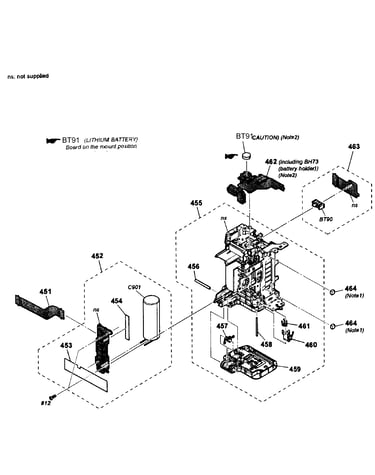

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Cv Lcd Hin 419230501
#102

Lcd assy diagram

Cv lcd hin

Part #419230501

$91.26
In Stock
Lens Cap,r 268361501
#NI

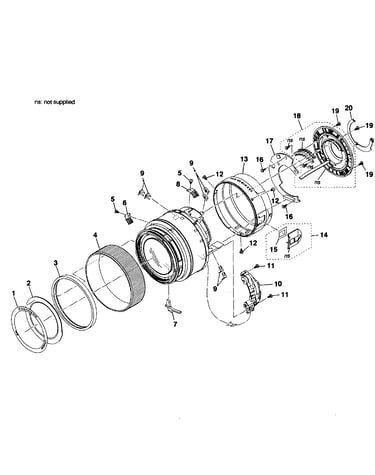

Lens 1 diagram

Lens cap,r

Part #268361501

$28.11
In Stock
Cv Jack Co 419221301
#62

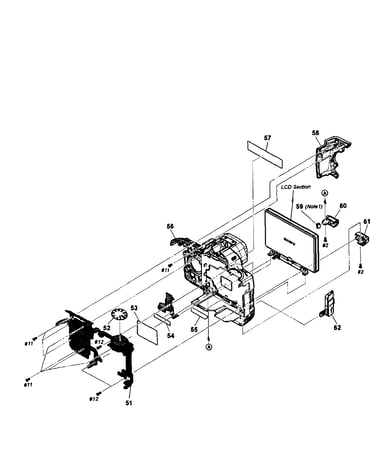

Rear cover diagram

Cv jack co

Part #419221301

$14.73
In Stock
Pcb Shm001 A1783998A
#367

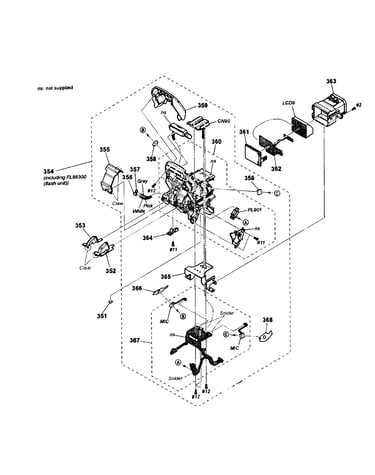

Strobe base diagram

Pcb shm001

Part #A1783998A

$45.49
In Stock
Shoulder S 419666001
#NI

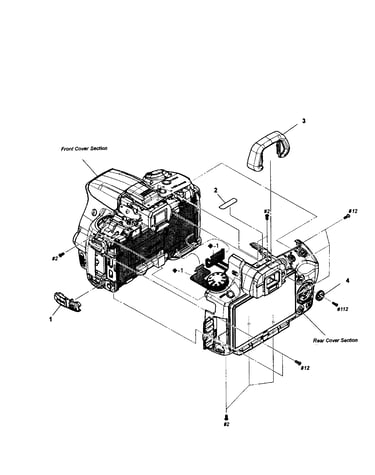

Main assy diagram

Shoulder s

Part #419666001

$18.74
In Stock
Ring Roller Shaft 326895101
#509

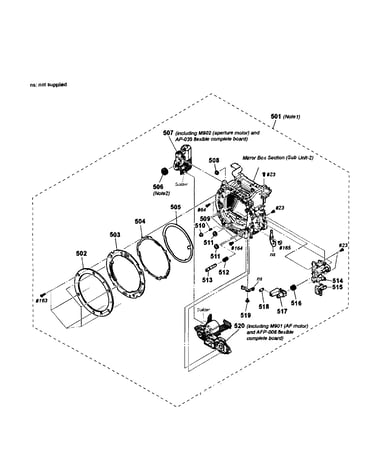

Mirror box 1 diagram

Ring roller shaft

Part #326895101

This item is not returnable
$6.49
In Stock
Bd Am Radi 419453301
#208

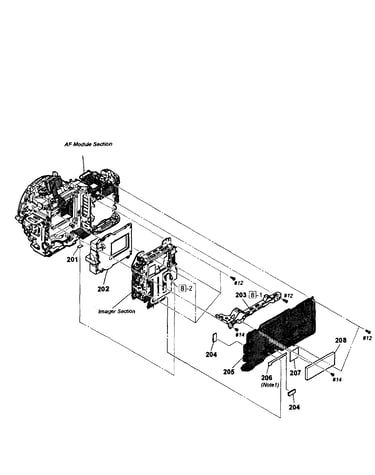

Main pcb diagram

Bd am radi

Part #419453301

$14.61
In Stock
Frame X25484801
#401

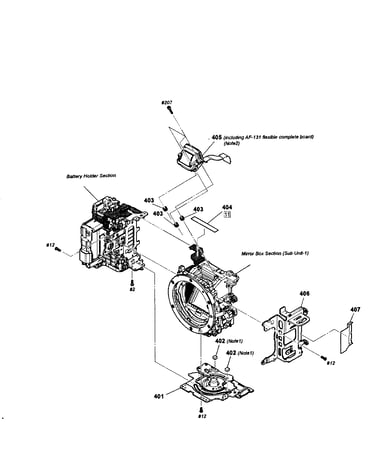

Af module diagram

Frame

Part #X25484801

$14.61
In Stock
Shd-002 Pc 188123521
#106

Lcd assy diagram

Shd-002 pc

Part #188123521

$16.30
In Stock
Cushion 419765202
#204

Main pcb diagram

Cushion

Part #419765202

This item is not returnable
$3.51
In Stock
