Jenn-Air JMC6224HL0 microwave, built-in, convection, 24 inch Parts

Here are the diagrams and repair parts for Jenn-Air JMC6224HL0 microwave, built-in, convection, 24 inch, as well as links to manuals and error code tables, if available.

Jenn-Air JMC6224HL0 microwave, built-in, convection, 24 inch
By Schematic

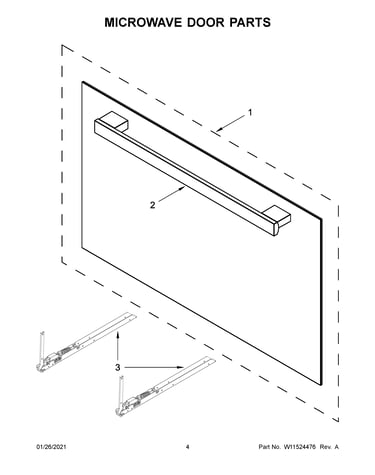

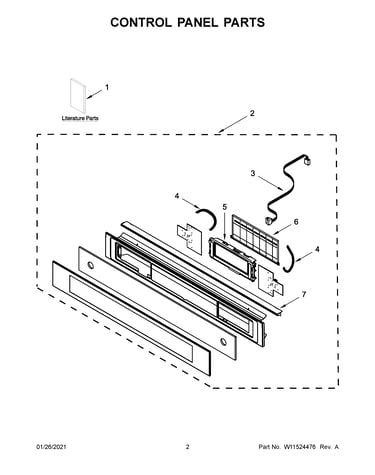

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMC6224HL0 Microwaves

  • Humidity Sen for Jenn-Air JMC6224HL0 - Part W11699906

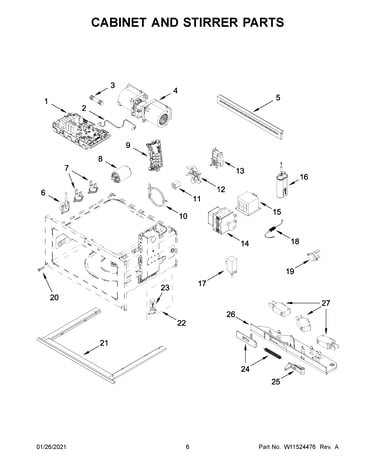

    Cabinet and stirrer parts diagram

    Humidity Sensor

    Part #W10460457

    Replaced by #W11699906

    Info Icon
    Manufacturer substitution
    This part replaces W10460457. Substitute parts can look different from the original.
    In Stock
    $127.89
    Minus Item
    Qty
    Plus Item
  • Nut for Jenn-Air JMC6224HL0 - Part W11237447

    Cabinet and stirrer parts diagram

    Fc Motor Nut

    Part #W11101380

    Replaced by #W11237447

    Info Icon
    Manufacturer substitution
    This part replaces W11101380. Substitute parts can look different from the original.
    In Stock
    $38.43
    Minus Item
    Qty
    Plus Item
  • Diode Hv for Jenn-Air JMC6224HL0 - Part W11512058

    Cabinet and stirrer parts diagram

    Diode Hv

    Part #W11510577

    Replaced by #W11512058

    Info Icon
    Manufacturer substitution
    This part replaces W11510577. Substitute parts can look different from the original.
    In Stock
    $43.47
    Minus Item
    Qty
    Plus Item
  • Power Board for Jenn-Air JMC6224HL0 - Part W11784240

    Cabinet and stirrer parts diagram

    Manager, Appliance

    Part #W11510569

    Replaced by #W11784240

    Info Icon
    Manufacturer substitution
    This part replaces W11510569. Substitute parts can look different from the original.
    In Stock
    $408.82
    Minus Item
    Qty
    Plus Item
  • Bottom Profi for Jenn-Air JMC6224HL0 - Part W11511999

    Cabinet and stirrer parts diagram

    Bottom Profi

    Part #W10807426

    Replaced by #W11511999

    Info Icon
    Manufacturer substitution
    This part replaces W10807426. Substitute parts can look different from the original.
    In Stock
    $100.14
    Minus Item
    Qty
    Plus Item
  • Cover Plate for Jenn-Air JMC6224HL0 - Part W11512486

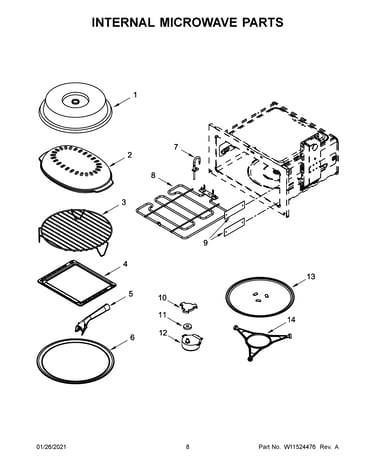

    Internal microwave parts diagram

    Cover Plate

    Part #W11510584

    Replaced by #W11512486

    Info Icon
    Manufacturer substitution
    This part replaces W11510584. Substitute parts can look different from the original.
    In Stock
    $36.36
    Minus Item
    Qty
    Plus Item
  • Pot Steamer for Jenn-Air JMC6224HL0 - Part W11654017

    Internal microwave parts diagram

    Pot Steamer

    Part #W11510586

    Replaced by #W11654017

    Info Icon
    Manufacturer substitution
    This part replaces W11510586. Substitute parts can look different from the original.
    In Stock
    $66.98
    Minus Item
    Qty
    Plus Item
  • Spider (turn for Jenn-Air JMC6224HL0 - Part W11512454

    Internal microwave parts diagram

    Spider (turn

    Part #W11510706

    Replaced by #W11512454

    Info Icon
    Manufacturer substitution
    This part replaces W11510706. Substitute parts can look different from the original.
    In Stock
    $41.98
    Minus Item
    Qty
    Plus Item
  • Fan Assy Ohs for Jenn-Air JMC6224HL0 - Part W11512060

    Cabinet and stirrer parts diagram

    Fan Assy Ohs

    Part #W11190310

    Replaced by #W11512060

    Info Icon
    Manufacturer substitution
    This part replaces W11190310. Substitute parts can look different from the original.
    In Stock
    $216.83
    Minus Item
    Qty
    Plus Item
  • Grid 348 Ph for Jenn-Air JMC6224HL0 - Part W11512487

    Internal microwave parts diagram

    Grid 348 Ph

    Part #W11026447

    Replaced by #W11512487

    Info Icon
    Manufacturer substitution
    This part replaces W11026447. Substitute parts can look different from the original.
    In Stock
    $48.55
    Minus Item
    Qty
    Plus Item
